Quadra-Fire Classic Bay CB 1200 Ash Pan does not slide in or pull out easily! Very hard to do!

Discussion in 'Pellet Stoves, Pellet Fireplaces, Pellet Furnaces' started by don2222, May 21, 2023.

  1. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    3,438
    Likes Received:
    4,874
    Location:
    Salem NH
    Hello
    This Aladdin Quad CB1200 is tough but it is a good learning stove! LOL
    The nice large ash pan was just way to hard to pull out and push back in!
    2 reasons why!
    1. The bottom was bowed out. - banged that back in with a rubber hammer!
    2. Now it slides in easily except the last 1/4” is way to hard! The ash pan opening on the right side was 1/8” lass than on the left side!! A Harbor Freight Hydraulic Frame Repair Kit might be the tool of choice but that costs a few dollars.
    https://www.harborfreight.com/4-ton-portable-hydraulic-equipment-kit-58204.html
    What about a Hydraulic floor Jack?
    I had to take the wheels of and I just got it in there on the right side!
    Just a few cranks and I could here a big squeak of the metal straightening back into form!
    Has anyone else seen this problem??
    It worked!!

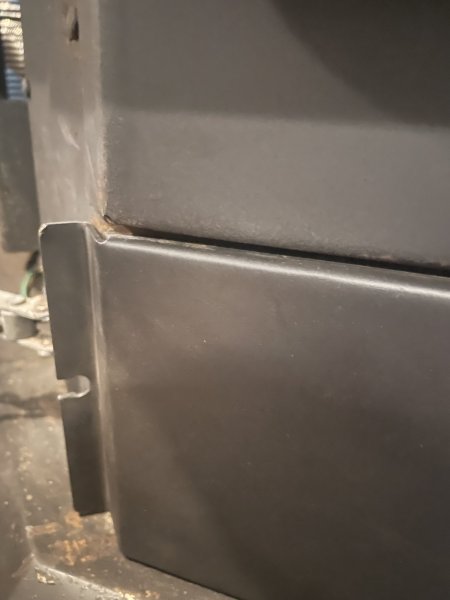

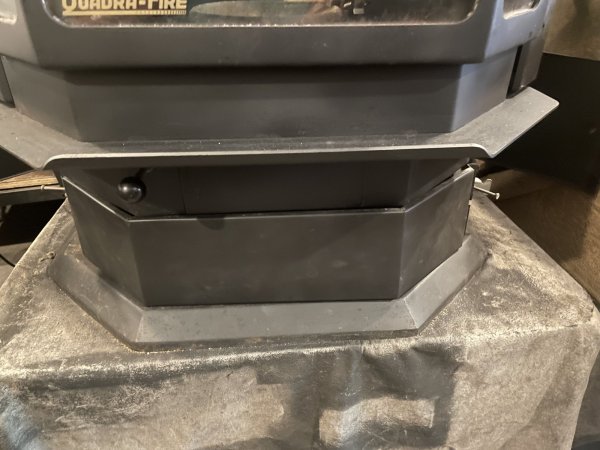

    Pic 1 - Ash pan not going in all the way

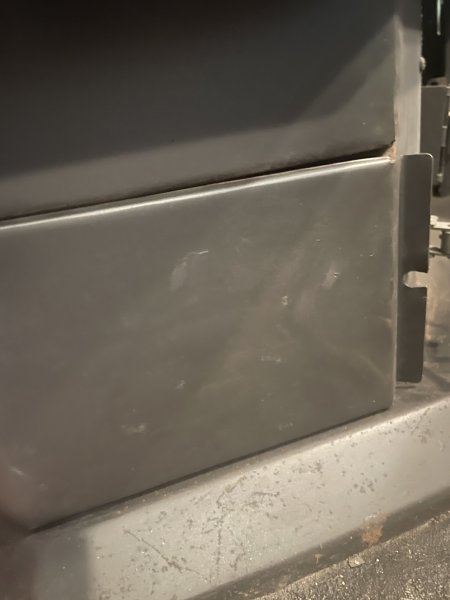

    Pic 2 - Left side shows room to push the ash pan in.

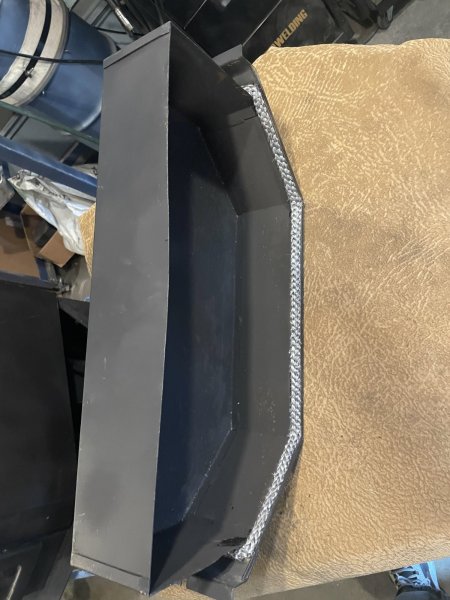

    Pic 3 - shows no room to easily slide the ash pan in. The clasps can pull it in when latched but then it is very hard to pull the ash pan out after it is unlatched!

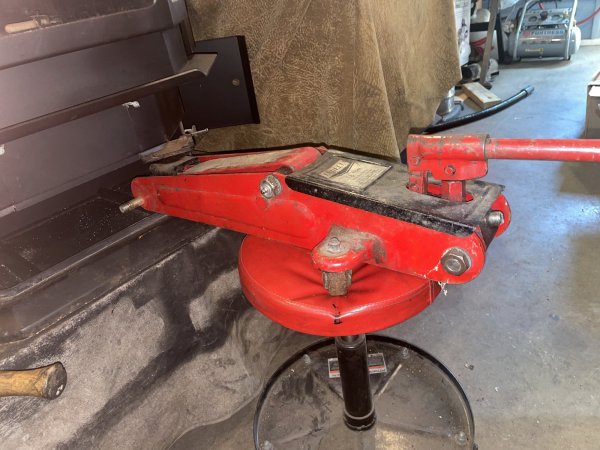

    Pic 4 - No front wheels Red Neck Frame Straightener!

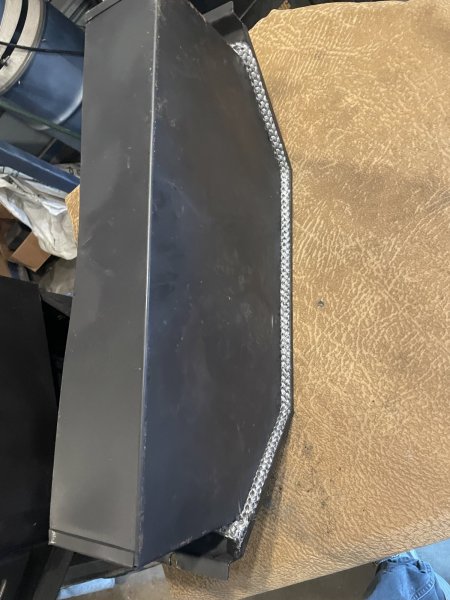

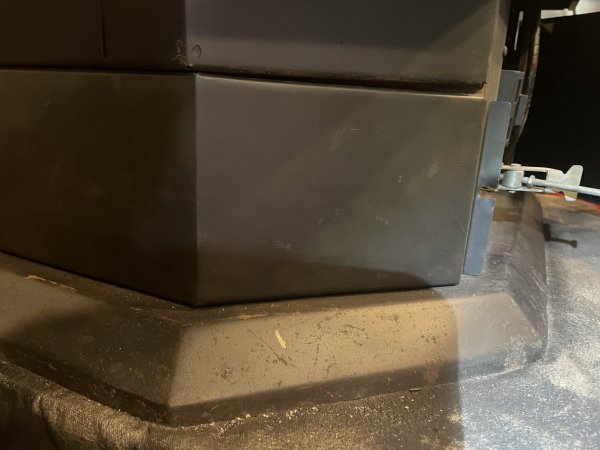

    Pic 5 - Right side has room now and the whole ash pan slides in easily!!


    Attached Files:

    Last edited: May 21, 2023
    don2222, May 21, 2023
    #1 Top
    BHags likes this.
  2. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    3,438
    Likes Received:
    4,874
    Location:
    Salem NH
    Hello
    Still I was a little skeptical of this kind of fix to the frame for the ash pan. Therefore I left the ash pan out all night and tried it again this morning. Sure enough it slide right in. Now I replaced the broken brittle foam gasket with a nice 1/2” graphite impregnated round rope gasket for a really good seal!!

    Hear are a few more CB1200 fixes! :)
    Air wash clean & paint fix
    Quadrafire CB 1200 Classic Bay Air Wash?
    Center Fire Box baffle fix
    Quadrafire Aladdin-Fixing the Center Baffle in the fire Box?
    Warped center baffle fix
    Aladdin Quadrafire classic Bay fire box center baffle warped around pellet drop chute
    Broken heat exchanger tube
    Weld broke on the Aladdin & heat exchanger tube fell in with smoke pouring out! Now what?
    Difference between Aladdin & HHT CB1200 Classic Bay
    What is the difference between an Aladdin CB1200 & Quadrafire / HHT CB1200


    Attached Files:

    don2222, May 22, 2023
