Weld broke on the Aladdin & heat exchanger tube fell in with smoke pouring out! Now what?

Discussion in 'Pellet Stoves, Pellet Fireplaces, Pellet Furnaces' started by don2222, Feb 19, 2023.

  1. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    3,262
    Likes Received:
    4,419
    Location:
    Salem NH
    Hello
    Is this trash or treasure?
    This is a 2/1997 Quadra-Fire serial # 350513
    The heat exchanger tubes are solid steel and in good shape. However the weld on the 1st tube on the left in the right bank broke so the tube fell into the heat box on top of the fire box where the heat from the fire warms the air in the tubes that blows out the front.
    This problem was not easy because even though the curved part of the tube that pushes the hot air straight out the front pulled out easily, I could not get the heavy heat tube in the firebox pushed back into the heat box hole to weld it back together!
    The first step, I went to Harbor Freight and purchased a Pneumatic Air grinder with 3” extension and a good set of carbide grinding bits.
    Then I wire wheeled the end of the tube and used the new grinding bit to clean and grind a bit so the the tube easily pushed back into the firebox hole.
    The only trick was, I had to rotate the tube a bit so it would push back on. It is not perfectly round I guess after 26 years! Lol
    Now just some Mig welding and it should be good?
    Has anyone else had this problem??

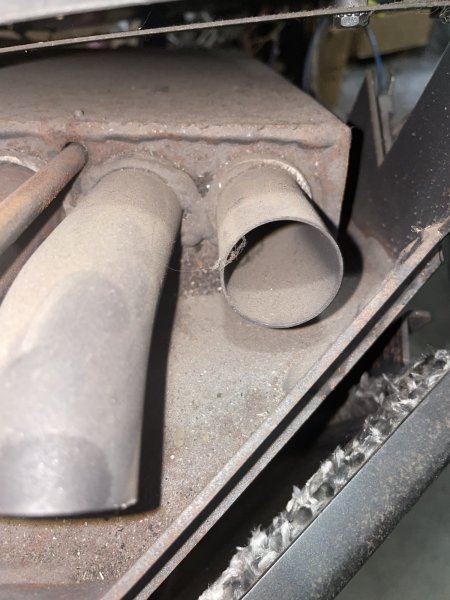

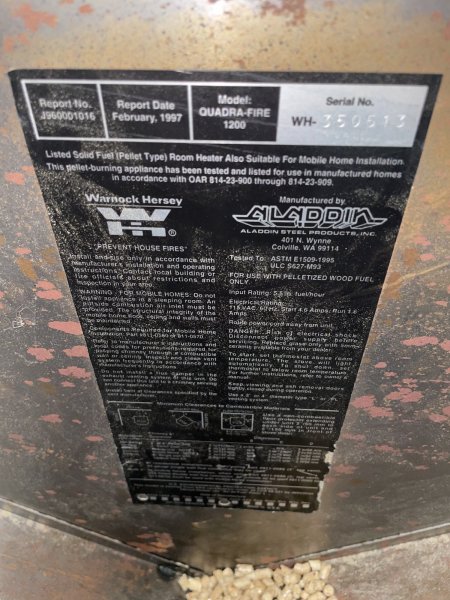

    Pic 1 - Stove model

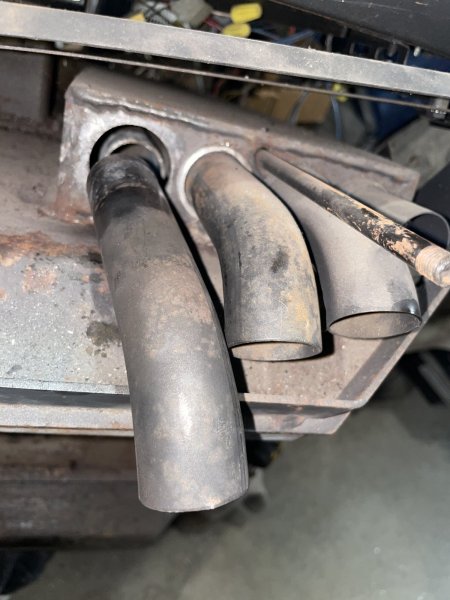

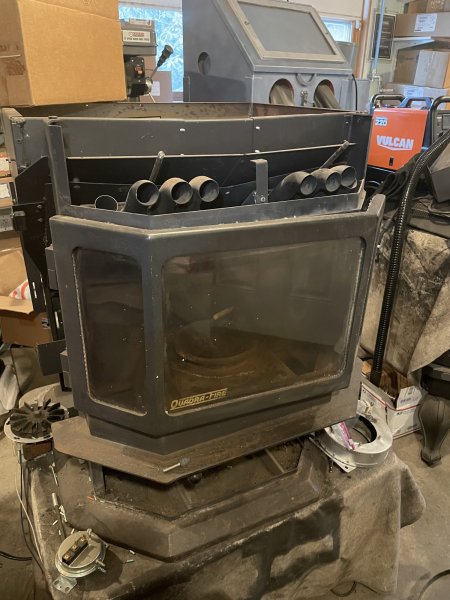

    Pic 2 - Broken heat tube

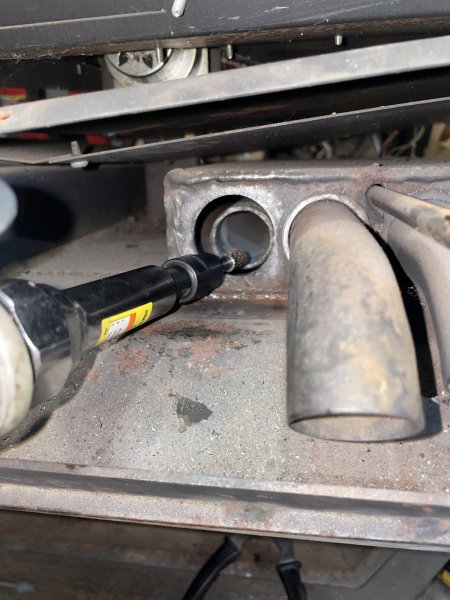

    Pic 3 - Cannot get tube back thru heat box hole!

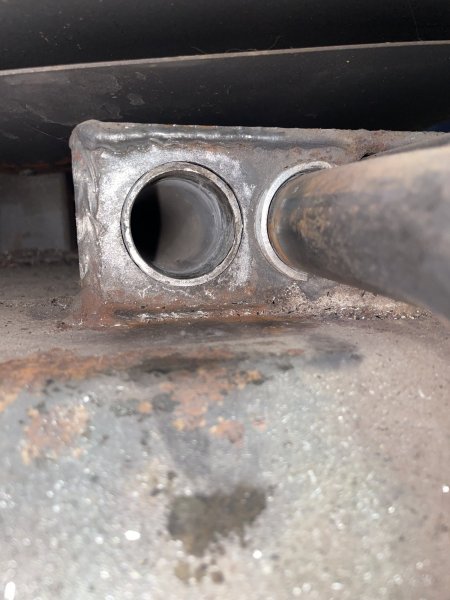

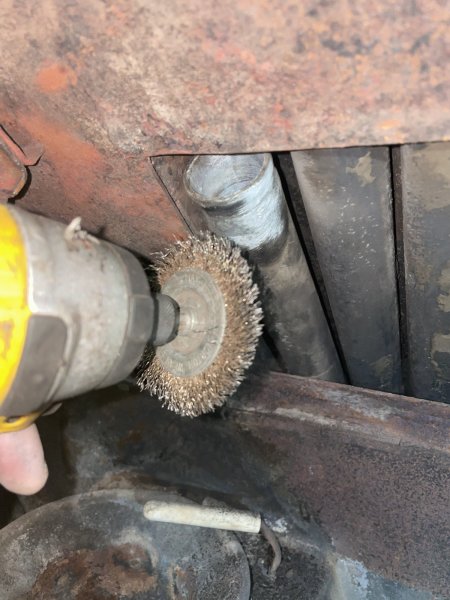

    Pic 4 - wire wheel ash

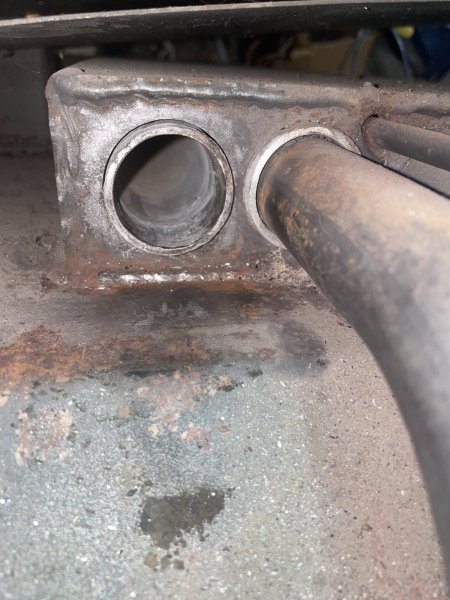

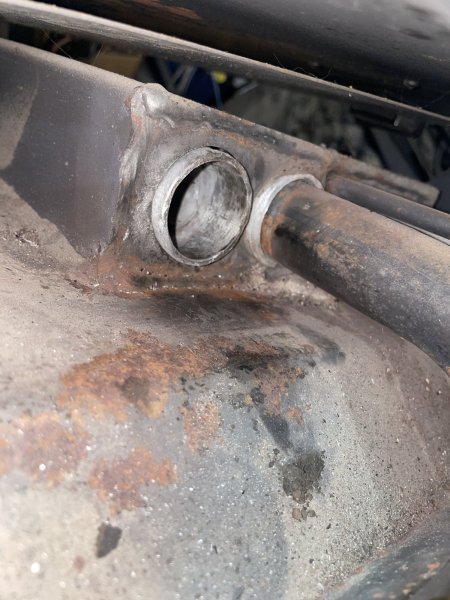

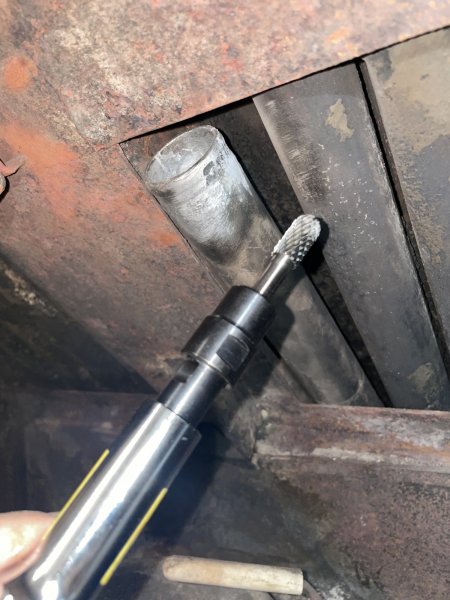

    Pic 5 & 6 - use new die grinder and carbide grinding bit

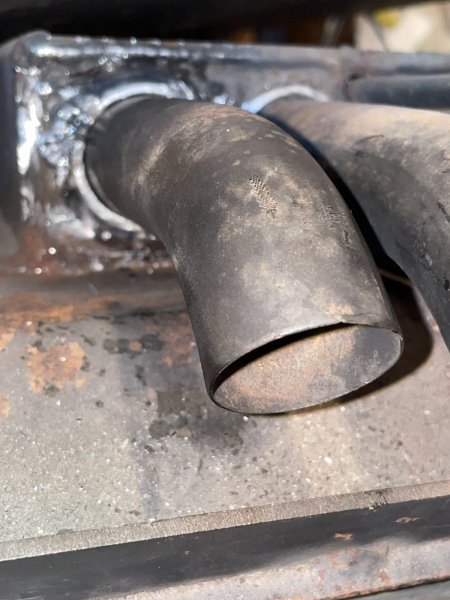

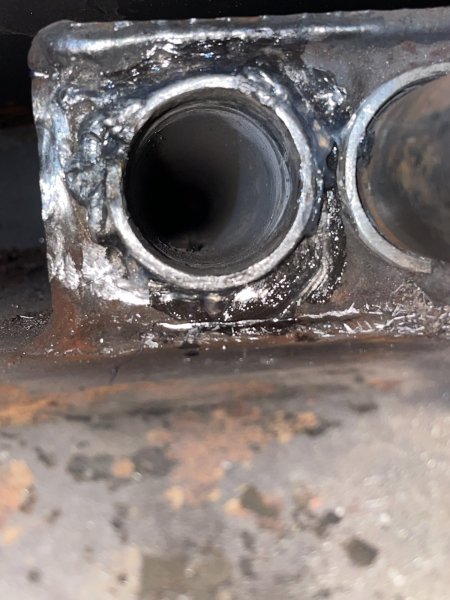

    Pic 7 - Got it through the fire box hole and ready for a little Mig Welding :)

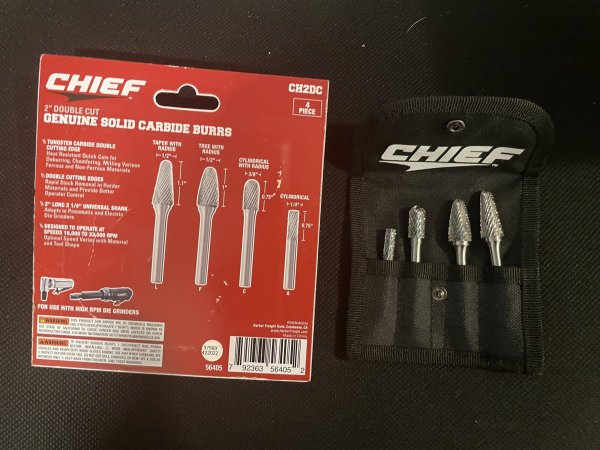

    Pic 8 & 9 - New pneumatic air grinder & carbide grinding bits with storage pouch!
