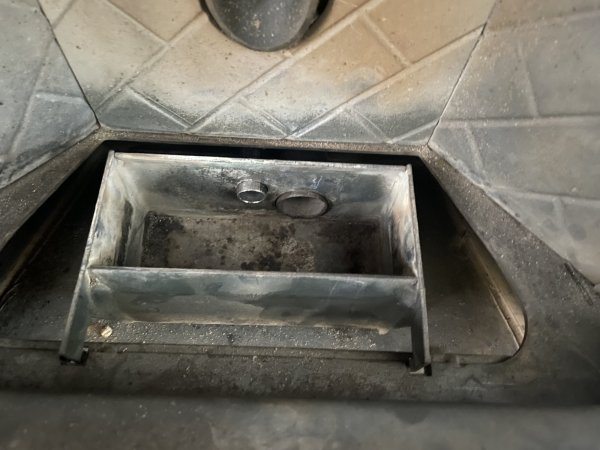

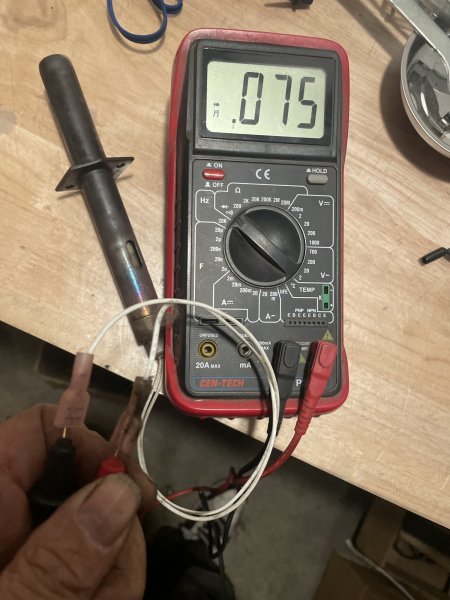

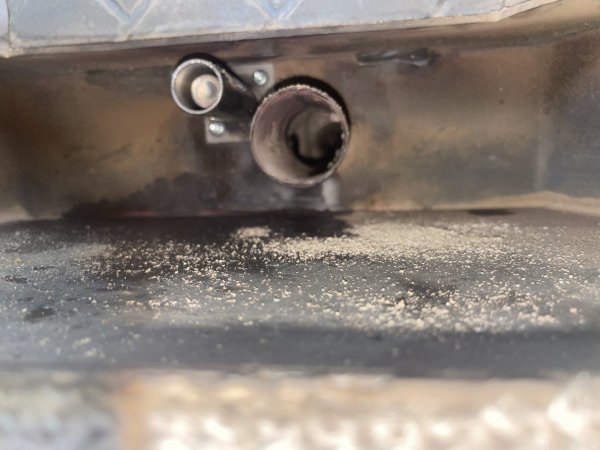

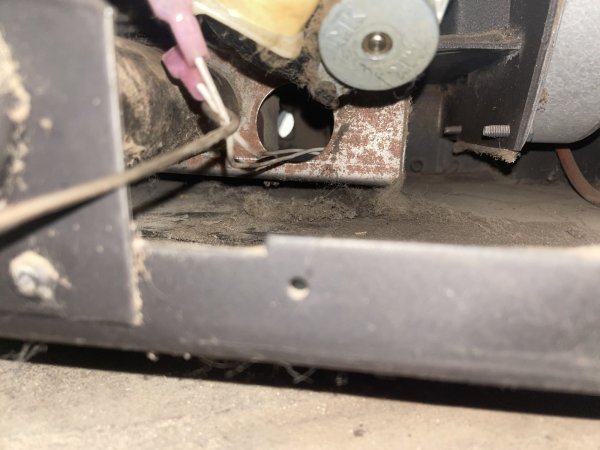

Hello I have not done this in a while but similar to the EF2 where the igniter element comes inside the igniter tube with a flange that screws to the inside back wall of the fire box. Luckily after wire wheeling the T-20 torx screws and spraying them with PB Blaster they came out quite easily. Then after spray the new screws with dry moly to keep them from getting stuck, installing the new igniter was a bit tricky. That is because the wires not only go into the hole in the back wall of the firebox but they end up inside the air inlet box to the burnpot! There is a large hole in the air inlet box in back of this stove but is offset to the left. Therefore I had a short piece of coat hanger where I could feed it into the small hole in the front and out the big hole in the back and then clip the wires in. Bingo! See pics below. A good igniter reads 50 ohms. Looks like the igniter shorted out.
Nice work Don. That looks like a challenging replacement. Makes one wonder if they ever think that people will need to service the unit down the road when they design it…

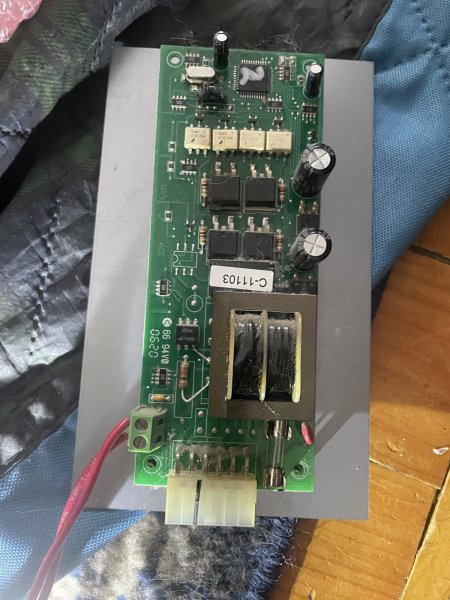

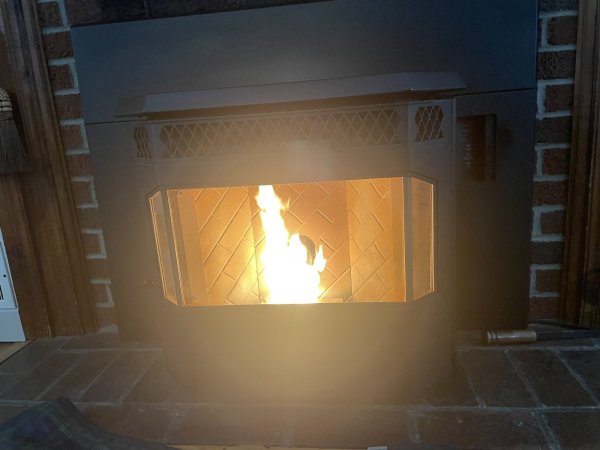

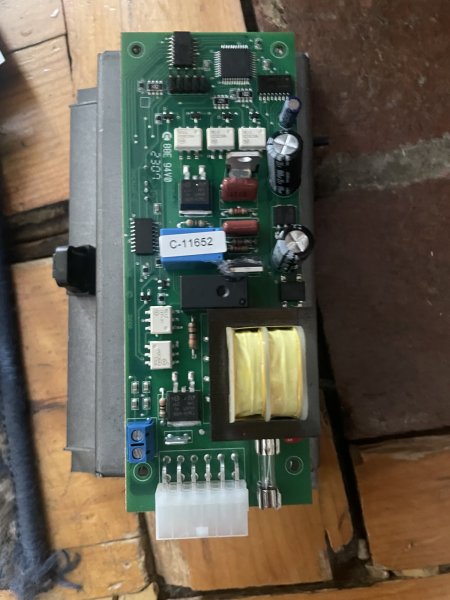

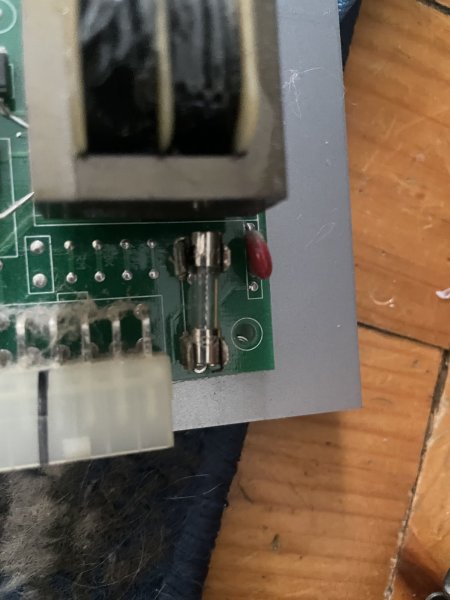

Hello There is another issue this igniter caused! In the last picture in the post shows the old igniter shorted and one of the igniter wire connectors in the stove has a small burn mark. Therefore when the new igniter was installed, it did not work at all! The control panel is the original panel and even though the decal was broken it was lighting up automatically just fine before the igniter died. Unfortunately the 5 amp fuse on the control panel did Not blow so the igniter short circuit damaged the igniter triac on the circuit board! Fortunately everything else works and the stove could be started by manually lighting up the pellets. The filament inside the igniter fuse on the old circuit board had zig zags which were designed to be stronger to withstand vibration for automotive use and looked thicker than the nice thin wire filament in the new fuse in the new replacement circuit board which also has 5 amps inscribed on it! So this new fuse might blow and save the new control panel like some other stoves do, but then the whole stove will not work! Therefore my solution is to add a 4 amp inline fuse with 1 male and 1 female quick disconnect clips on to the red igniter wire. Now when the new igniter dies and if it short circuits then the 4 amp inline fuse will blow and the stove will still work if started manually and the circuit board will be very well protected! Pic 1 - New AGC 4 amp inline fuse and holder connected to the red igniter wire in the stove’s wire harness Pic 2 - The original control panel - Front side Pic 3 - The original control panel - Back side Pic 4 - The original control panel - Zig zag fuse filament in 5 amp fuse designed stronger to absorb vibration for automotive use! Pic 5 - The new control panel - Front side Pic 6 - The new control panel - Back side Pic 7 - The new control panel - Fine wire fuse filament in 5 amp fuse Pic 8-9 - It works Pic 10 - Model - GFI55 (Insert) Pic 11 - Manufacturer date - Feb 2008 Good as New !!!

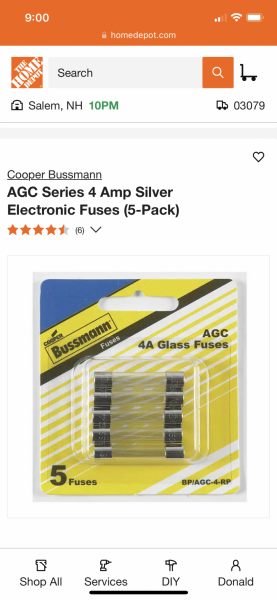

Hello The in-line fuse holder is available at Home Depot and many hardware stores. https://www.homedepot.com/p/30-Amp-Glass-Tube-Fuse-Fuseholder-12-BP-HMK-RP/203298931 The AGC glass fuse it comes with however is way too high in amperage! These fuses are also available at some Home Depot and many hardware stores.
