John Deere X300 Rebuild

Discussion in 'Chainsaws and Power Equipment' started by LordOfTheFlies, Jun 3, 2022.

  1. Dstrick

    Dstrick

    Joined:
    Sep 20, 2019
    Messages:
    167
    Likes Received:
    1,208
    Location:
    Maple Valley, Washington
    C8D548BC-F86F-4B02-85E2-8EA402B27261.jpeg 5437CD65-66ED-4724-9D3D-83E49BDE0C8E.jpeg 7FA5EB8F-8F79-4C21-A99F-EE7A309C9230.jpeg I have an X380 I bought new. It has the 54” deck. It is a cutting son of gun machine. I have 260 hours and I’m on my third deck belt, second deck PTO belt, and original drive belt. Blackberries flatted my fronts with about 14 holes each side. Tubes aren’t compatible. Carlisle turfmaster tires are a fortune. I used the fix a flat juice that Les Schwab sells and it worked great. I don’t like the Kawasaki FV741 at all and wish a Kohler Command had won the OEM contract. But the machine cuts great if I continuously check and set the deck leveling to spec. Sharp blades really help keep the rpm’s up. Enjoy.

    Last edited: Jun 4, 2022
  2. Skier76

    Skier76

    Joined:
    Dec 27, 2014
    Messages:
    2,638
    Likes Received:
    13,925
    Location:
    CT and SoVT
  3. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY
    Wow that looks like an amazing amount of fun (and work) you got going on there! My blades were almost seized actually because of plastic bags caught up in the shaft. I'll have to take them off and get rid of the junk. Pics below.
    Thanks for the link!

  4. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY
    So there's good news and bad news.

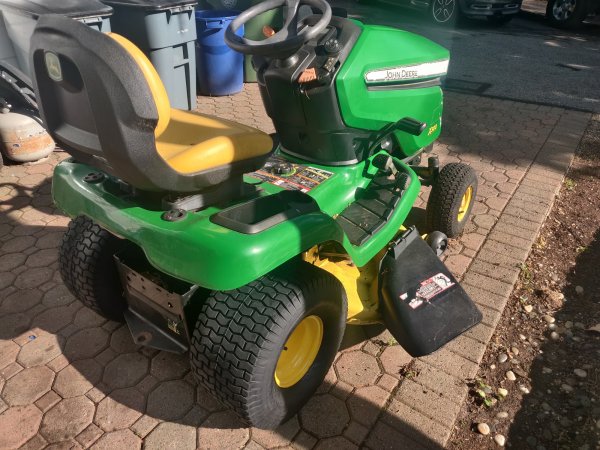

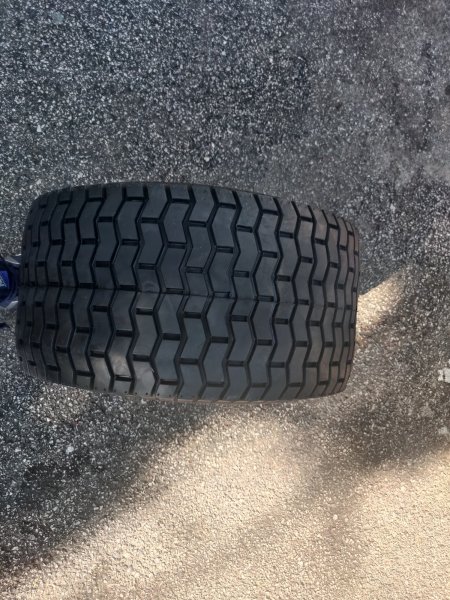

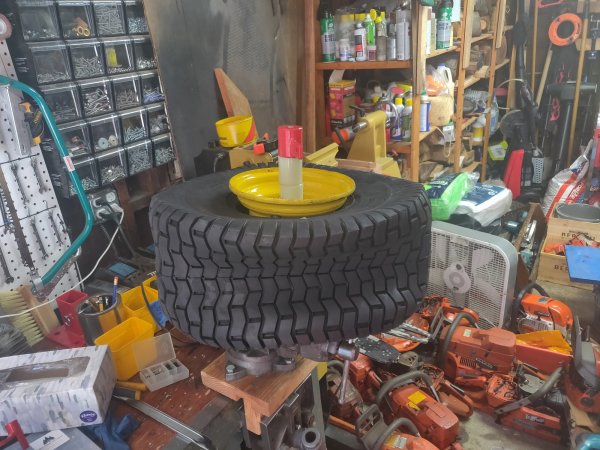

    Good news is the Harbor freight Mini tire changer is amazing. I put the first tire on in like 2 minutes and the second in about 30 seconds.

    Bad news is two fold.

    When I engage the PTO for the mower it stalled the engine. Tried a few times and then it broke free.

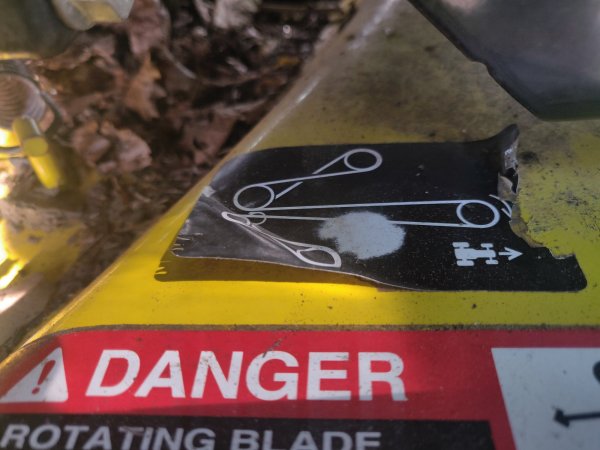

    Well I should have looked at the mower blades becase both shafts were bound up with plastic bags. Yikes.

    The worse news is my original suspicion was that the tranny was leaking oil because it was all over it and it was full of cakes on oily dirt. When I tried to move absolutely nothing happened. No bindings no revs, no nuttin'.

    I made sure the freewheeling lever was in the proper all the way pushed in position. When I had out the tires on I spun one side and the other spun the opposite way. Both sides did this and I made sure the keyway was installed properly. With only 128 hours on it I'd be willing to bet it just needs a seal kit and some oil. And it was probably leaking from being neglected and left uncovered for the last 8 years outside.

    IMG_20220608_165026.jpg IMG_20220608_171258.jpg IMG_20220608_171303.jpg IMG_20220608_171312.jpg IMG_20220608_173959.jpg IMG_20220608_184238.jpg IMG_20220608_183103.jpg

  5. Dok440

    Dok440

    Joined:
    Mar 7, 2021
    Messages:
    1,013
    Likes Received:
    6,853
    Location:
    NorCal
    Good to know about the tire changer, I'm ordering one right now!
    Something to check, on my Husky I had a similar situation and it turned out the built up grass was keeping the parking brake from fully disengaging. I couldn't tell by the pedal when sitting on it, but that last 1/4" is what engaged the drive belt. I hope its something simple like that.

    Screwloose and LordOfTheFlies like this.
  6. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY

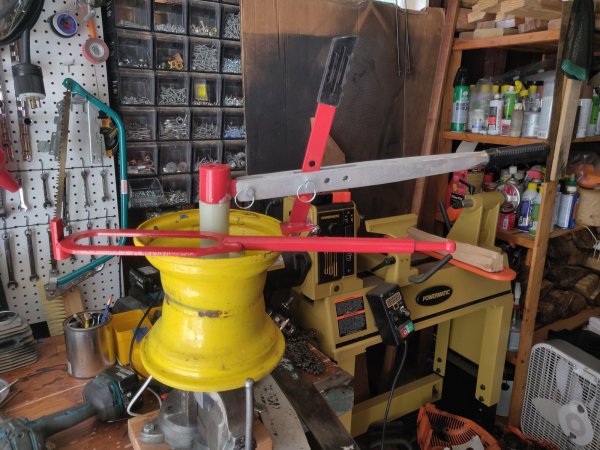

    Yeah it would have been handy to remove the tire too. Here's a pic with the handle and the part that pushes down on the sidewall to break the seal on the bead for removals. I ended up using a 10lb small sledge and dinged up the rim both times.

    2022-06-07 13.44.19.jpg

  7. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY
    Thanks will check that. The other thing I think it could be is the pulley on top of the trans is stripped. The metal on the pulley is way softer than the splined shaft connected to the trans and is designed to strip out if something catches - i.e. plastic bags in the mower blades. But again with the oil on the outside of the trans it's probably low on oil.

    The other cool thing about the tire changer is you can just slip it into a vise if you have one....or you can mount it permanently on a bench using the included base if you have the space.

    Last edited: Jun 9, 2022
    Dok440, JD Guy and Screwloose like this.
  8. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY
    Ok I got good news.......no check that GREAT news......and a little bit of bad news.

    The great news is.....I pulled the tranny, put the frame on jackstands, dumped the oil......and lo and behold it only had 1/2 a quart in there.

    Picked up a new spring washer that goes between the pulley and the fan, and 2 gallons of JD Hy-gard high viscosity. This is a K46BR Tuff Torq tranny and that's the alternative that is listed on the TT website.

    Filled it, then spun the spin with my drill. The drill teeth couldn't grip it but if I jammed it in there I was able to spin the shaft and whammo, the wheels moved in forward and reverse.

    Plugged it and let it sit and did other things and then I noticed the driver side (hahaha) left side axle seal was leaking hydraulic fluid.

    I ordered two axle seals, the fill plug, and the nut with the spindle threads cut into it so I can spin the shaft of the tranny properly plus $9 in shipping for a total of $25.

    So far I've spent:

    $80 on a battery
    $7 on a fuel filter
    $130 on new rear tires
    $75 on 2 gallons of hygard tranny fluid (I like having extra)
    $3 on that spring washer (what a rip off)
    $12 on an assorted snap ring set
    $25 on the axle seals, fill plug, and nut.
    $60 on the mini tire changer.
    $5 on a 2-pack of valve stems.

    So just under $400 and I think that's gonna cover it. I do need to make sure it's not leaking anywhere else but I think we're good to go.

    I think I know what happened here. When the mower blades got clogged up with the plastic bags, it put a lot of strain on the drive belt which in turn led to way lower rpms on the fan resulting in overheating of the tranny. The fluid puked out of the seals and probably the vent......and then the guy just let it sit there and gave up on it.

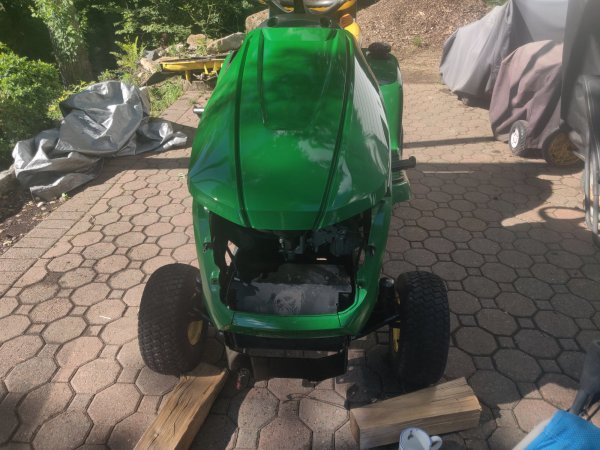

    I took apart the front fascia too - the hood is cracked all over the place in terms of the mounting bolts. I'll try JB weld. A friend suggested CA glue and baking soda. I don't know which will work better.

    Btw Naptha is an amazing solvent for removing gorilla tape glue residue. That's what the PO used to hold the headlight fascia in place.

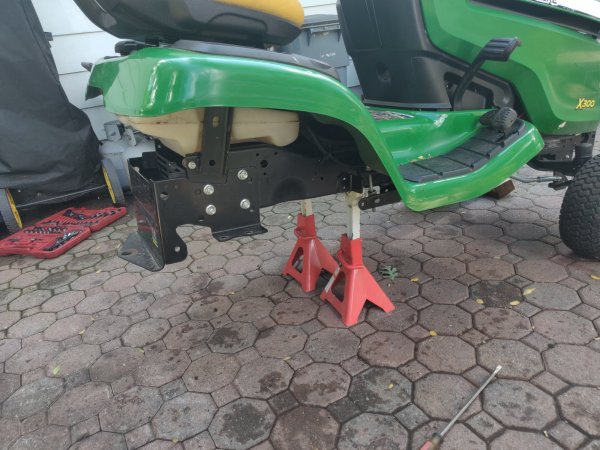

    Jackstands. Safety first!

    2022-06-09 10.35.21.jpg

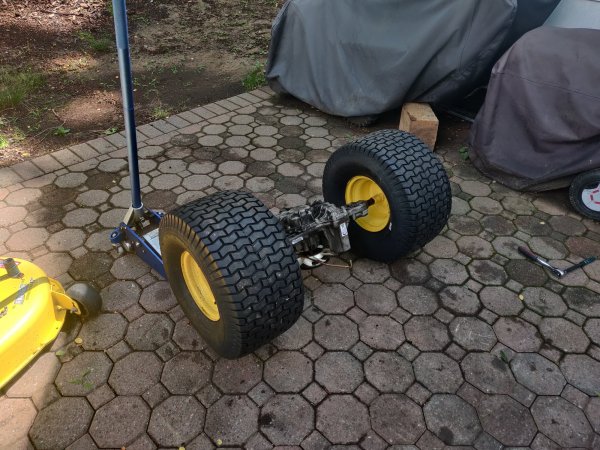

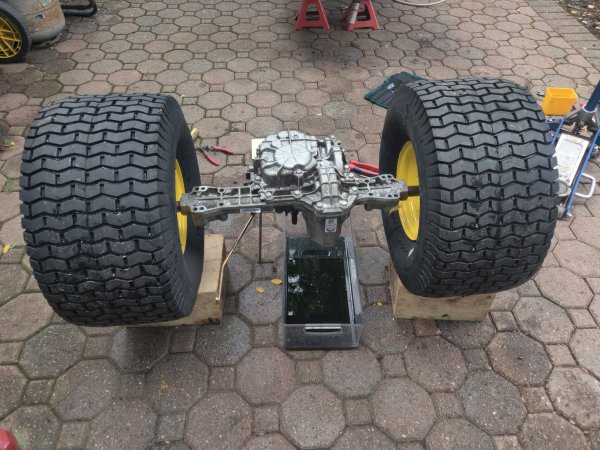

    Rolled the tranny right out. Used a long screwdriver to hold it level heh heh.

    2022-06-09 10.35.24.jpg

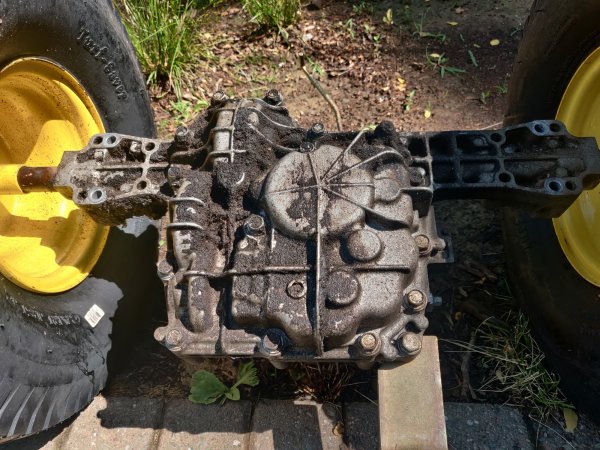

    This thing was filthy!

    2022-06-09 10.44.14.jpg

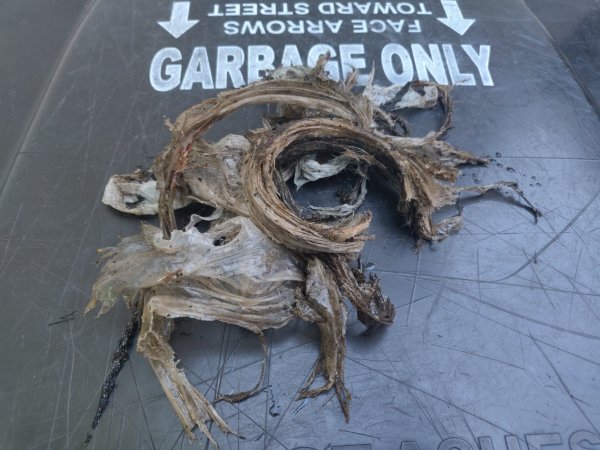

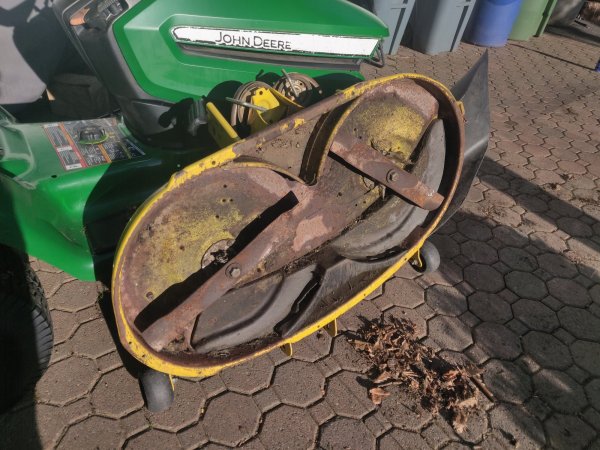

    Here's the crap I pulled out of the mower blade shafts.

    2022-06-09 11.03.30.jpg

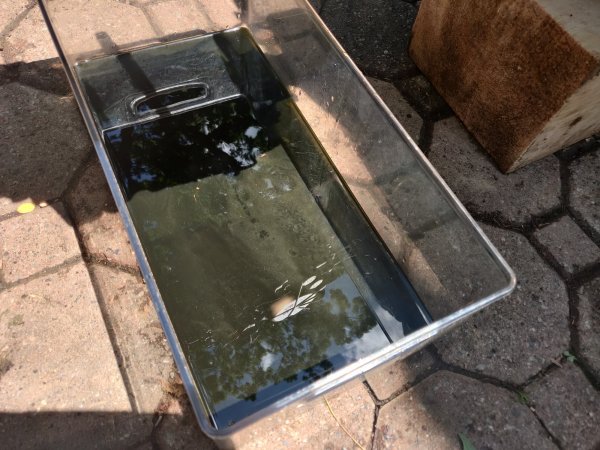

    Super low fluid!

    2022-06-09 11.19.31.jpg

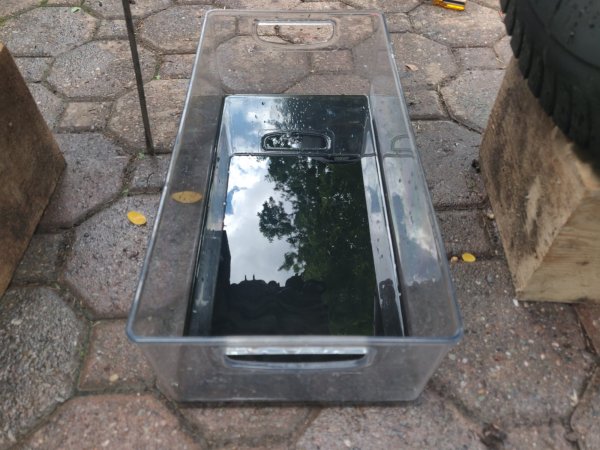

    The stuff that came out was half dirty and half clean while it was coming out.

    2022-06-09 11.23.24.jpg

    2022-06-09 11.23.26.jpg

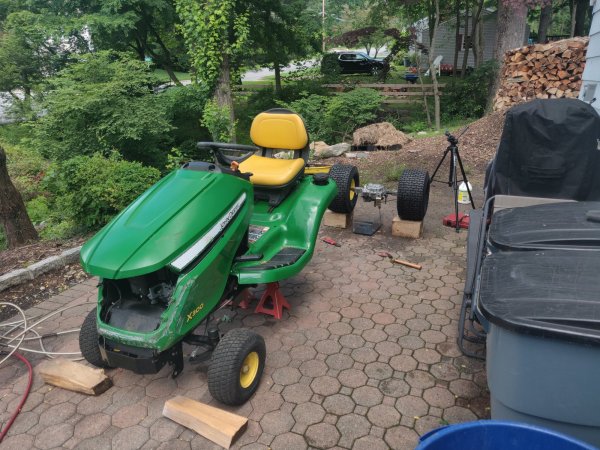

    Today's work area.

    2022-06-09 11.24.32.jpg

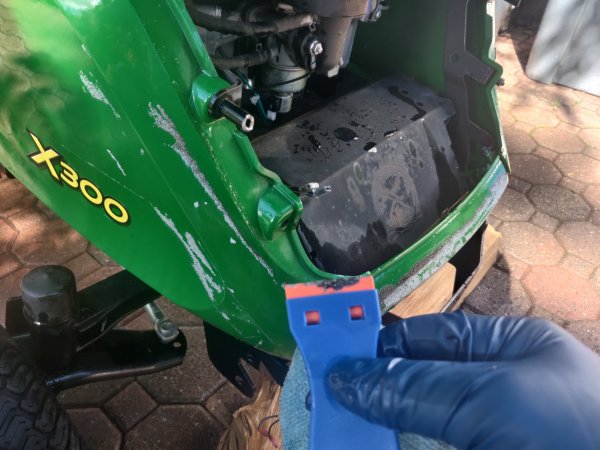

    Plastic scraper + naptha + rag + elbow grease worked out really well.

    2022-06-09 16.13.03.jpg

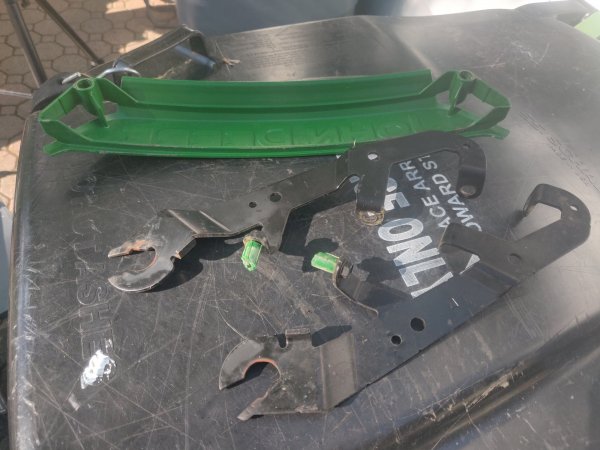

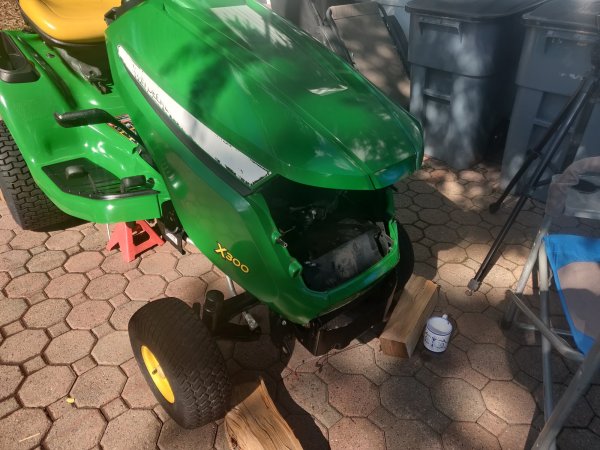

    Broken clips.

    2022-06-09 17.22.42.jpg 2022-06-09 17.23.11.jpg

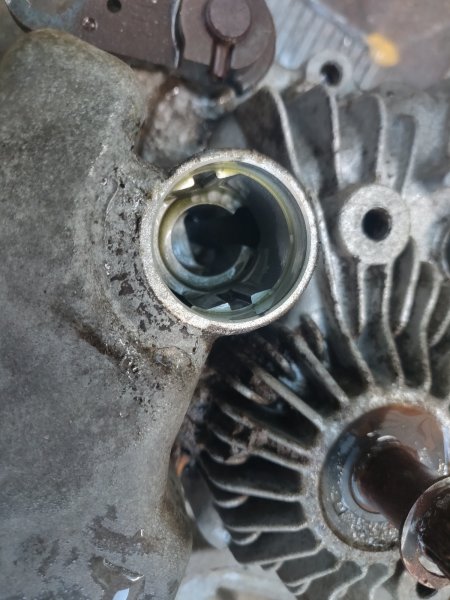

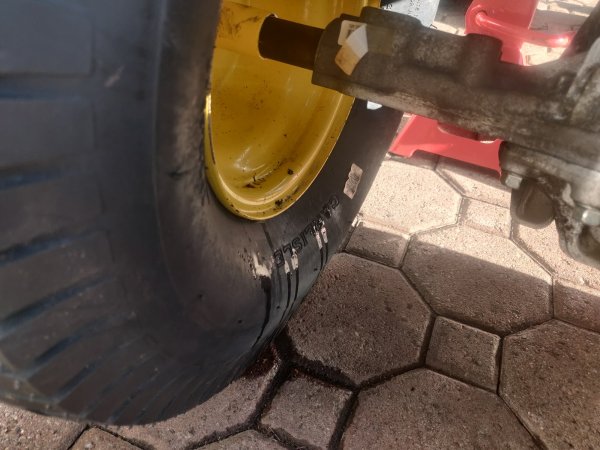

    Left side axle leaking fluid.

    2022-06-09 18.08.11.jpg

    Looking good after getting all that glue off!

    2022-06-09 17.00.11.jpg 2022-06-09 17.00.14.jpg 2022-06-09 17.00.20.jpg

    I took some video footage too but am too tired to edit tonight.

  9. Dok440

    Dok440

    Joined:
    Mar 7, 2021
    Messages:
    1,013
    Likes Received:
    6,853
    Location:
    NorCal
    So far so good! That's going to a be a nice lawn tractor for that price. Hard to believe that plastic bag could cause so much damage, I'll have to look out for that.

  10. Skier76

    Skier76

    Joined:
    Dec 27, 2014
    Messages:
    2,638
    Likes Received:
    13,925
    Location:
    CT and SoVT
    Great work and thanks for the insight on the tire changer. I’ve been thinking of getting one of those.

    LordOfTheFlies and Screwloose like this.
  11. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    5,094
    Likes Received:
    29,653
    Location:
    SE Wisconsin
    The tire changer does work great but is it in fact fair to add it to your total cost?
    Your other tools that you used aren't factored in.
    Just saying.....

    LordOfTheFlies likes this.
  12. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY

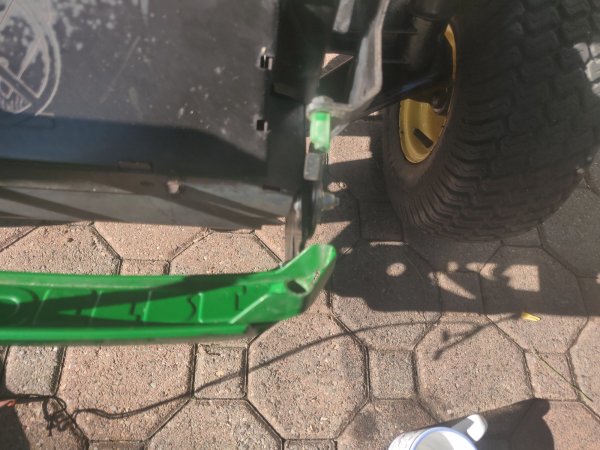

    Yeah I should have been more diligent and checked the mower deck but I initially thought it would be a terrible hassle to remove the deck....but it turns out it is quite easy and no tools needed except a flat head screwdriver to pop out the front support from the bracket after you remove the clip. Just a could of spring clips in the back and the whole thing slides right out.

    It literally stalled the engine the minute I engaged the PTO and I was like "Uh oh......." but luckily it worked out. Now I have to look up a video on how to sharpen a mower blade on the deck because my 18v Makita impact hammer doesn't have enough oomph to spin the nut off. I did soak it in PB blaster though so maybe it will break free.

    It definitely got the job done. While it isn't a high quality tool it seems solid enough for the task at hand and it certainly saved me some time and aggravation. It also made it easy to repair the dings I put in the lip of the rim and I wouldn't have even had dings had I had the tool in the first place as it has a handle that you push the tire down to pop it off the bead.

    Well you could argue it both ways...but I bought specifically for this purpose.....and while I had been thinking about it.....I hadn't purchased it until I needed it..... But it has basically paid for itself. Although I will say that the last time my tire went flat on the snowblower from just sitting around I brought it to the tire shop and they just removed the schrader valve and blasted it with air and then the tire just reseated itself (I was uninformed back then) and didn't charge me anything. But that wasn't mounting of a tire on a rim. They would have charged me at least $20 per tire now. So I would have had to pay one way or another and why not just pay for a tool that can be used multiple times in the future!

    Screwloose and Skier76 like this.
  13. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,018
    Location:
    Greenville County SC
    Is yours an ‘06 or ‘07?

    LordOfTheFlies and Screwloose like this.
  14. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,018
    Location:
    Greenville County SC
    Just curious, what don’t you like about the Kawi?

    Screwloose and LordOfTheFlies like this.
  15. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,018
    Location:
    Greenville County SC
    LordOfTheFlies congrats on a great score. Isn’t it amazing how some will treat a $3k machine as disposable?

    The oil is the life-blood of these transmissions. If it’s filthy, then that doesn’t bode well for the trans. If it’s pouring out the axle seals, you’re going to have to open it up to correct that. “While you’re in there…” :picard: you might want to consider just doing a refresh/rebuild. Kansaki/Tuff-Torque (the trans OEM) usually sells complete rebuild kits and has been helpful to many DIY’rs in the past. It’s going to bump up your costs considerably, but you’ll be confident in that trans for decades to come.

    Did it drive ok before you pulled the trans?

    Screwloose, JD Guy and LordOfTheFlies like this.
  16. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY
    Thanks! Yeah well some people with $$$ just don't care. It's sad. They can just go and buy another one.

    It didn't move at all because there wasn't enough oil in there. The oil that came out was not filled with any visible chunks of metal which is a good sign. It did have signs of minute metal but overall I'd say I was surprised it looked as good as it did. The magnet at the fill plug was clean too.

    According to the Taryl video I think I can just replace the axle seal from the outside using a small pick or screwdriver. I was considering a rebuild but I wanted to check the oil level first....and since the wheels now turn when I spin the shaft of the tranny I'm going to put it all back together (tranny really wasn't hard to remove) and see what's what. Check for leaks, perhaps change the engine oil as well after a short while to flush all the old oil out, and then try and decide what to do with it. If I can find a snowblower, plow attachment, and/or garden cart for cheap I may just keep it for a long, long time. :D

    Stephiedoll, Screwloose and JD Guy like this.
  17. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    22,398
    Likes Received:
    142,292
    Location:
    NE Ohio
    What is typical on a hydro trans is that you can replace the dust seals from the outside...but these don't hold the oil in...and the high pressure oil seals are installed internally.

    Screwloose and MasterMech like this.
  18. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY

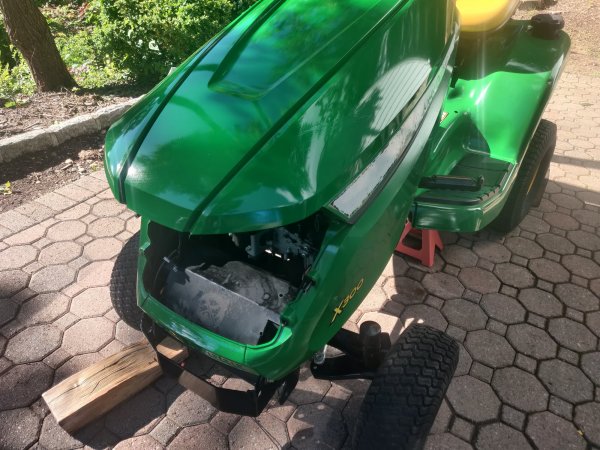

    Here's the only other pic I have of the oil. Also dealing with the crappy hood plastic. Serious design flaw....or perhaps they designed it to fail on purpose so you'd have to buy new hoods.

    The fluid is leaking but I would not say it's pouring out. Only happens when the axle is rotated.

    2022-06-09 11.58.02.jpg 2022-06-09 18.08.11.jpg

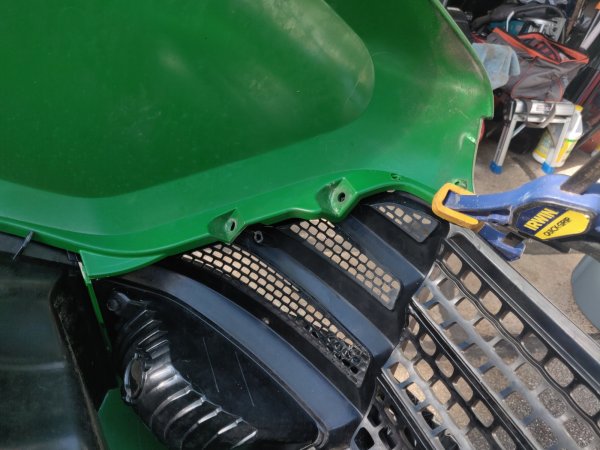

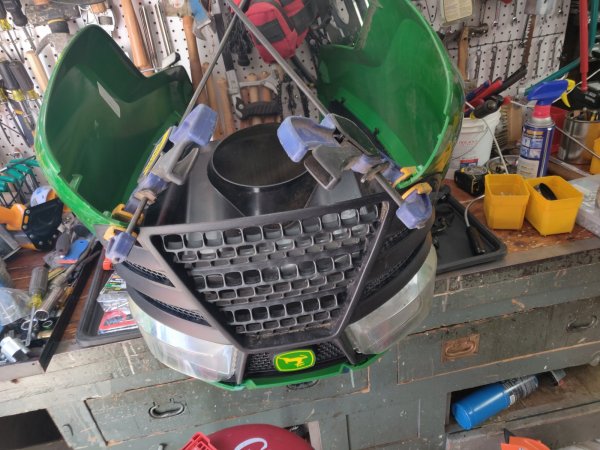

    The plastic tabs are all broken - green and black - so now I'm considering just using the fiberglass reinforced bondo and shoving it where the green meets the black. The angles are all wrong here for my original idea of using a rivet. There isn't enough meat or contact between the two pieces. Horrible, horrible design. I thought I still had a can of the aforementioned bondo but unfortunately I only have the gold version which is for the final layer.

    The other option I thought of was to use Premium PL polyurethane glue. That's a bit more liquidy and while it will get into the nooks and crannies a bit easier it might make a helluva mess.

    2022-06-10 16.46.46.jpg 2022-06-10 17.09.23.jpg

    Screwloose likes this.
  19. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,018
    Location:
    Greenville County SC
    I would put oil in it, put it back under the tractor, and make sure it runs strong before investing a lot of time in it. Trans issues usually show up AFTER the unit is up to temp. If it seems strong to you, order a seal kit, change them out, and enjoy. If not, you’ll need a full rebuild kit.

    I find it amazing that when a hood is made out of thin stamped steel, the operator is blamed for any damage or finish degradation. If it’s a relatively expensive polymer part, it’s blamed on it being “plastic”. :picard::doh:

    Screwloose, JD Guy and LordOfTheFlies like this.
  20. LordOfTheFlies

    LordOfTheFlies

    Joined:
    Apr 5, 2019
    Messages:
    2,519
    Likes Received:
    12,097
    Location:
    NY
    Yeah I did order a two axle seals and the fill plug.

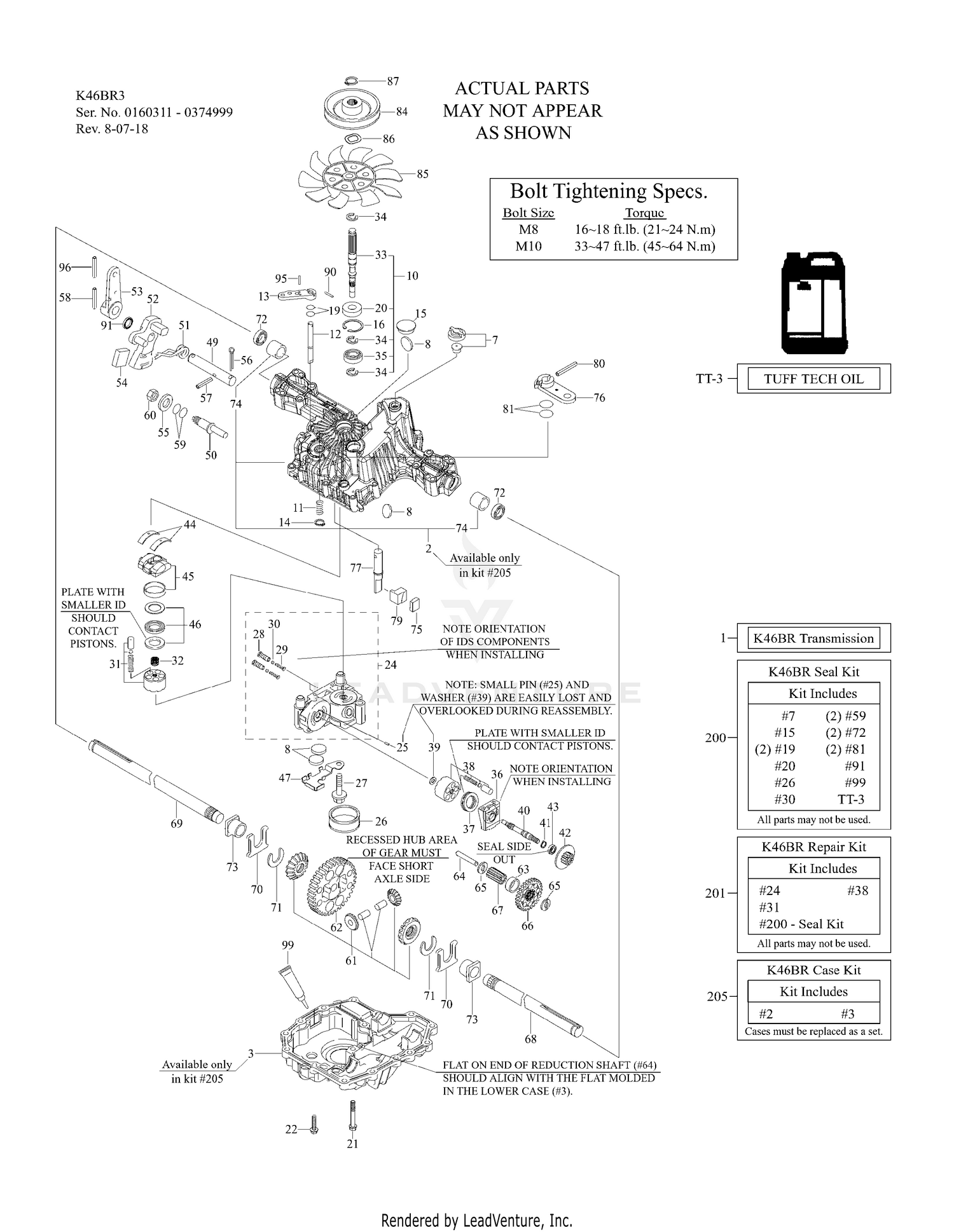

    According to the parts diagram and the videos I watched, it is only the external seal part #72 below.

    [​IMG]

    brenndatomu and Screwloose like this.
