    Put the black clamp of the jumper cables on the neg of the battery in your truck then the black clamp at the other end on the new eyelet you put on the wire.

    Warner, Dec 12, 2021
    #221 Top
    Horkn, Well Seasoned and brenndatomu like this.
  2. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire
    Just pay close attention to polarity you do not want to do any welding or letting the magic smoke out. If you don’t know all electronic devices contain magic smoke that make them work unfortunately if you let it out of the component it’s toast.

    Warner, Dec 12, 2021
    #222 Top
    brenndatomu, Cold Trigger Finger, Horkn and 2 others like this.
  3. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    I'm stumped! Ran the new fixed rear wire to the negative on battery. No luck with lights yet. Engine shut down when i took the jumper off, fired up with it on. I did this twice with the same results. Strange

    Well Seasoned, Dec 12, 2021
    #223 Top
    brenndatomu, Horkn and Eric VW like this.
  4. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF

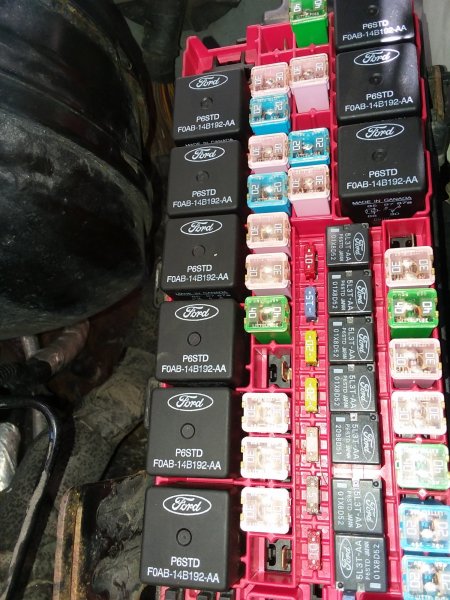

    These black fuse things have continually gotten warm through the process the other day and today. The ones on the left only


    Well Seasoned, Dec 12, 2021
    #224 Top
    brenndatomu and Eric VW like this.
  5. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire
    There may be additional grounds on the frame in the back. The black things are relays it’s not uncommon for them to get warm not hot.

    Warner, Dec 12, 2021
    #225 Top
    MasterMech, brenndatomu, Cold Trigger Finger and 3 others like this.
  6. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    I REALLY looked for more again. Yes the broken one was missed the other night since the spare tire was in the way, but im not seeing anything else.

    I cleaned and tightened 4 grounds on the passenger side fender, one on the driver side. Found two along the frame driver side, one being thr broken one and fixed today.

    Another from the neg battery post to the engine block and the braided heat tape one running from the firewall to the block

    Ugggggg!

    Well Seasoned, Dec 12, 2021
    #226 Top
    brenndatomu, Horkn, Cold Trigger Finger and 1 other person like this.
  7. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    Where would the pcm be?

    Well Seasoned, Dec 12, 2021
    #227 Top
    brenndatomu, Horkn and Eric VW like this.
  8. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire
    Rectangular box with three large connectors by the battery. Pcm has little to do with the rear lights. They are controlled by the body control module in passenger kick panel.

    Warner, Dec 12, 2021
    #228 Top
    brenndatomu, Horkn and Eric VW like this.
  9. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire
    Do you have a test light?

    Warner, Dec 12, 2021
    #229 Top
    brenndatomu, Horkn and Eric VW like this.
  10. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    Yes

    Well Seasoned, Dec 12, 2021
    #230 Top
    brenndatomu, Horkn and Eric VW like this.
  11. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    There is no relay in the pcm spot in thr engine fuse box

    Well Seasoned, Dec 12, 2021
    #231 Top
    brenndatomu and Eric VW like this.
  12. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire
    Yes there is, the location should be listed in the owners manual. But if the truck starts the pcm relay is working.

    Warner, Dec 12, 2021
    #232 Top
    brenndatomu, Horkn and Eric VW like this.
  13. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire

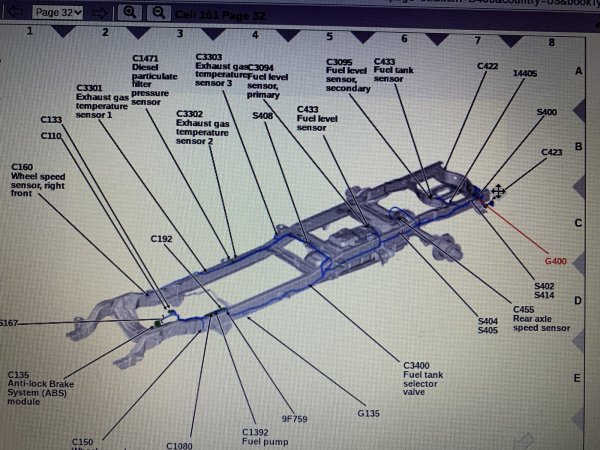

    image.jpg The red g400 is pointing to the ground for the plate lamps take a look there.

    Warner, Dec 12, 2021
    #233 Top
    brenndatomu, Horkn, Eric VW and 1 other person like this.
  14. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    Thx.....


    Put left turn signal on, both flash. Same if i switch them. Brake lights work. No running lights or plate lights..... wierd

    I'm checking the plate lights

    Well Seasoned, Dec 12, 2021
    #234 Top
    Horkn, SKEETER McCLUSKEY and Eric VW like this.
  15. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    Plate lamp wires appear to be ok. Thr only ground i see is the one i fixed....

    Well Seasoned, Dec 12, 2021
    #235 Top
    Eric VW, brenndatomu and Horkn like this.
  16. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire

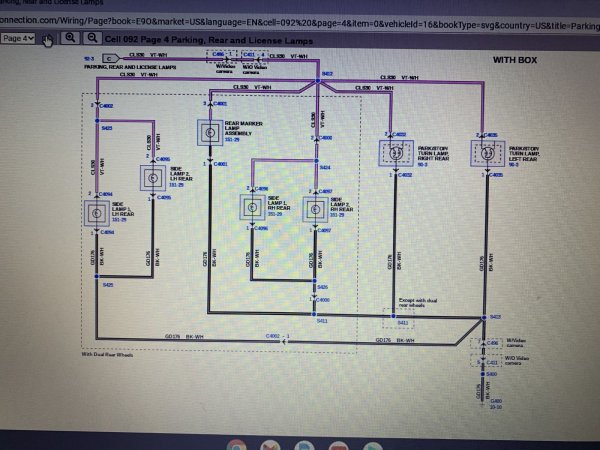

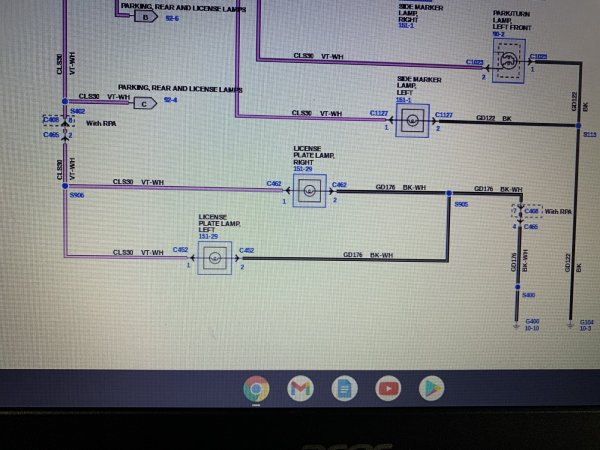

    A0513565-D601-4EE6-A2BD-1F9CFDD85DF2.jpeg F857254A-DEC7-4F86-9FCB-089AAE57EBEF.jpeg Wire diagrams from Ford show both the tail lamps and license plate lamps using g400 the ground in the other pic.

    Warner, Dec 12, 2021
    #236 Top
    Eric VW, brenndatomu and Horkn like this.
  17. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    Is there a way to bypass them?

    Well Seasoned, Dec 12, 2021
    #237 Top
    Eric VW, brenndatomu and Horkn like this.
  18. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    Thanks everyone so much for your help i want to Express my gratitude

    Well Seasoned, Dec 12, 2021
    #238 Top
    Eric VW, brenndatomu and Horkn like this.
  19. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    7,367
    Likes Received:
    47,681
    Location:
    New Hampshire
    You could cut the black with white wire and attach the socket side to the the battery neg via the jumper cable.

    at the plate lamp socket.

    Warner, Dec 12, 2021
    #239 Top
    Eric VW, brenndatomu, Horkn and 1 other person like this.
  20. Well Seasoned

    Well Seasoned Administrator

    Joined:
    Oct 3, 2013
    Messages:
    18,038
    Likes Received:
    83,786
    Location:
    N.H. WMNF
    I did do that but worth a try again.

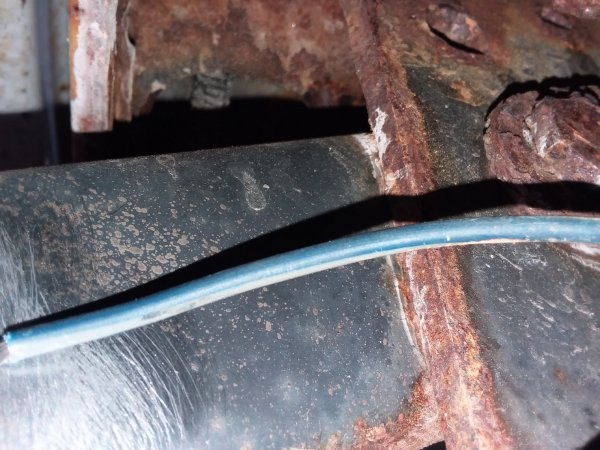

    This wire, the only one i found at the rear



    Well Seasoned, Dec 12, 2021
