    Thanks, Found it... ~smokey~

  2. eatonpcat

    eatonpcat

    Joined:
    Oct 5, 2013
    Messages:
    8,431
    Likes Received:
    45,666
    Location:
    Eaton Township, OH
    Thanks Eric

    Eric VW, brenndatomu and Chaz like this.
  3. Chaz

    Chaz

    Joined:
    Jan 27, 2018
    Messages:
    8,528
    Likes Received:
    60,019
    Location:
    Southwestern NY
    Eric VW got the mod powers goin on
    :cool:

    Edit.. guess he found your tilde´
    :bug:

    :rofl: :lol:

    Eric VW, brenndatomu and eatonpcat like this.
  4. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia
    Thanks bud !

    Chaz and Eric VW like this.
  5. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

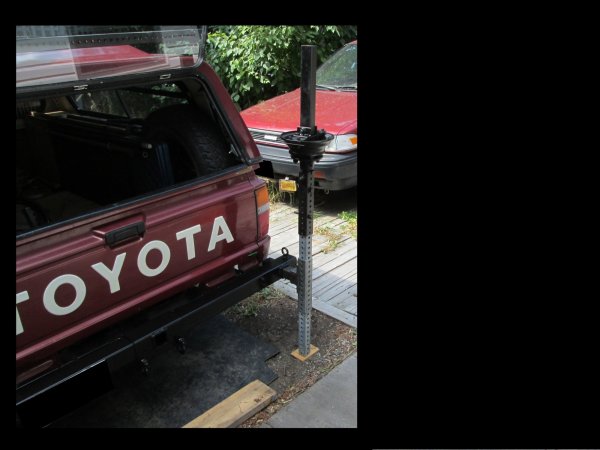

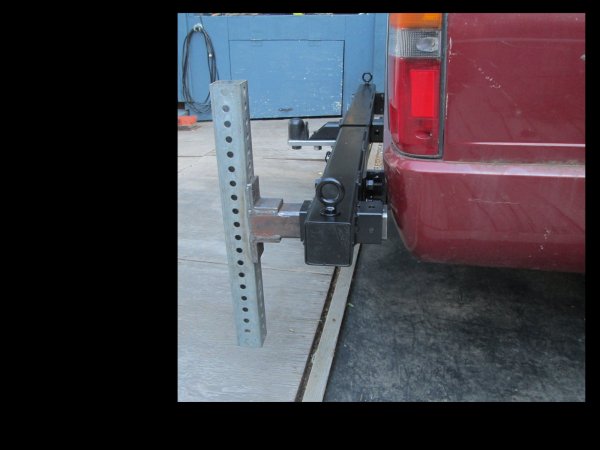

    Time to start farting about with the crane, vertical post welded to the receiver hitch

    Boogeyman, eatonpcat, Chaz and 3 others like this.
  6. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

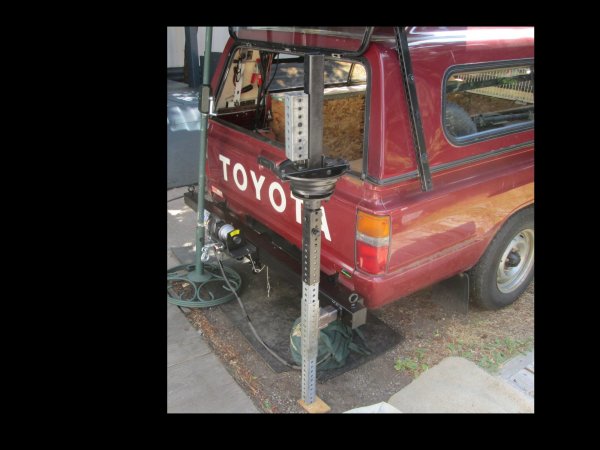

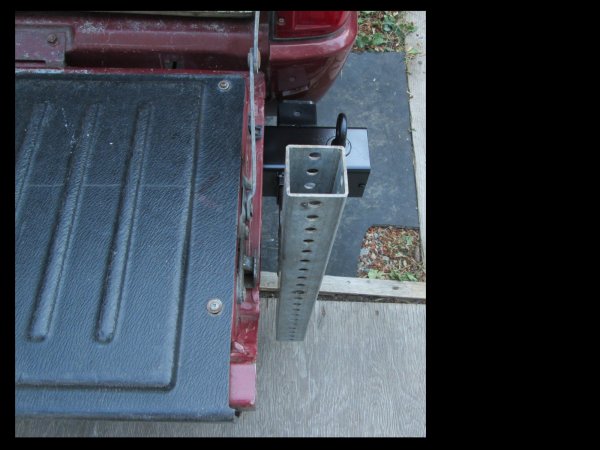

    About an inch of clearance next to the tailgate

    Boogeyman, eatonpcat, Chaz and 4 others like this.
  7. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

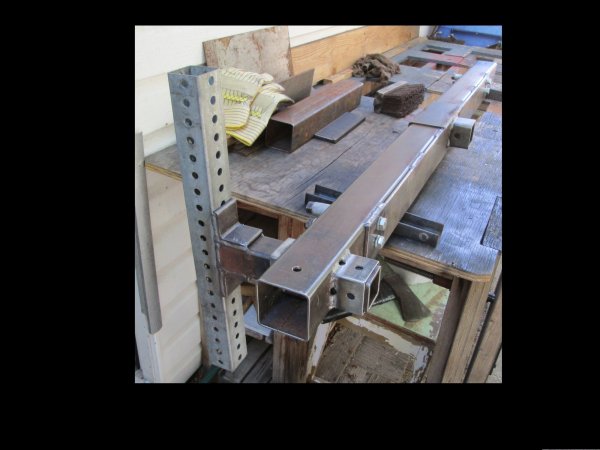

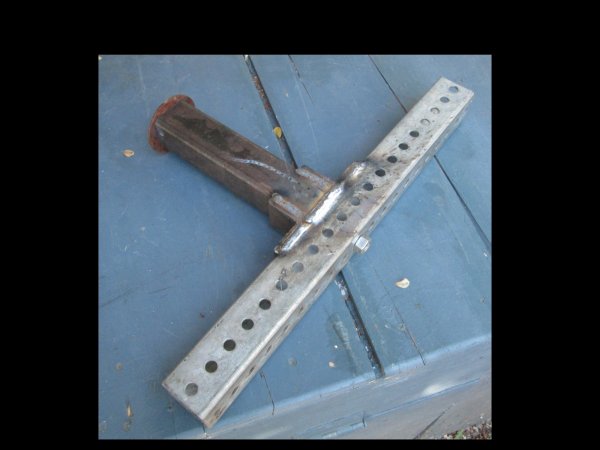

    Mocking up some of the vertical post parts

    Boogeyman, eatonpcat, Chaz and 3 others like this.
  8. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

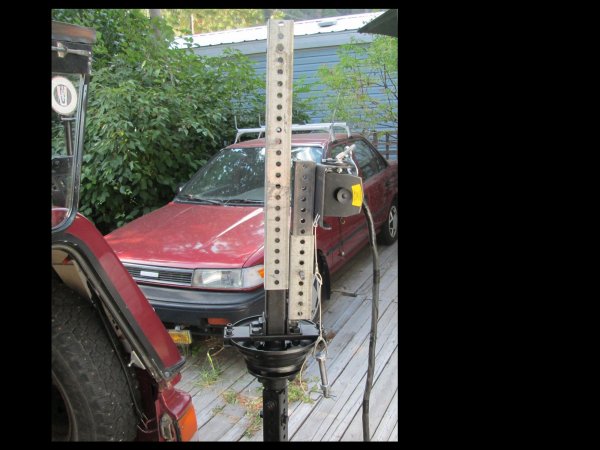

    Winch is mounted to a receiver hitch and slips into a piece of Telespar bolted to the vertical post, held by a pin

    Boogeyman, eatonpcat, Chaz and 3 others like this.
  9. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

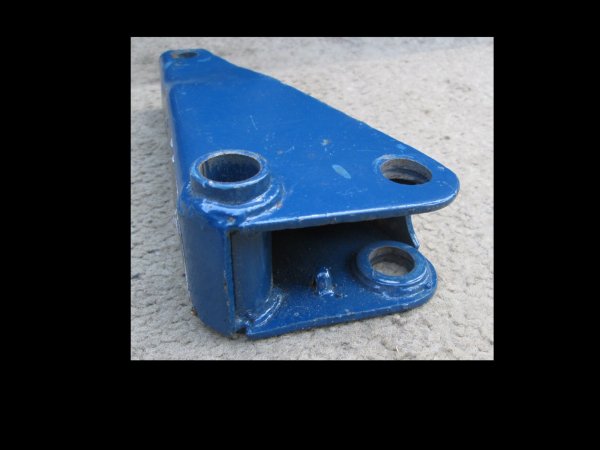

    From my junk pile a beefy lifting arm from an old hydraulic floor jack, should work good as a pivot

    Boogeyman, eatonpcat, Chaz and 3 others like this.
  10. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

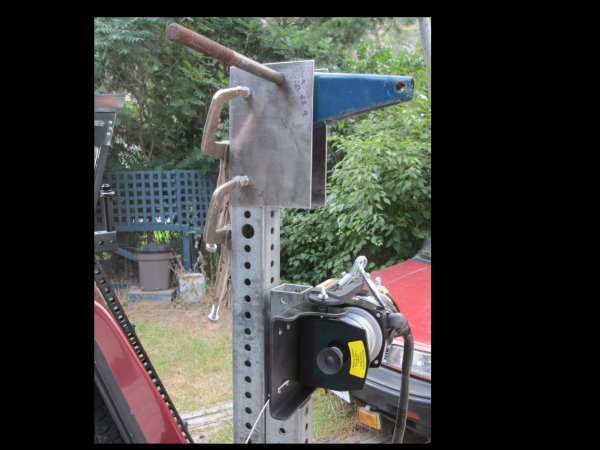

    The lifting arm is wedged between those two plates, I'm using the 2¼" O.D Telespar for the main boom with short sections of 2" Telespar slipped inside wherever it's bolted along with ½" I.D water pipe spacers to prevent the Telespar from crushing when tightened, the plates are 1/8" thick 5" x 8"

    Boogeyman, eatonpcat, Chaz and 4 others like this.
  11. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia

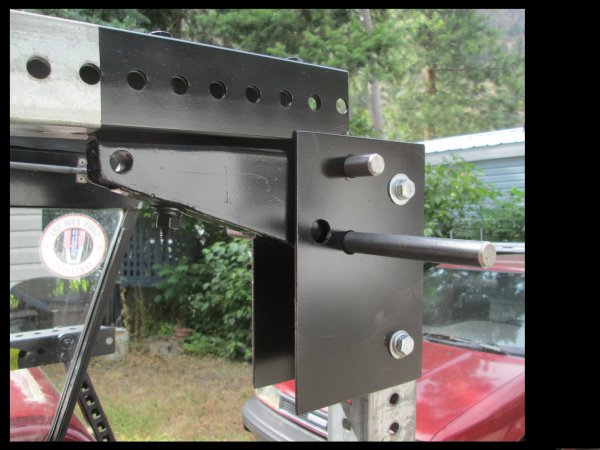

    After 27 days working on the new bumper/crane build it's pretty much done, working on the pins to have two positions for boom height

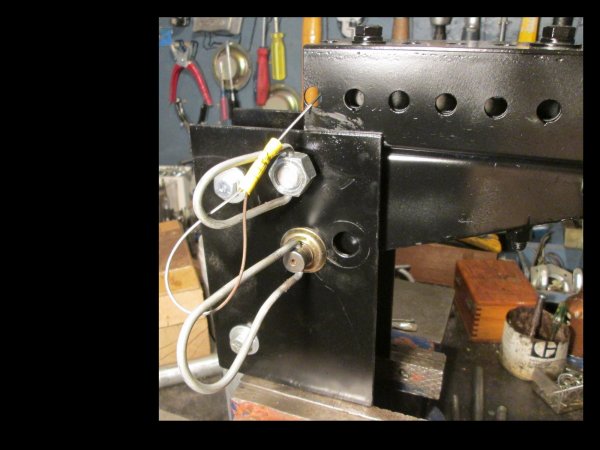

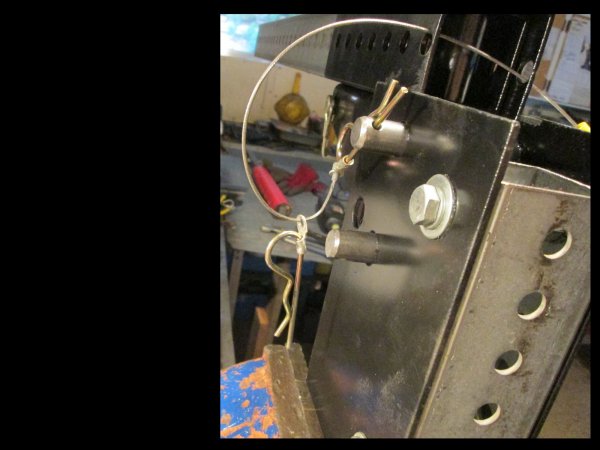

    Drilling the ends of the pins to accept these pull handles using thin rod makes installing/removing the pins a lot easier

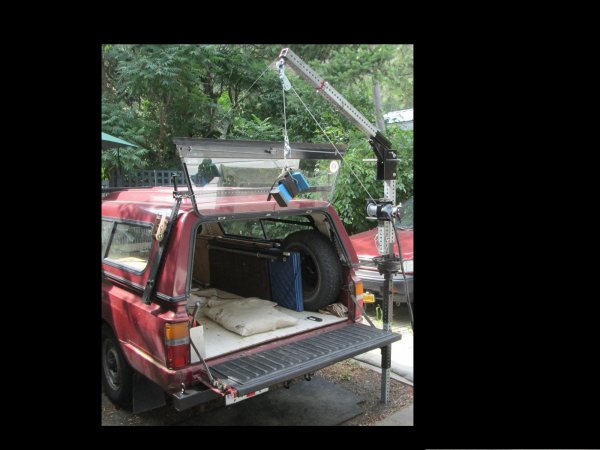

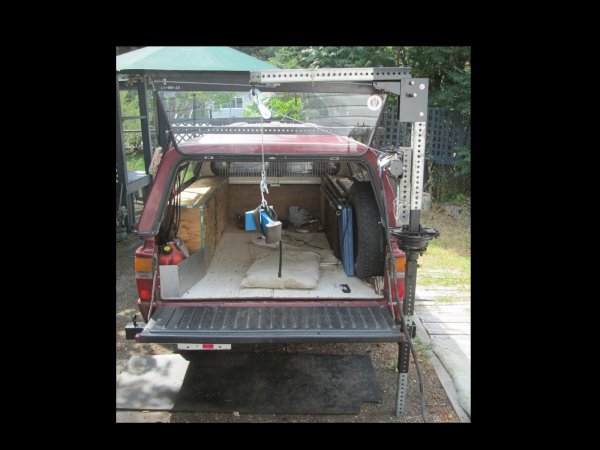

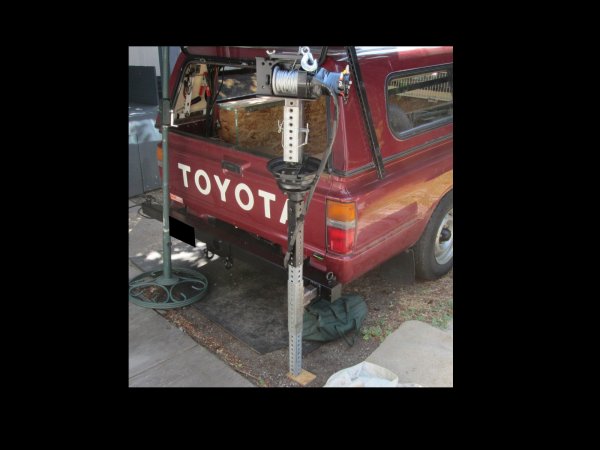

    Boom in the low and high position

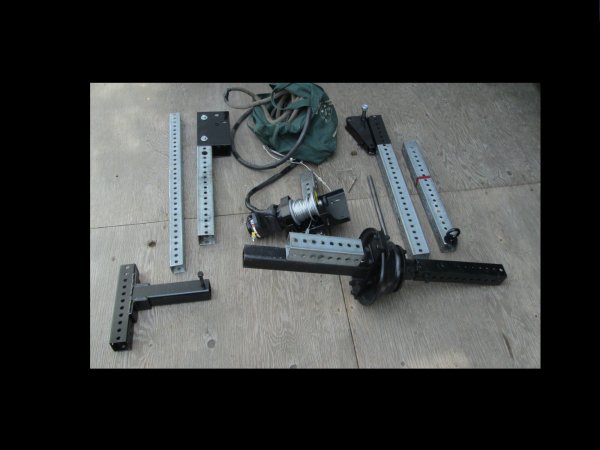

    The whole crane is a take down design for easier storage and makes for lighter pieces, the heaviest piece is the swivel at a reasonable 28 lbs, the whole crane including the winch weighs 80 lbs


  12. Stinny

    Stinny

    Joined:
    Oct 29, 2013
    Messages:
    14,040
    Likes Received:
    60,058
    Location:
    western Maine
    Looks good... welcome to the gravity fighters club... ;)

  13. Woodwidow

    Woodwidow

    Joined:
    Oct 4, 2013
    Messages:
    12,773
    Likes Received:
    80,347
    Location:
    Port McNeill, BC Northern Vancouver Island
    Thanks for sharing the project with us. It looks great.

  14. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    20,444
    Likes Received:
    127,208
    Location:
    NE Ohio
    Nice job! :handshake:
    So does the upright post get pinned to the bumper mount, or do you let it float so that when the truck squats with a load, you can still get the crane post out?
    Lets see a log hanging on that suckah now! :yes:

  15. cnice_37

    cnice_37

    Joined:
    Oct 4, 2013
    Messages:
    3,205
    Likes Received:
    14,192
    Location:
    SE Mass
    Here I thought another guy was mounting the HF crane thing to a receiver. Nope, very well thought out!!

    :salute:

  16. eatonpcat

    eatonpcat

    Joined:
    Oct 5, 2013
    Messages:
    8,431
    Likes Received:
    45,666
    Location:
    Eaton Township, OH
    Nice!!!

    ~smokey~ likes this.
  17. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia
    Thanks Stinny, I just wish I had some rounds to pick up with this thing I guess I'll have to settle for a drum full of steel :smoke:

    Stinny, brenndatomu and T.Jeff Veal like this.
  18. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia
    You're welcome, glad you enjoyed it !

  19. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia
    Thanks brenndatomu, the post sits on the ground and takes all the weight so the receiver hitch part works as a stabilizer, not sure if it makes much difference in the end but it's a much simpler build, I wish I had some rounds to play with but I'm looking forward to dragging wood out of the bush with this thing ! Drag Lift Chop Burn...

    brenndatomu and T.Jeff Veal like this.
  20. ~smokey~

    ~smokey~

    Joined:
    Oct 23, 2019
    Messages:
    153
    Likes Received:
    1,005
    Location:
    British Columbia
    Thanks cnice_37, why buy something from HF when you take things the hard way !
