Discussion in 'Chainsaws and Power Equipment' started by KilliansRedLeo, Aug 1, 2014.

Page 2 of 4
  1. Mastermind

    Mastermind

    Joined:
    Oct 5, 2013
    Messages:
    1,257
    Likes Received:
    5,594
    Location:
    Tennessee
    I've not even looked at them yet. :(

    Mastermind, Aug 1, 2014
    #21 Top
  2. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,019
    Location:
    Greenville County SC
    Having recently seen inside that engine, I did not notice any problems whatsoever.

    The outboard clutch design is why the cranks are failing on the 560/562. The clutch is not protected by the crankcase like it would be on an inboard design and the tail of the crank narrows substantially where the clutch threads on. Plus the clutch itself is farther out on the crank than an inboard. More leverage, thinner crank, little physical protection, all adds up to likely damage if the saw encounters extreme operating conditions. Like attack trees and stuff.

    Doesn't change the fact that the saw is a fearsome runner. :saw:

    MasterMech, Aug 1, 2014
    #22 Top
    HoneyFuzz, clemsonfor, concretegrazer and 2 others like this.
  3. DexterDay

    DexterDay Administrator

    Joined:
    Oct 2, 2013
    Messages:
    12,411
    Likes Received:
    31,628
    Location:
    Northeast Oh

    Best post ever :dex: lol

    DexterDay, Aug 1, 2014
    #23 Top
    cgraham1, HoneyFuzz and Chvymn99 like this.
  4. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,019
    Location:
    Greenville County SC
    Are you home yet? :whistle: :hair: :saw:

    MasterMech, Aug 1, 2014
    #24 Top
    HoneyFuzz, DexterDay and Chvymn99 like this.
  5. KilliansRedLeo

    KilliansRedLeo

    Joined:
    Jun 14, 2014
    Messages:
    1,267
    Likes Received:
    2,810
    Location:
    Rochester, New York
    MM perhaps you are right on the crank failures however the 570/575 had IB clutches and they had a problem with broken clutch side cranks.

    KilliansRedLeo, Aug 1, 2014
    #25 Top
    HoneyFuzz likes this.
  6. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,019
    Location:
    Greenville County SC
    There are many ways to break a crank. I would have to see a actual 575/570 to determine any design weaknesses. Of course, it always could be a metallurgy issue as well. ;)

    In the case of these 560s/562s, there are several obvious design differences that contribute to the crank/clutch assembly being less durable than competing inboard designs.

    MasterMech, Aug 1, 2014
    #26 Top
    HoneyFuzz likes this.
  7. Mastermind

    Mastermind

    Joined:
    Oct 5, 2013
    Messages:
    1,257
    Likes Received:
    5,594
    Location:
    Tennessee
    If you look at the inboard/outboard clutch debate a little closer.........you will see the the rim rides closer to the bearing on an outboard design. I think that would actually make that design more durable. Maybe I'm looking at it wrong though. :smoke:

    Mastermind, Aug 1, 2014
    #27 Top
    Sunfish, bryanr2 and HoneyFuzz like this.
  8. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,019
    Location:
    Greenville County SC
    No, you have it right Randy. But in Ktoom/Chvymn99's case, the force was applied to the clutch itself. IIRC, the original clutch cover on that saw was destroyed in the "incident".

    Any crank failures that resulted from force applied to the rim/sprocket are most likely a metallurgy/casting issue and/or due to the thinner diameter of the crank where the clutch mounts.

    Last edited: Aug 1, 2014
    MasterMech, Aug 1, 2014
    #28 Top
    HoneyFuzz and Chvymn99 like this.
  9. Mastermind

    Mastermind

    Joined:
    Oct 5, 2013
    Messages:
    1,257
    Likes Received:
    5,594
    Location:
    Tennessee
    Hey..........I wanna thank you again Brian for helping me out with my project.

    Mastermind, Aug 1, 2014
    #29 Top
    MasterMech, HoneyFuzz, Chvymn99 and 1 other person like this.
  10. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,019
    Location:
    Greenville County SC

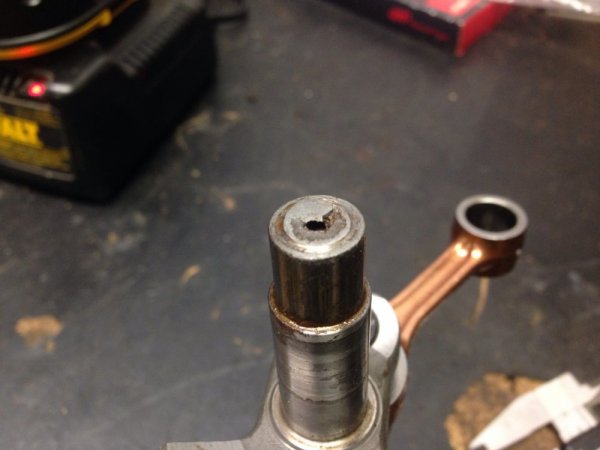

    Here's a pic of the broken crank end. The diameter of the shaft at the break is just about 9mm.



    Attached Files:

    MasterMech, Aug 1, 2014
    #30 Top
    HoneyFuzz and Chvymn99 like this.
  11. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    9,648
    Likes Received:
    26,019
    Location:
    Greenville County SC
    Anytime Randy. Anything you need, just ask. ;)

    MasterMech, Aug 1, 2014
    #31 Top
    HoneyFuzz, Chvymn99, clemsonfor and 1 other person like this.
  12. KilliansRedLeo

    KilliansRedLeo

    Joined:
    Jun 14, 2014
    Messages:
    1,267
    Likes Received:
    2,810
    Location:
    Rochester, New York
    Well we could discuss this forever, suffice it to say the problem with the 570/575s was a combination of too long a shaft on the clutch side of the crank. If you compare a 570/575 crank with a 576 you will see the difference immediately.

    On this subject my bet is with Randy on stress being applied closer to the supporting bearing. All the older saws outboard clutches were the norm, very few crank failures on a 272XP. That being said, casting issues can always rear their head as Brian suggested but they are exaserbated by flaws in the design.

    Last edited: Aug 1, 2014
    KilliansRedLeo, Aug 1, 2014
    #32 Top
    HoneyFuzz likes this.
  13. DexterDay

    DexterDay Administrator

    Joined:
    Oct 2, 2013
    Messages:
    12,411
    Likes Received:
    31,628
    Location:
    Northeast Oh
    Yep :)

    DexterDay, Aug 1, 2014
    #33 Top
    Chvymn99 likes this.
  14. cwn877

    cwn877

    Joined:
    Oct 4, 2013
    Messages:
    1,174
    Likes Received:
    4,541
    Location:
    Central Pa
    What is the jred equivalent and do they have the same issues?

    cwn877, Aug 1, 2014
    #34 Top
  15. DexterDay

    DexterDay Administrator

    Joined:
    Oct 2, 2013
    Messages:
    12,411
    Likes Received:
    31,628
    Location:
    Northeast Oh
    2260 is the 560. They technically don't make a 562xp equivalent. The only difference between a 562 and 560 is the small bar mount (other minor differences that some may point out/top cover). And the 2260 is small mount, like the 560xp. Jonsered doesn't make a large mount model.

    Because they are made by the same Company? I would venture to say that the problems are not just limited to Husq. They share the same engine and design. Just different color and the half wrap is straight across on a Jonsered, and angled on a Husq.

    DexterDay, Aug 1, 2014
    #35 Top
    HoneyFuzz likes this.
  16. cwn877

    cwn877

    Joined:
    Oct 4, 2013
    Messages:
    1,174
    Likes Received:
    4,541
    Location:
    Central Pa
    Thanks dex actually thinking of getting a jred the husky saws I've ran lately are impressive but I need more red in the herd.

    cwn877, Aug 1, 2014
    #36 Top
    HoneyFuzz likes this.
  17. Cut4fun

    Cut4fun

    Joined:
    Mar 18, 2014
    Messages:
    1,941
    Likes Received:
    3,571
    Location:
    OHIO Redneck
    Better check that thread out with the weird wear on the cranks on 261's and 362's. :D

    Cut4fun, Aug 1, 2014
    #37 Top
    Sunfish, clemsonfor, concretegrazer and 1 other person like this.
  18. scooby074

    scooby074

    Joined:
    Sep 22, 2014
    Messages:
    57
    Likes Received:
    142
    Subscribed.

    I got a 2012 09 week, 562 that is about 2 months out of warranty. Apparently, after talking to a new dealer, Im under Bulletin B1200075 (Carb,Coil and linkage). Selling Dealer is giving me a bit of grief that Im out of warranty. I had it to him last fall when I was well under warranty and he said my issues were due to bad gas, not carb and my saw didnt have the bad carb anyways! I ended up paying a diag fee at the time too!

    Now I read about the potential Piston issues. No bulletin for that?

    Hope the dealer gets back to me and does the right thing! pizzes me off that he either missed the bulletin the first time or outright lied that I wasnt under it if he knew.

    scooby074, Nov 27, 2014
