“Walter” the TD6

Discussion in 'Chainsaws and Power Equipment' started by J. Dirt, Jul 2, 2019.

  1. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    2,990
    Likes Received:
    15,475
    Location:
    Ny

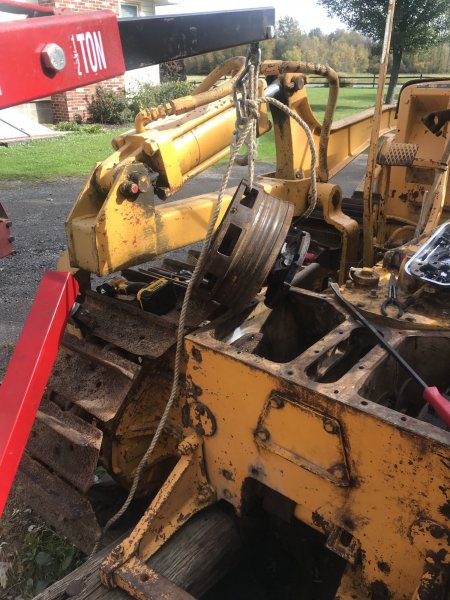

    Good news the right side pivot is out along with clutch fork.

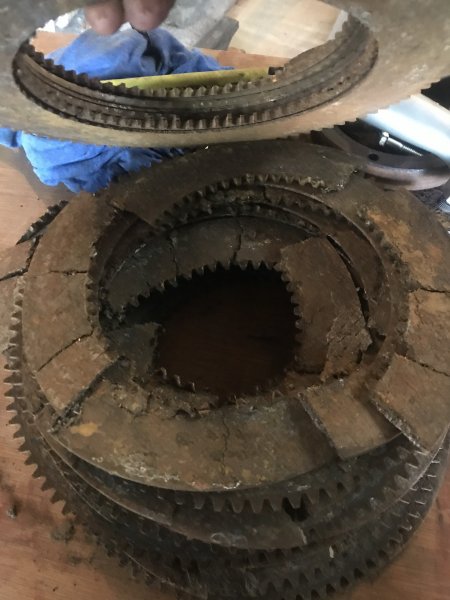

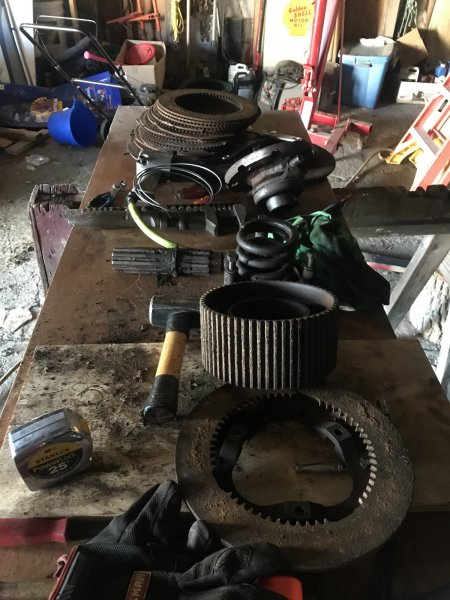

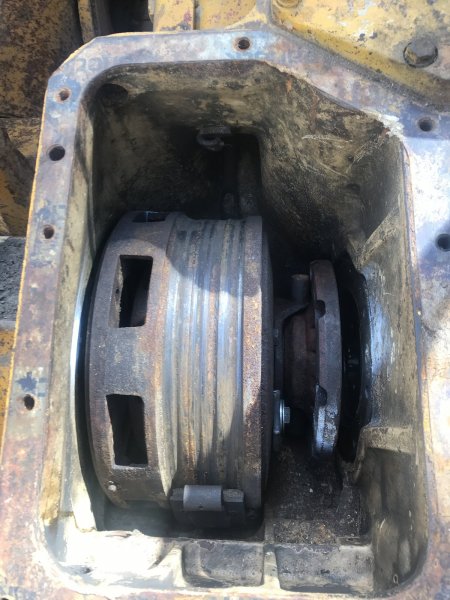

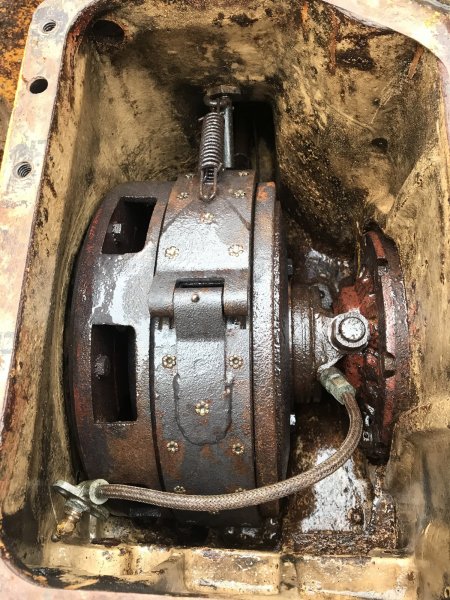

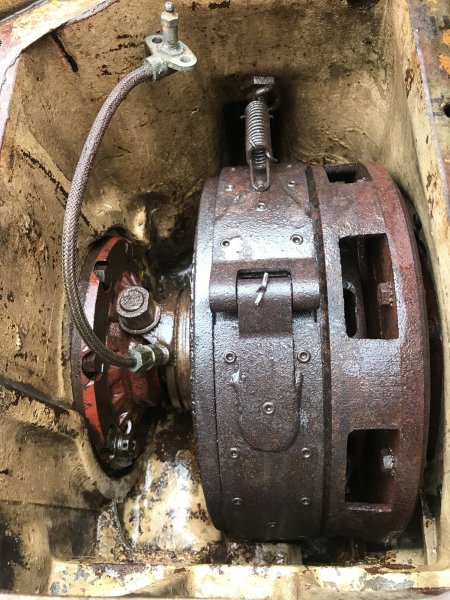

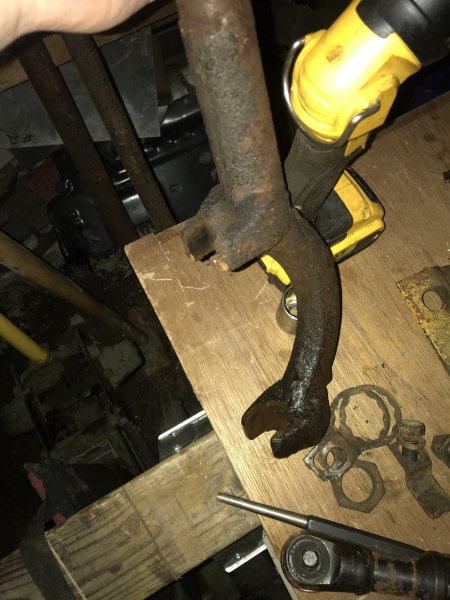

    47FA65E0-B4AD-4AA5-A323-D0C4DB542378.jpeg 94353CEC-BA6D-4FEE-A976-A879C4251540.jpeg 1C51D35B-3070-4091-B1CB-EF7A4689D8A4.jpeg
    Bad news is..... the left side is still stuck, I cracked a piece off the head of the stud and also sheared off the socket I borrowed! :headbang::mad:

  2. eatonpcat

    eatonpcat

    Joined:
    Oct 5, 2013
    Messages:
    4,988
    Likes Received:
    23,308
    Location:
    Eaton Township, OH
    You meant socket I bought! :cool:

  3. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    2,990
    Likes Received:
    15,475
    Location:
    Ny
    Yeah x2! One of which I don’t get to keep. I’m at a point of welding a bolt on to this thing and cranking it out. I’ll have to do some machine work to refit it once I’m done, but I’ve got the other side for a pattern at least.

  4. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    10,428
    Likes Received:
    64,285
    Location:
    NE Ohio
    You mean weld a nut on it and then grind the grooves back in it? I bet that will work...:yes:

  5. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    2,990
    Likes Received:
    15,475
    Location:
    Ny
    Yep! Hope between the weld heat and being able to have something for a socket to bite we’ll get her!

  6. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    10,428
    Likes Received:
    64,285
    Location:
    NE Ohio
    When welding a nut onto a broken off bolt or stud, I usually just plug weld the center of the nut...you could weld a pretty big nut on that pin...then use a big wrench with lots of leverage on it...I'd be shocked if you couldn't back it right out then...

  7. amateur cutter

    amateur cutter

    Joined:
    Oct 6, 2013
    Messages:
    3,030
    Likes Received:
    24,642
    Location:
    Gun Lake MI
    If you have a good air chisel, stick a bit in the slot & rattle the hell out of it before you heat it. Helps more than you think.

    blacksmith, Thor, eatonpcat and 2 others like this.
  8. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    2,990
    Likes Received:
    15,475
    Location:
    Ny

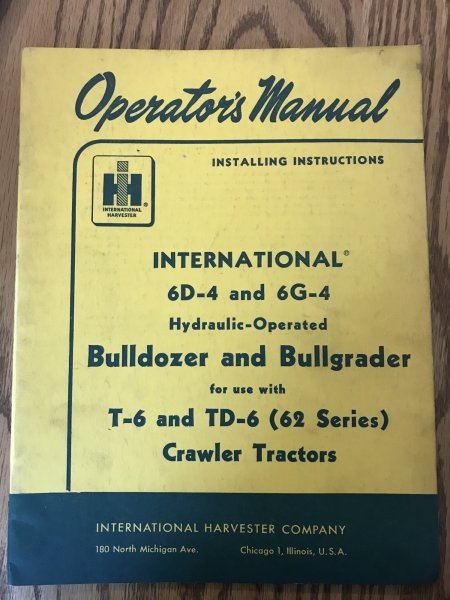

    NOS manual in the mail today to ad to the collection. D57A9C2B-2BDD-4B5D-9E7D-A99FC1D631BF.jpeg

    eatonpcat, Thor, Mtnbikerfred and 2 others like this.
  9. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    2,990
    Likes Received:
    15,475
    Location:
    Ny

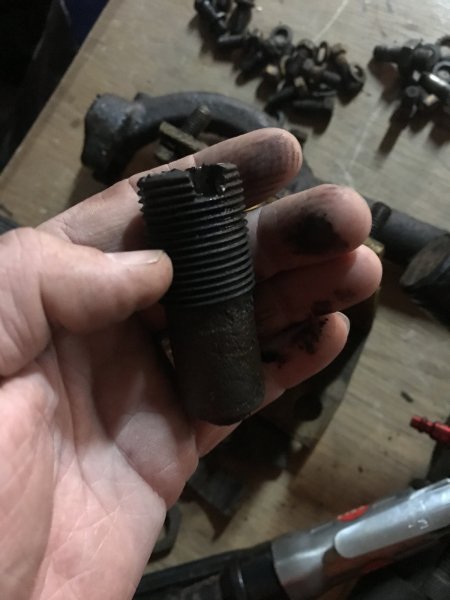

    Well I done did it..... blasted it with the air chisel then tried welding on a big nut. Snapped it off. :mad: Couldn’t get a good shot at it with the welder. So I ground it up nice and took a 5/8 bolt and tapered the end so I could get a good fill on the weld. 5AF38F7A-6AF8-401E-9810-D584CAB56BB9.jpeg Managed to burn my arm through my shirt but got it stuck good! The 3/4” drive breaker bar with a pipe on the handle and broke it free. Switched to the 3/4” ratchet with the pipe and was able to make two clicks per pull:faint:. Three full rotations later it was moving free enough to throw the impact gun on. 46DCCF5A-4401-4828-959C-3574C2213BED.jpeg So it’s out, but I think I’m going to be hunting a replacement or doing some machine work.:thumbs:

    eatonpcat, Thor, Mtnbikerfred and 3 others like this.
  10. B.Brown

    B.Brown

    Joined:
    Jun 26, 2018
    Messages:
    753
    Likes Received:
    5,437
    Location:
    USA
    Way to go!! See, where there's a will, there's a way!!

    eatonpcat, J. Dirt and brenndatomu like this.
  11. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    10,428
    Likes Received:
    64,285
    Location:
    NE Ohio
    I'm sure those pins will see some never-seize going back together...

    eatonpcat, J. Dirt and Mtnbikerfred like this.
  12. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    2,990
    Likes Received:
    15,475
    Location:
    Ny
    I’m going to use a can per stud!!!
    Degreased and washed down ready to pull!

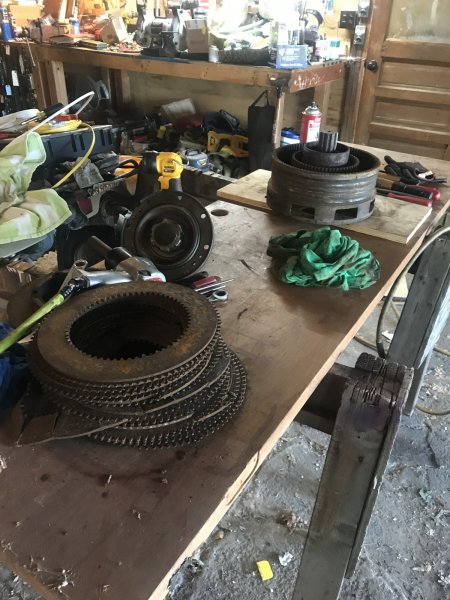

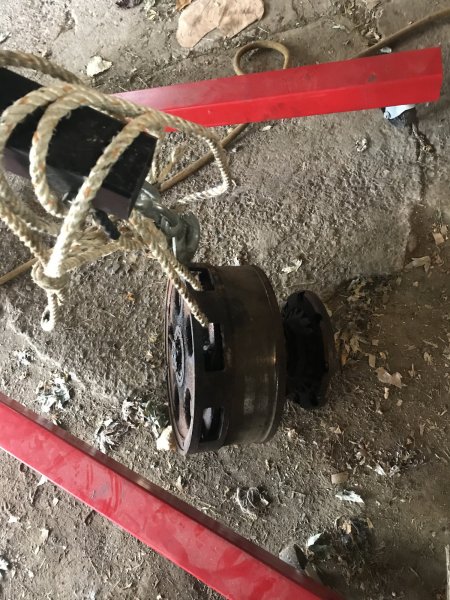

    75FA11E8-C877-4C90-9A60-8817CB424B69.jpeg 0766F588-B91D-437A-9AF5-C28F8E8C1542.jpeg
    That’s it for today...
