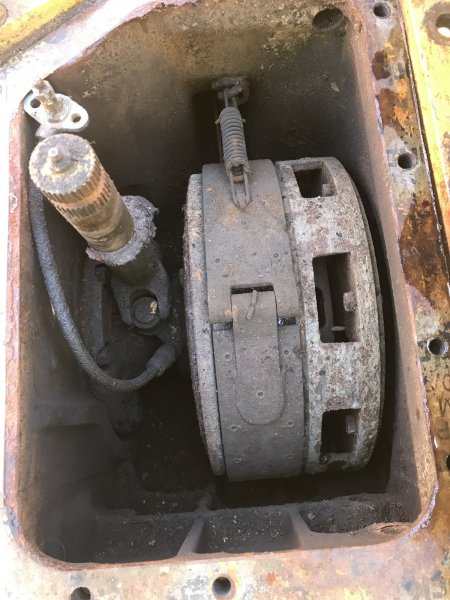

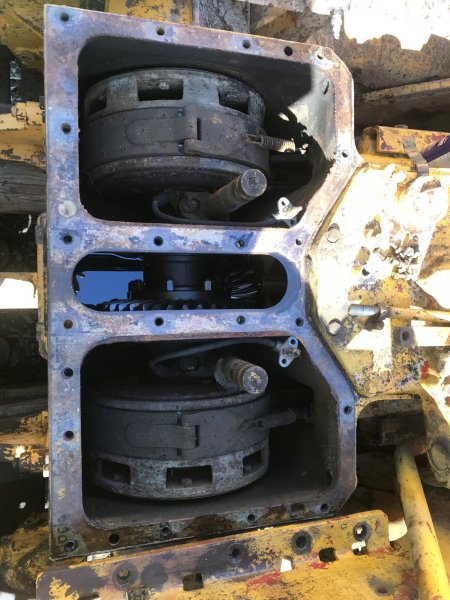

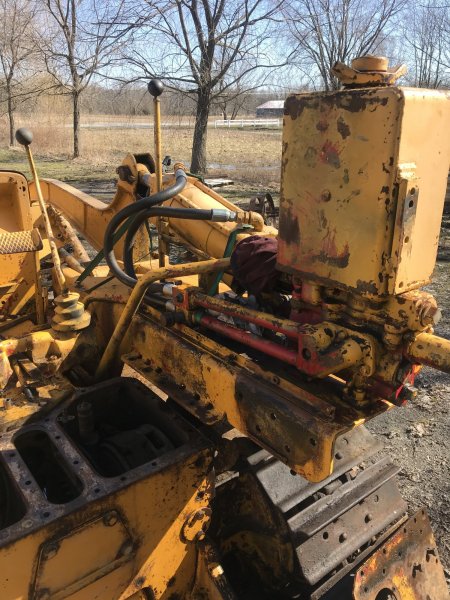

    A little more tear down. Pulled the plumbing to the left side, pulled the left side fender broke one bolt. Unbolted the right side fender leaving the hydraulics attached and ratchet strapped it up out of the way. Removed the clutch springs and linkages and pulled the cover.
    F8D385C9-FD17-4838-B558-E6A6DF4230DC.jpeg A408BD7D-EF32-44FA-A8FC-26F03275CBA7.jpeg 89994CA3-62F6-4A4B-9EB6-937F4DDE8436.jpeg CD192816-C4B0-4A0D-A8E6-662CA0923F3D.jpeg 1A85FFB0-DC88-4B48-B860-91A75D947E30.jpeg

  2. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    To pull the clutches you have to first remove the clutch forks. From the underside of the machine there is a bolt,keeper, jam nut and threaded post/bushing that goes through the casting and into the bottom end of the clutch fork. You have to remove the bolt and the keepers and remove the 1 1/2” jam nut. Once that’s off the threaded post has two slots machines across its face like a big Phillips head screw. That’s the part I’m at now..... The posts are pretty well stuck so I heated with the torch then sprayed the heck out of them. Might give it a shot later with more heat.
    I forgot to mention it’s in a horrible spot, unless you remove the diagonal braces underneath first. I’m trying to do it without, but I may have to.......

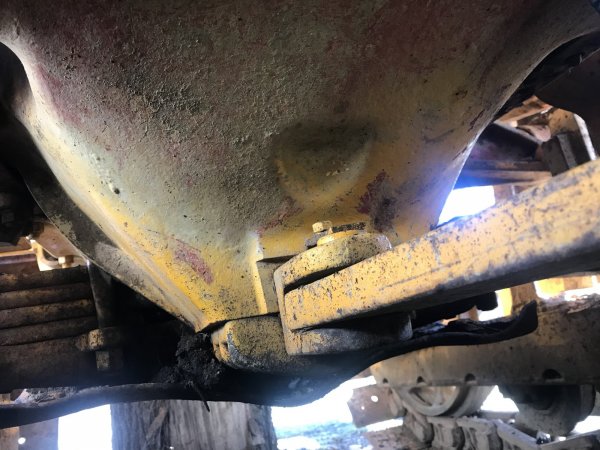

    Here’s the bolt with the keepers and jam nut on. 85C941CA-445F-4FE4-8267-B8B20C457F03.jpeg

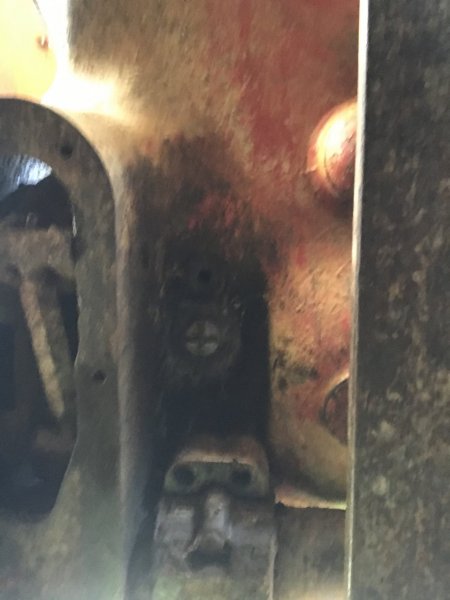

    Looking out of the tight spot I’m in under the back of the tractor. 99D8AF78-1D0F-49EA-B73E-1EB1838DF395.jpeg

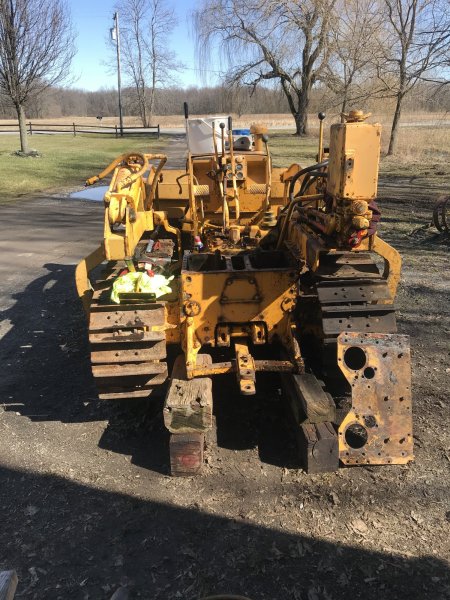

    Shot towards the front.. 4CC73273-3BEC-416A-82AC-E3FDF4BA90C0.jpeg

  3. AJtree88

    AJtree88

    Joined:
    May 15, 2014
    Messages:
    318
    Likes Received:
    1,764
    Cool to see you bringing that ole girl back to life. Probably going to be a few sessions of “heat and beat” along the journey.o_O

  4. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Got that right! Surprisingly hadn’t been to bad so far..... key word so far.....

  5. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Well tried making a tool out of and old wrench with no luck so I decided to give up on the tight quarters work and tear out the diagonal braces.
    Some torch heating, swearing, cheater pipes, 6’ pry bar and 10 lb sledge I got them out! 2CE3E485-89C1-4EFF-B022-EF556DBC6799.jpeg They don’t look like much, but 3” solid square stock they got some weight to them!

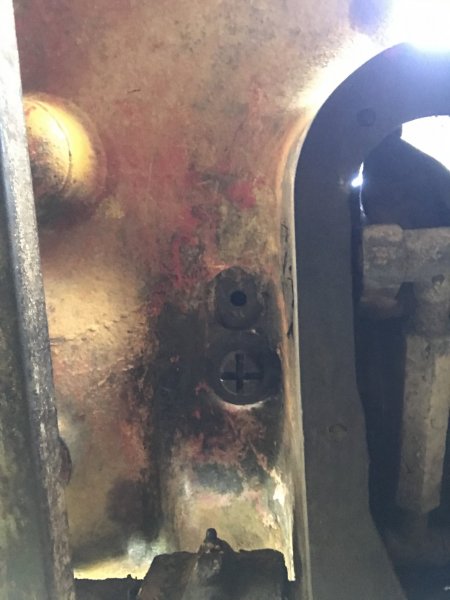

    I made tons of room so I can get at the clutch fork pivot bushings though :dex: Now I’ve got to come up with some sort of giant Phillips head that can go on a breaker bar. I’m thinking on welding something up, but who knows. A15D1DDE-2B45-4A6E-B882-EFEAE7EAF7BF.jpeg C9110EC5-6035-47C5-87D1-F88F065DB94E.jpeg You can see what I’m talking about in these pictures. They are 1” coarse thread studs and I need to be able to get something into those plus looking slots and crank them loose.
    Any thoughts throw them out there....

  6. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    20,438
    Likes Received:
    127,192
    Location:
    NE Ohio
    Hmm...I feel like I have seen a tool like that somewhere in the past...

    amateur cutter and J. Dirt like this.
  7. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Same here just can’t figure where!?
    I thought of taking a socket that fits over the stud and grinding up a grade 8 bolt to fit sideways in the slots. The grinding slots in the socket for the bolt to sit in and tack weld them in place. It’s only one groove that I’d be grabbing, but?????

    amateur cutter and blacksmith like this.
  8. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Drag link socket. 24488E4A-46C0-400E-BB49-C6D05816B8C1.jpeg Talked with the guys in the shop this morning and he said give this a shot. Said he’s used it on Mack truck king pins so it should be strong enough.

  9. brenndatomu

    brenndatomu

    Joined:
    May 29, 2015
    Messages:
    20,438
    Likes Received:
    127,192
    Location:
    NE Ohio
    Yup, there it is! :thumbs: :handshake:

  10. Dumf

    Dumf Banned

    Joined:
    Jan 26, 2016
    Messages:
    916
    Likes Received:
    2,867
    Location:
    Maine
    Hey J., "do not remove label under penalty of law". :rofl: :lol:
    Nice buy, but how do your close neighbors feel about the lovely roar ?

  11. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    6,503
    Likes Received:
    41,176
    Location:
    New Hampshire
    https://www.mscdirect.com/browse/tn...MI6LmTlbax6AIVBG6GCh32GwLBEAQYCCABEgL4afD_BwE how about something like this?

  12. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
  13. Warner

    Warner

    Joined:
    Jun 19, 2017
    Messages:
    6,503
    Likes Received:
    41,176
    Location:
    New Hampshire
    Ahh, yeah that ain’t gonna cut it.

  14. jmb6420

    jmb6420

    Joined:
    Nov 16, 2019
    Messages:
    700
    Likes Received:
    5,546
    Location:
    Grand lake, Oklahoma
    Drag link Socket and maybe some heat. PB blaster to start with.

  15. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Been soaking it down for a while. I’m going to pull on it once no heat then I’m going full torch mode!

  16. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Well just tried that socket and broke the one side free, with the help of a 3’ pipe. Nothing doing on the other side so I’m going to have to lay the heat to it. Maybe tomorrow when I have time and it’s not raining.

  17. jmb6420

    jmb6420

    Joined:
    Nov 16, 2019
    Messages:
    700
    Likes Received:
    5,546
    Location:
    Grand lake, Oklahoma
  18. Jnb

    Jnb

    Joined:
    Sep 22, 2016
    Messages:
    117
    Likes Received:
    558
    Location:
    New Brunswick
    I have run into stuff like that before and the tool you need for that is that hand held impact driver that you hit with a hammer. Like what Warner posted. They do work quite well when you get how to hold it figured out. Easy for me to say that as I already own one, but sometimes you are better off to spend the money on a tool insted of spending hours fooling with something.

  19. Jnb

    Jnb

    Joined:
    Sep 22, 2016
    Messages:
    117
    Likes Received:
    558
    Location:
    New Brunswick
    Ya, you could be right on that tool not being big enough for a 1" diameter stud, I am just catching up now lol.

  20. J. Dirt

    J. Dirt

    Joined:
    Oct 1, 2015
    Messages:
    3,451
    Likes Received:
    18,066
    Location:
    Ny
    Yep, just a bit small for this job. Although it’s on my bucket list of tools because I know how handy they are!
