Updating a Whitfield Advantage to Auto Start Ignition!

Discussion in 'Pellet Stoves, Pellet Fireplaces, Pellet Furnaces' started by don2222, Aug 9, 2018.

  1. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    3,393
    Likes Received:
    4,747
    Location:
    Salem NH
    Hello
    The stove in this example is a Whitfield Advantage Plus. These stoves come with an Igniter tube already installed with a pull out cap on the end of the tube behind the burn pot.
    Just pull out the cap and use some self stick tape to afix the timing module to the bottom of the inside of the back of the stove. Then unscrew in the Igniter from the tube that it comes with and screw it onto the tube in the back of the stove. Use the 6 pin wire adapter, attach it to the control panel and plug in the stove’s wire harnes. Then plug the fuse holder with the 6.3 amp fuse into the timing bock and bingo. All done.
    For the stoves like the Advantage II That do not have the Igniter tube already installed the kit comes with a tube that can be installed and the wire adapter for the 8 pin control panel.
    The stove is much more convienent to start up now and replacing the Igniter in the future is not too hard. :)
    Has anyone else done this?
    See pics

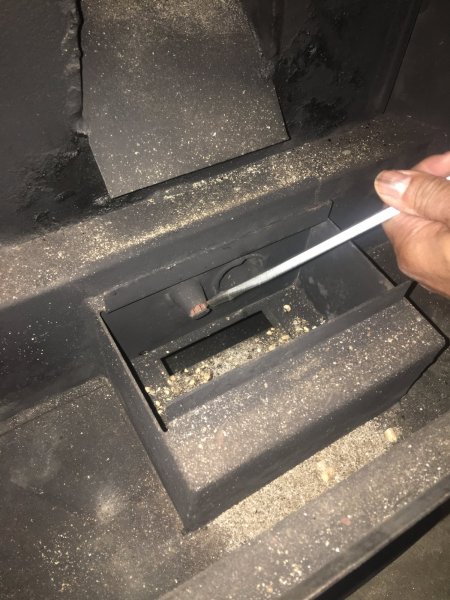

    Pic 1 - Remove cap on Igniter tube with hammer and screw driver
    Pic 2 - Remove Auger Motor to get to back of Igniter tube

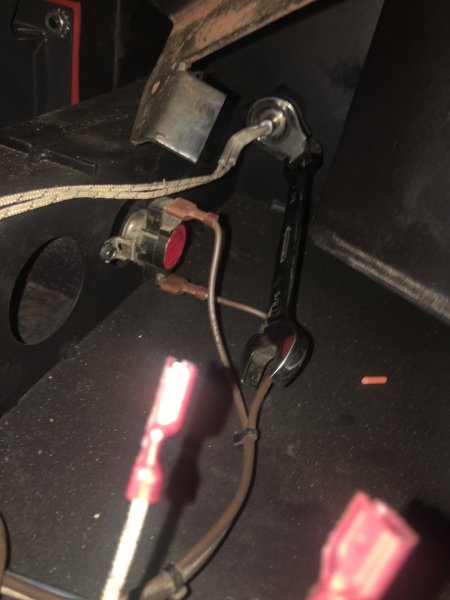

    Pic 3 - tighten Igniter in tube with a flexible head wrench
    Pic 4 - put double sided self stick tape on timing block

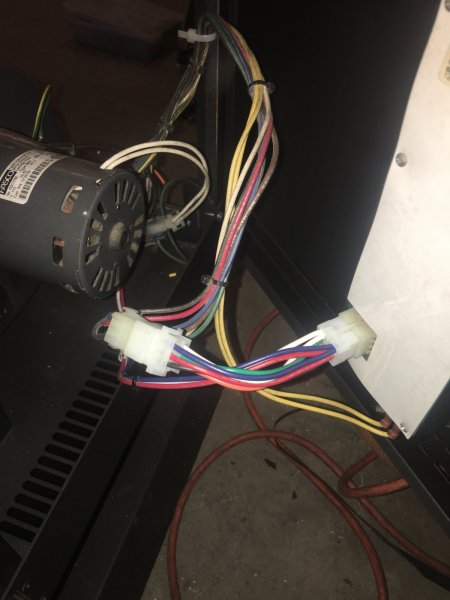

    Pic 5 - wires connected in back of stove
    Pic 6 - wire adapter connected to control panel

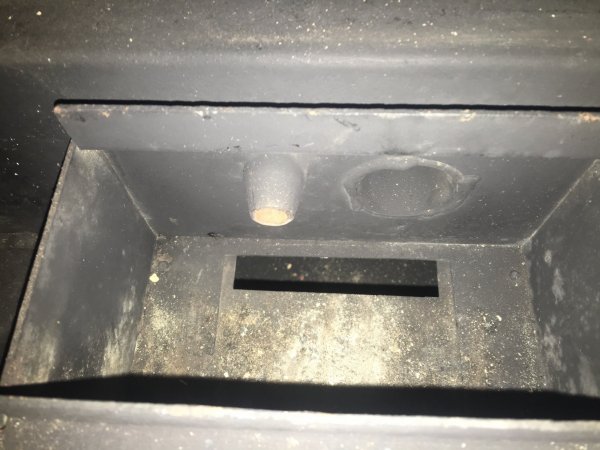

    Pic 7 - Igniter under Burn pot

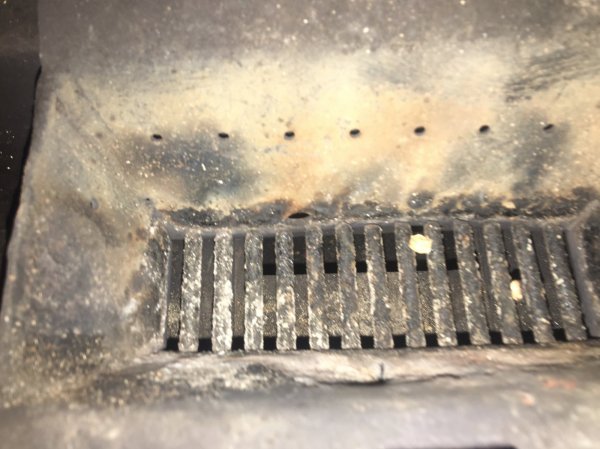

    Pic 8 - 13 bar burnpot with Igniter hole


    Attached Files:

    Last edited: Aug 9, 2018
  2. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    3,393
    Likes Received:
    4,747
    Location:
    Salem NH
    More pics

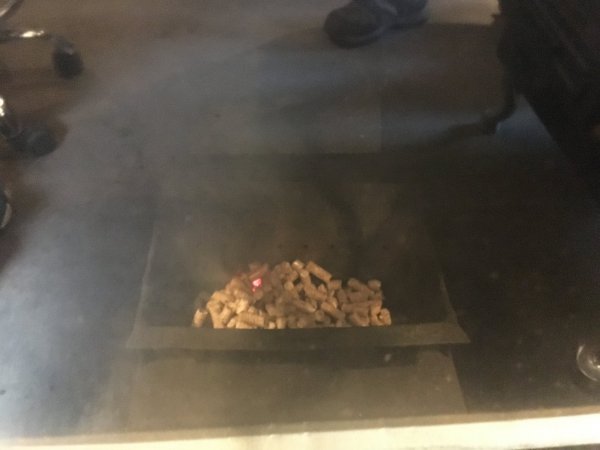

    Igniter time starts it’s 15 minute cycle when the start button is pressed.

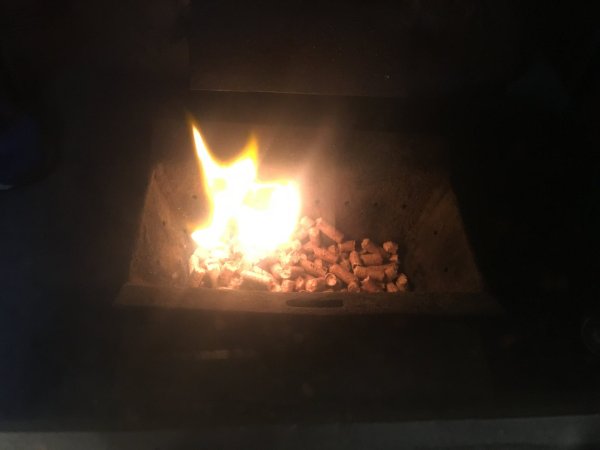

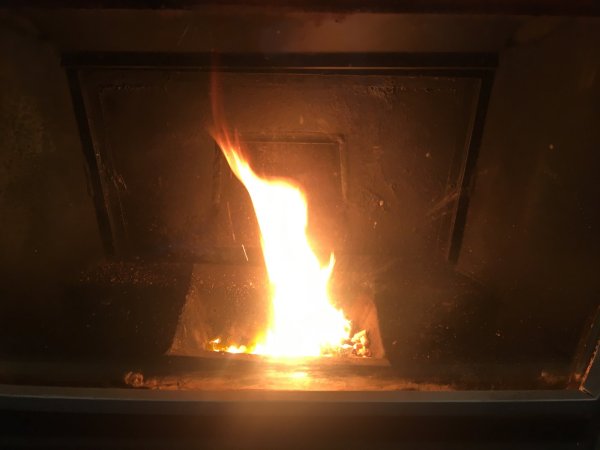

    Smoke & Fire!
