Slow road to 3rd function hydraulics

Discussion in 'Chainsaws and Power Equipment' started by Screwloose, Jan 4, 2020.

  1. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin

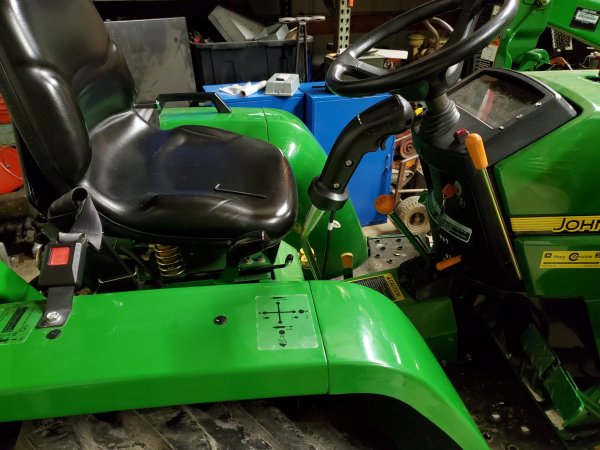

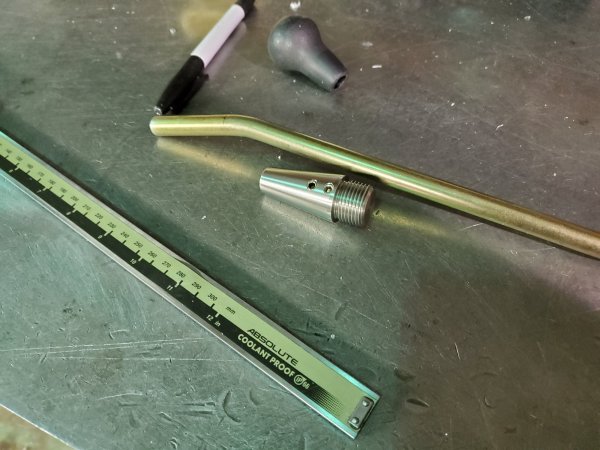

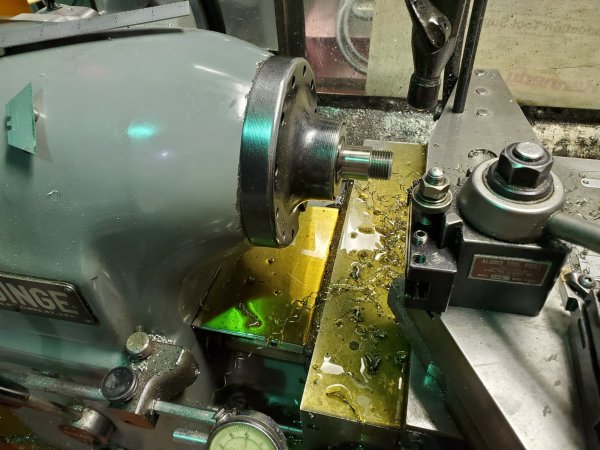

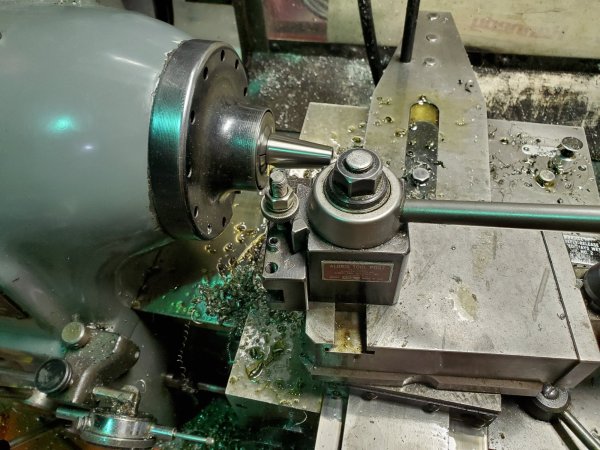

    I thought I might post my adding 3rd function to my tractor. If there's interest. 20200104_151648.jpg This is what I'm starting with 20200104_161332.jpg The control handle is 7/8"14 20200104_171920.jpg The joystick handle is 12mm 20200104_172132.jpg

    XXL, JB Sawman, Hammy and 10 others like this.
  2. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin
  3. Ward Hoarder

    Ward Hoarder

    Joined:
    Dec 20, 2017
    Messages:
    609
    Likes Received:
    4,576
    Location:
    West Virginia
  4. Chaz

    Chaz

    Joined:
    Jan 27, 2018
    Messages:
    8,528
    Likes Received:
    60,018
    Location:
    Southwestern NY
  5. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin
    I still have the rest of it to do but at least I got started. Trying to make my mind up on how/where I'm going to mount the valve.

    Hammy, T.Jeff Veal, Chaz and 8 others like this.
  6. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin
    Thank you.

    Hammy, Chaz, Well Seasoned and 4 others like this.
  7. Jnb

    Jnb

    Joined:
    Sep 22, 2016
    Messages:
    117
    Likes Received:
    558
    Location:
    New Brunswick
    Nice work, show more photos of the tractor and what the 3rd function is going to be used for when complete.

    Hammy, T.Jeff Veal, Chaz and 5 others like this.
  8. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin

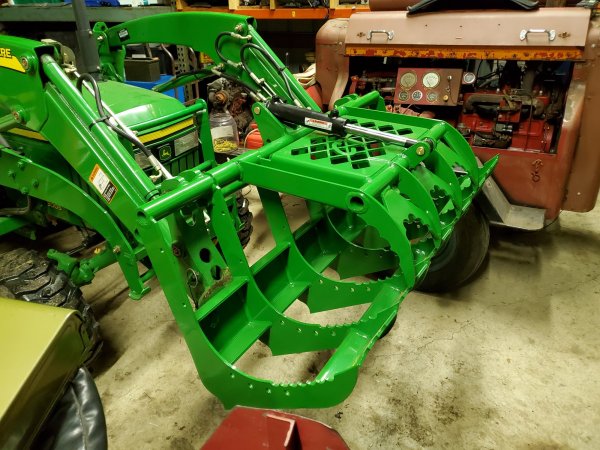

    20200102_181504.jpg This is the main reason for the install.

    XXL, JB Sawman, Hammy and 13 others like this.
  9. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin

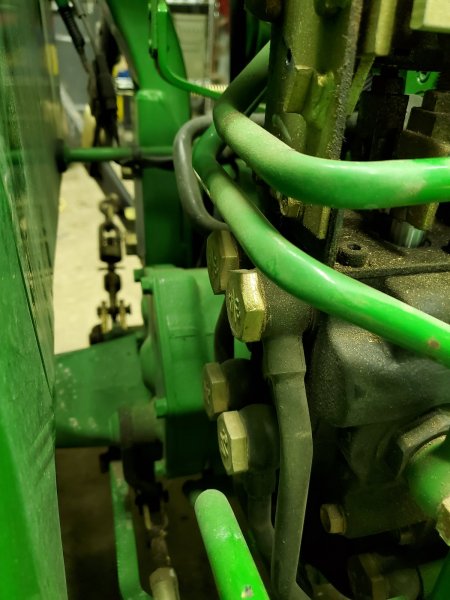

    Tried to put the valve between the existing valve and the fender but it's just to tight. I have reluctantly decided to mount it on the loader tower. 20200116_202934.jpg
    Started flaring and bending the lines that mount on the loader.

    XXL, JB Sawman, Hammy and 16 others like this.
  10. sirbuildalot

    sirbuildalot

    Joined:
    Nov 22, 2019
    Messages:
    3,309
    Likes Received:
    22,069
    Location:
    Mass
    You’re gonna love it. I had mine added by the dealer when I bought my tractor new. It’s mounted on the joystick that operates the loader controls. It’s an electric toggle switch. Asides from the grapple, it’s also really nice for angling a snowplow. I’d like to add a rear remote to my other tractor to operate a hydraulic dump cart.

  11. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin
    I'm looking forward to the angling of the snowplow. Now I disconnect my curl cylinders, kinda a pita.

    Hammy, T.Jeff Veal, Chaz and 6 others like this.
  12. Ward Hoarder

    Ward Hoarder

    Joined:
    Dec 20, 2017
    Messages:
    609
    Likes Received:
    4,576
    Location:
    West Virginia
    Saw a electric grapple for sub compacts today. Made by worksaver $1975.00 due out mid February.
    Sorry didn't think to get a picture.

    Hammy, T.Jeff Veal, Chaz and 3 others like this.
  13. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin

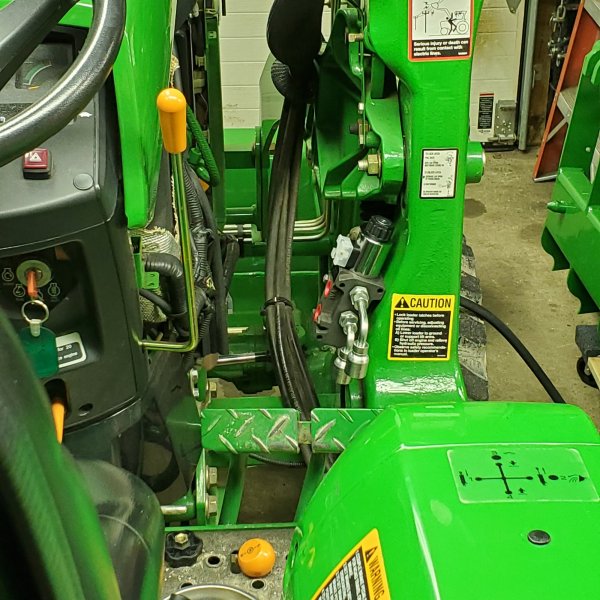

    Had a little bit of time so I got the valve mounted.

    XXL, Hammy, T.Jeff Veal and 9 others like this.
  14. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin
    I just looked it up, pretty cool. Nice and lightweight also.

    XXL, Hammy, T.Jeff Veal and 5 others like this.
  15. Screwloose

    Screwloose

    Joined:
    Jan 15, 2017
    Messages:
    4,751
    Likes Received:
    27,172
    Location:
    SE Wisconsin

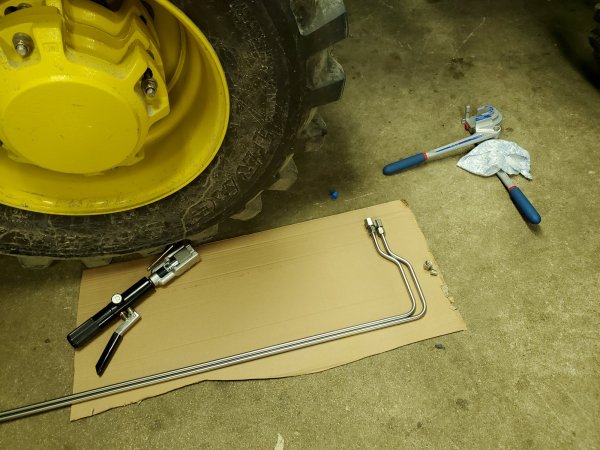

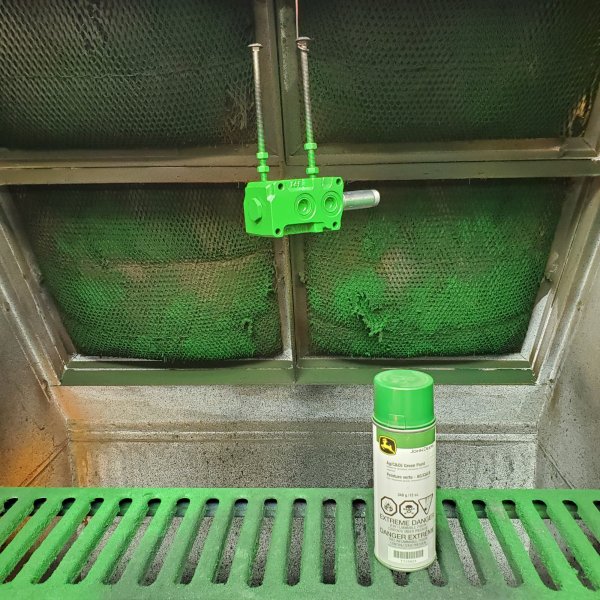

    Finished bending and flaring the stainless lines today. 20200119_204359.jpg Couldn't resist painting the valve.

    XXL, Hammy, T.Jeff Veal and 10 others like this.
  16. fuelrod

    fuelrod

    Joined:
    Oct 4, 2014
    Messages:
    3,340
    Likes Received:
    19,189
    Location:
    Western Maine
    First class work there! :yes:

    Hammy, T.Jeff Veal, Chvymn99 and 6 others like this.
  17. Gary_602z

    Gary_602z

    Joined:
    Oct 4, 2013
    Messages:
    2,464
    Likes Received:
    12,335
    Location:
    Lake Odessa, Michigan
    Oops wrong color!

    Gary

    Hammy, T.Jeff Veal, Chvymn99 and 3 others like this.
  18. Canadian border VT

    Canadian border VT

    Joined:
    Feb 18, 2015
    Messages:
    16,819
    Likes Received:
    108,914
    Location:
    Vermont
    Great explanations :yes:

    Hammy, T.Jeff Veal, Chvymn99 and 2 others like this.
  19. Gasifier

    Gasifier

    Joined:
    Oct 3, 2013
    Messages:
    19,938
    Likes Received:
    98,887
    Location:
    St. Lawrence River Valley, NY
    Nice! :thumbs: I wish I had your talents!

    What model tractor do you have there?
