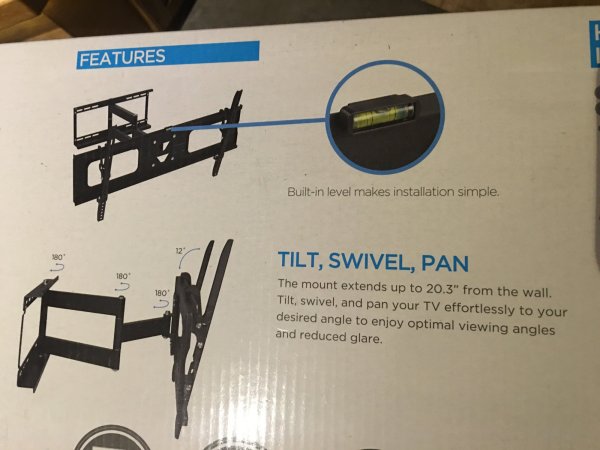

Hello I picked this up from Sears today for the workshop. Has anyone installed one? Exterior wall is open 2x6 framing until this job is done, then we will close it up with Roxul R23 and sheet rock. This is a full motion bracket. Should I build a frame around it? What do you think of a component wall mount below it and 3 inch PVC in the wall to funnel the wires between them? Does anyone have a pic of something like this that you did? Built-in level.

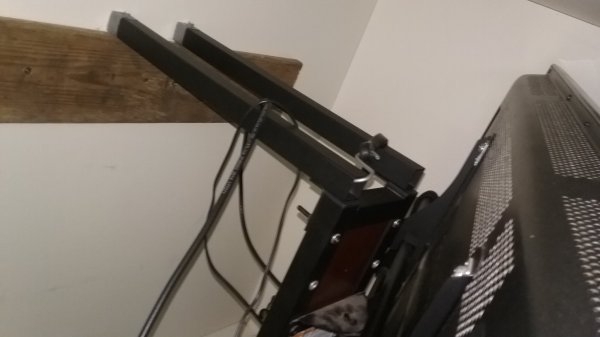

A frame would be good to allow you to go into more than one stud. We were about to go buy one, but custom built a wall mounted swivel from an old entertainment stand that came out nice. PVC pipe is a good idea, something we thought of after the fact....... good luck

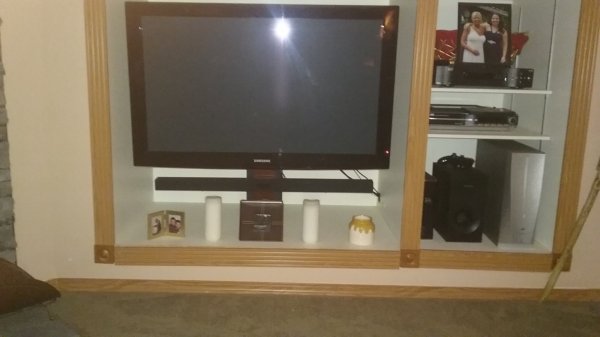

Oops, forgot the pics...... We didn't use pvc, but it would work. Our setup looks better from the front.....
I've put a bunch of them up. If it is a finished wall, use a stud finder and use lags or decent screws to bolt it in the center of the wall stud. The wall mounts are usually wide enough to span to at least two studs. They sell recessed electrical boxes just for wall mount tvs to run power, cable, hdmi, etc up them. They can be mounted up behind the tv.
I have seen the recessed channel box for wires for $75 but a piece of 3" diameter pvc and 2 90 deg fittings might be a lot stronger and a tad cheaper?
They are a lot less expensive than that. I just checked HD website and they start about $25.00. Is the wall an open bay? I'd use some conduit for the cables not the 120v if this wall is going to be insulated. If open, I'd just fish them up. Just me though. Most of these installs I do are on finished walls. Metal interior stud walls are fun.
Exterior wall is open 2x6 framing until this job is done, then we will close it up with Roxul R23 and sheet rock.

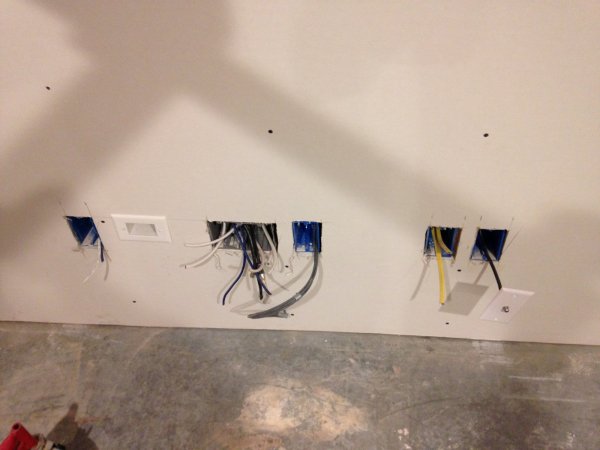

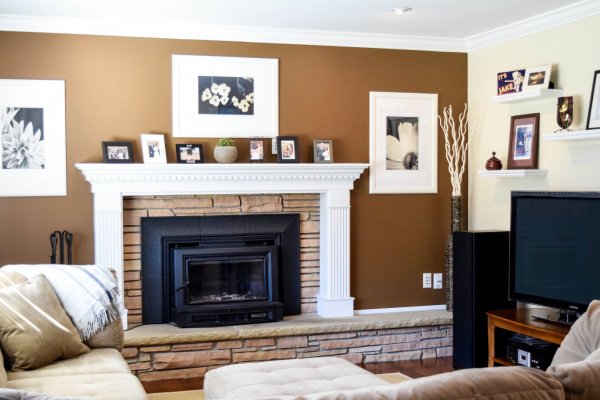

If you look above the mantel and also to the right, just above the hearth, you'll see some flush wall plates. Behind the wall was coax, component and hdmi cables connecting the two wall plates. That allowed me to have short wires to the tv and then the components could be down on the hearth. I took the tv down because I hated it being that high. I added all the wires, outlets and wall plates when I built the wall. That wall is all stone, but it looked very 50's so I built a wall over it and then built the mantel in place. It worked well to hide the wires and cords. The tv mount was lag screwed into 2x6 blocking that I nailed flush between the studs. Plenty of support for a 50" tv. I also had speaker connections built into the wall, next to the other plate. That made it so I could hide speaker wires from the receiver to the front speakers. Little forethought can go a long way to clean up an install.
I have 2 swivel mounts like that installed at my house. One is mounted in brick outside and has supported an "old" 40" Samsung for 3 years now fully extended. The other is inside is holding up a newer and much lighter 50" TV and a center speaker. Since the wall was finished I just put lags into the 2x4 stud and I'm not concerned that it won't be strong enough. It would have been nice to run HDMI and speaker cables and put an outlet in the wall! I used what is essentially a neoprene tube to run all my wires to the receiver and wall plug sitting to the right of the TV. But otherwise I probably would have just run it all naked inside the wall and then put some finished outlets for each in the sheetrock.

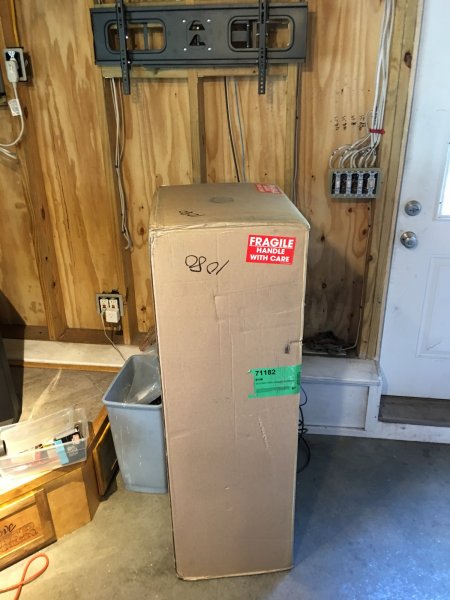

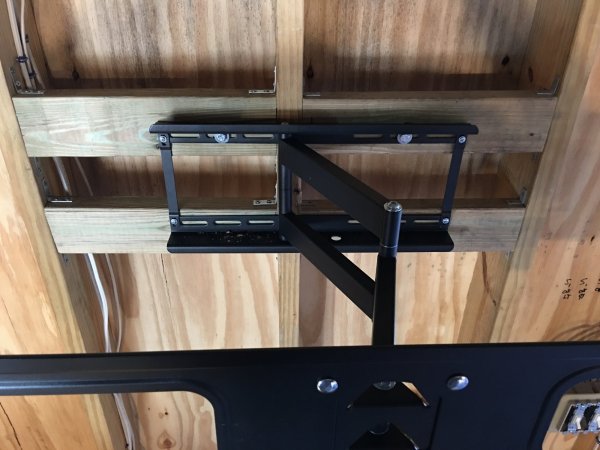

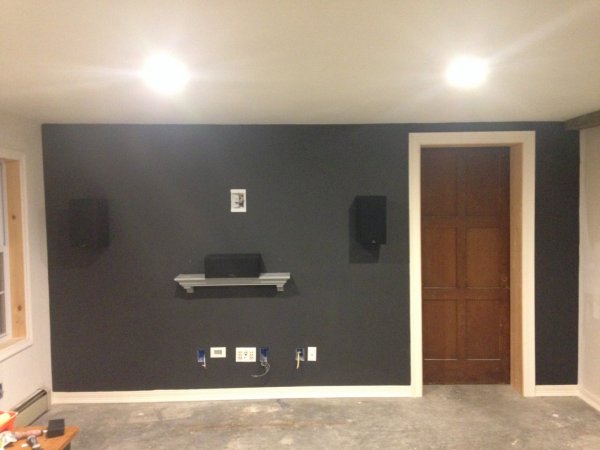

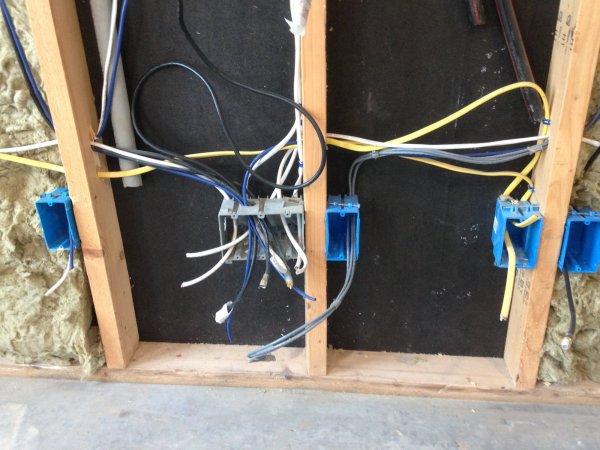

In this case to properly center the TV between the door and the air conditioner, 2x4 wood blocking is a must! Therefore, The Blocking is in for the TV and the bracket is in. Also the black RG-6 cable and blue Cat 5 wire for the 1 GigaBit Internet TV is spiked in. The Floating TV Stand - ECO GEO Mocha was ordered for the surround receiver and should be here soon. See Floating TV Stand - ECO GEO Mocha Also, I did some measuring and I can fit up to a 55" smart flat screen like this Toshiba. Should I go with this to see the YouTube vids? Toshiba - 55" Class (54.6" Diag.) - LED - 1080p - Google Cast - HDTV - Black
Put a 2x6 horizontally between the two studs. Put a regular duplex behind the tv and pvc with 2 90 degree waste ( longer radius) elbows....and another duplex below the TV. Take some measurements and put them somewhere safe...cover it all up and mount your bracket after you've painted.
2x6 where the bracket will mount. Usually can't get 2 bolts on top of each other on a 2x6 depending on the mount.

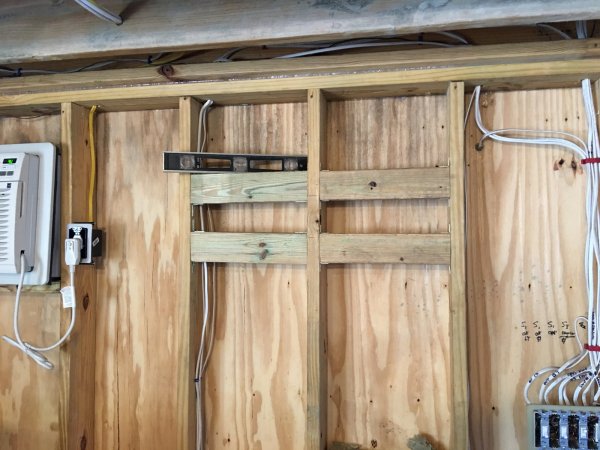

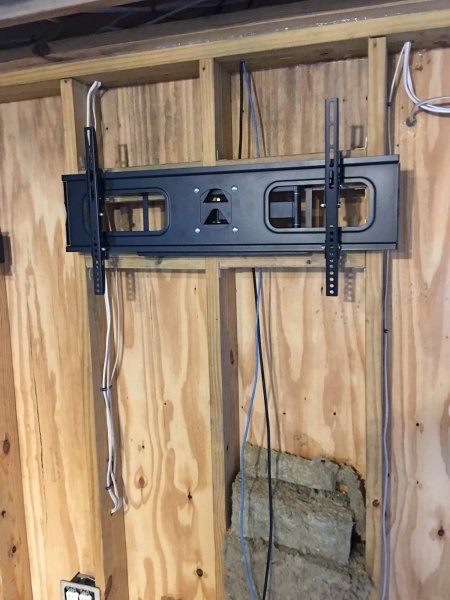

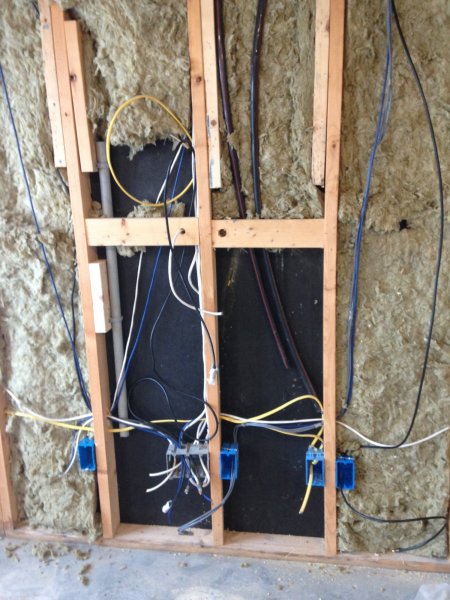

Oh I put 4 - 2x4s because 2 - 2x6s would not be wide enough. Also I need the middle open for the 3" PVC to bring the wires in. See pic below
I did this over the summer. Jack Straw is right. Add blocking everywhere and put the bracket on after drywall. Hitting two 2x4 studs will hold the weight. three is better but not necessary. Plan it out as much as possible- and there will still be things you wish you did different. I'd love to start over, honestly. No one believes the TV was the least expensive piece of this project. ALSO- don't trust the built in level! And decide if you want it level with the floor or the ceiling. It might make a difference.
