Grinder / Vice stand build out of bench weight and hub assembly.

Discussion in 'The DIY Room' started by Pallet Pete, Mar 11, 2018.

  1. Pallet Pete

    Pallet Pete Moderator

    Joined:
    Oct 2, 2013
    Messages:
    13,451
    Likes Received:
    53,866
    Location:
    Ovid
    I have been dabbling with this idea for 2 years and just decided to do it a few weeks ago. Ive got the scrap so why not..... It isn't pretty :emb:but its very functional. The first two attempts failed because the hub assembly's seized up from the welder heat but this one did not seize.

    I am going to drill the hub carefully and install a zerk fitting later so grease can be pumped into it as needed and paint the stand properly but for now it works.

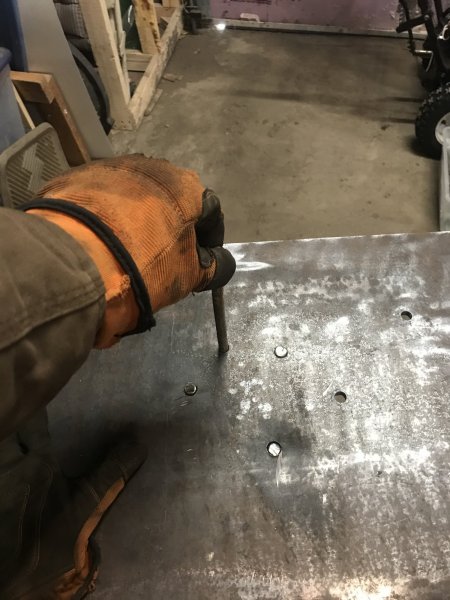

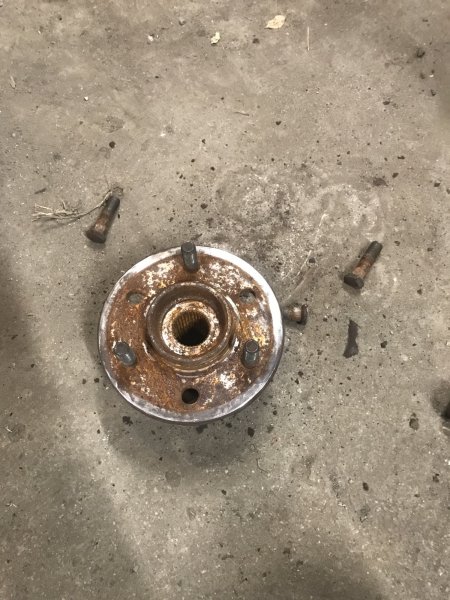

    First pounded out 3 lugs that arent needed.
    Grinder base 2.jpeg
    Then drilled and fited the hub which took a little flap disc work but it came together nice.
    grinder base 3.jpeg
    Then I welded it to the stand top that I built a while back and FAILED miserably to get a good ground on....
    grinder base 4.jpeg

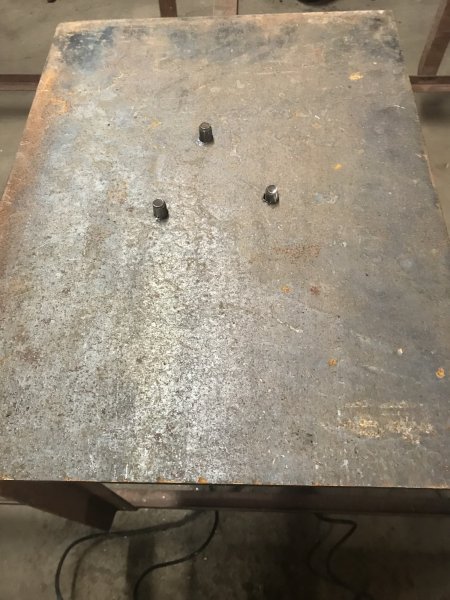

    After it was attached I cut the studs off so I could weld them in. and drilled another hole that utilizes the eye used for mounting the hub to a vehicle as well as one of the stud holes I knocked out of the hub earlier for a pin to hold the table in place.

    grinder base 5.jpeg
    This is where I bolted it all together to see if everything lined up right and it does! You can see where the studs are welded and ground to the top.
    grinder base 6.jpeg
