Cracked and busted Enviro burnpot liner......

Discussion in 'Pellet Stoves, Pellet Fireplaces, Pellet Furnaces' started by jtakeman, Jun 14, 2019.

  1. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills

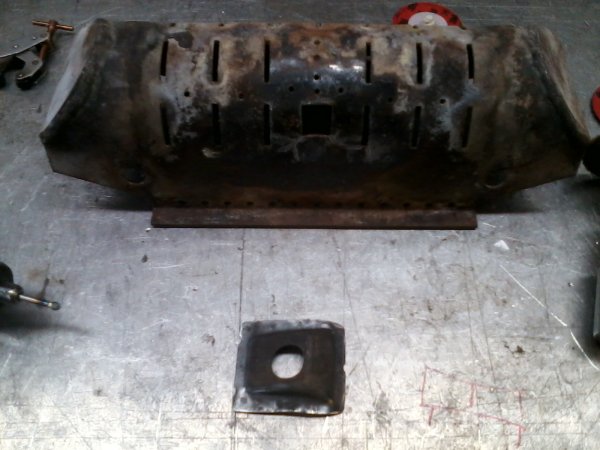

    Had all the wifey todo list items checked off and even had all my fishing gear prepped for the next outing. Got out of work on Wednesday and had some sprinkles and showers. So decided I'd stay ahead of schedule and tore the stove apart to do the inside cleaning. Didn't notice at first that the shield for the igniter was mia.......... And it had cracked more too.

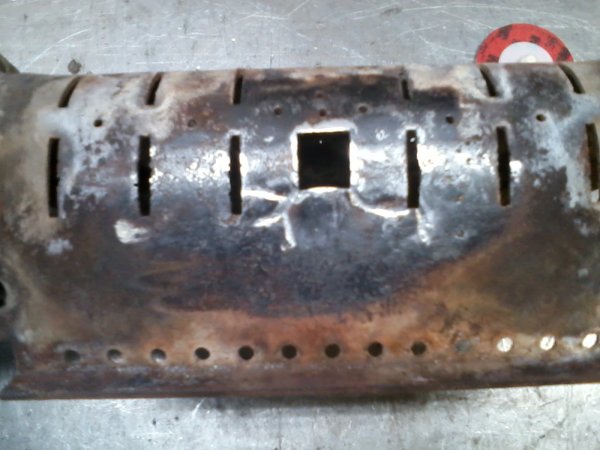

    Smuggled it into work and touched it up on my lunch break. Welded up the cracks first.

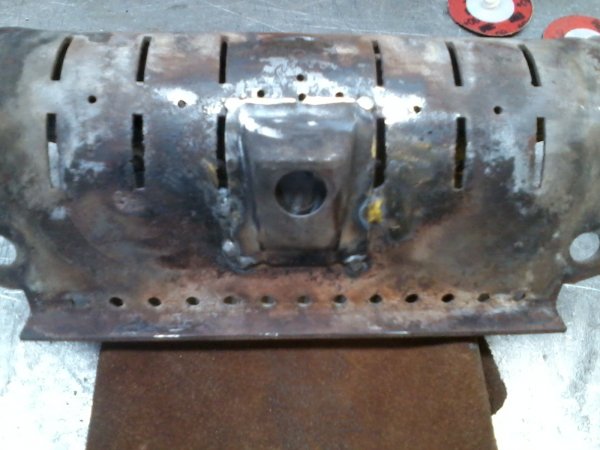

    And then patched the shield back on. Should be good to go for another season or until I can afford to replace it......... :makeitrain"


    Sorry for the crappy pics, My phone is a POS................... :fart:

    gbreda, BHags, eatonpcat and 5 others like this.
  2. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    2,266
    Likes Received:
    2,740
    Location:
    Salem NH
    TIG or MIG?

    wildwest likes this.
  3. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills
  4. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    2,266
    Likes Received:
    2,740
    Location:
    Salem NH
    Good job! I just learned MIG with my Vulcan Multi-Proc. I would like to learn TIG sometime too?
    Here are pics of a HR Saranac burnpot with a hole in the bottom. I cut out the whole slotted bottom with my new simandre plasma cutter and welded 1/4” diameter perforated steel that is a heavier gauge that the original. :)
    Fixing a pellet burn pot burned out bottom?
    This setup was cheap compared to a Miller & Hypotherm!

    Last edited: Jun 14, 2019
    wildwest likes this.
  5. wildwest

    wildwest

    Joined:
    Jul 21, 2014
    Messages:
    19,711
    Likes Received:
    71,415
    Location:
    Wyoming high plains
    :yes:

    imacman likes this.
  6. eatonpcat

    eatonpcat

    Joined:
    Oct 5, 2013
    Messages:
    3,993
    Likes Received:
    16,196
    Location:
    Eaton Township, OH
    Nice fix JT...I finally wore out the burnpot auger you gave me. MY burnpot is still in decent shape, but I will be buying the piece that sits on top of it soon!

    jtakeman and imacman like this.
  7. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills
    I think I can get one more season out of mine and I'll be making another. Might try inconel next, But need to find the filler rod.

    Wished I knew what the original Omega was made from. I got like 7 years out of that one..................

    badbob, slvrblkk and imacman like this.
  8. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills
    Not really, The shield doesn't seem to be the same material as the burn pot. So I had to blob it on with nic-alloy filler rod! Looks like pigeon chit to me........

    The liner welds were easy as it fused nicely with the 316-SS filler rod!!

    badbob, gbreda, slvrblkk and 2 others like this.
  9. badbob

    badbob

    Joined:
    Apr 23, 2014
    Messages:
    2,126
    Likes Received:
    8,430
    Location:
    bozeman pass,park county,MT 6500'
    Never learned TIG, always wanted to, but your work seems awesome.

    imacman and jtakeman like this.
  10. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    2,266
    Likes Received:
    2,740
    Location:
    Salem NH
    I am a MiG Man too but TIG is the best way for a little Stainless Steel touch up. Good Job Jay!


    Last edited: Jun 18, 2019
  11. Skier76

    Skier76

    Joined:
    Dec 27, 2014
    Messages:
    340
    Likes Received:
    1,379
    Location:
    CT and SoVT
    Nice work! Looks like you modded the burnpot a bit with a few drilled holes? I have the insert version of this stove. If I don't empty the ash pan frequently, those air vents get blocked pretty quickly.

    imacman and jtakeman like this.
  12. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills
    Yes, Did that a while ago to reduce carbon build up. Helped a bit, But still get some. I might try a bit larger holes.

    Skier76 and imacman like this.
  13. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    2,266
    Likes Received:
    2,740
    Location:
    Salem NH
    1/4” diameter holes are optimum for wood pellets, many multi-fuel stoves have small about 3/32” holes for corn. Some stoves such as the BC-AC and PC-45 have a burn pot optimized for each fuel. :)
    Corn pots may have more holes higher up on the sides.

  14. Snowy Rivers

    Snowy Rivers

    Joined:
    Nov 15, 2015
    Messages:
    1,831
    Likes Received:
    8,193
    Location:
    Newberg, Oregon
    Tig machine is sweet for light gauge metals.

    Badbob

    The physical part of the TIG process are similar to OXY ACET welding.

    The Tig torch creates an inert gas shielded intense heat source (Controlled by a foot pedal on many machines) the filler metal is added by the opposite hand from your torch hand right into the weld puddle.

    The Tig is the best for delicate work where you need to do quick heat control to avoid burn through of the parent metal.

    The one downside to any of the inert gas shielded welding methods is that the material needs to be VERY clean.

    Carbon, rust and other contaminants will make life miserable for ya.

  15. don2222

    don2222

    Joined:
    Nov 10, 2013
    Messages:
    2,266
    Likes Received:
    2,740
    Location:
    Salem NH

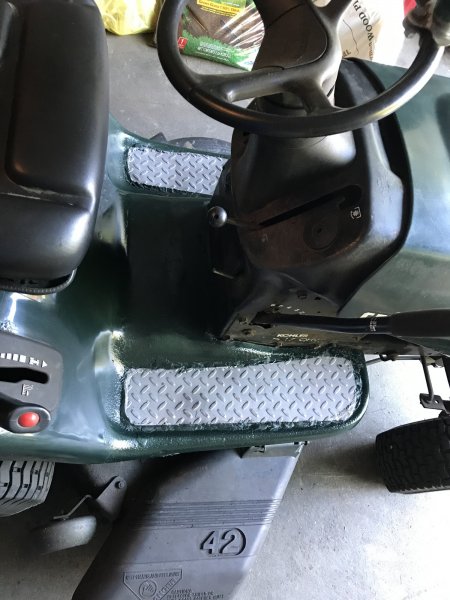

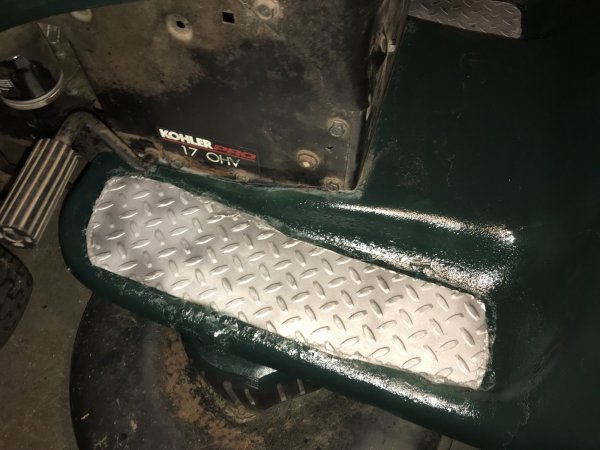

    I had a tricky time with welding the lawn tractor diamond steel pads on because of the rust even with the MIG gun but the presets really helped after measuring the gauge of metal,
    Should last longer than the rubber pads. :)


    Attached Files:

  16. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills
    I've always suggest to people if they can braze? They should be able to tig.

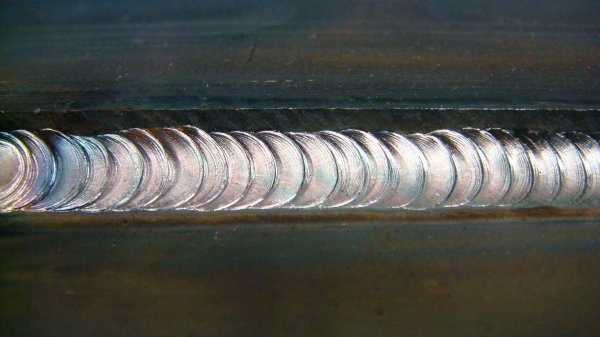

    Getting dimes to stack is what takes practice. ;)

    imacman likes this.
  17. Snowy Rivers

    Snowy Rivers

    Joined:
    Nov 15, 2015
    Messages:
    1,831
    Likes Received:
    8,193
    Location:
    Newberg, Oregon
    Yesssss... just like brazing....well very similar.....
    The dimes ...hmmmmm

  18. jtakeman

    jtakeman Moderator

    Joined:
    Oct 4, 2013
    Messages:
    9,727
    Likes Received:
    41,927
    Location:
    NW CT foothills

    Ssyko and imacman like this.
  19. Snowy Rivers

    Snowy Rivers

    Joined:
    Nov 15, 2015
    Messages:
    1,831
    Likes Received:
    8,193
    Location:
    Newberg, Oregon
    I been in and around the welding trade for many years...never heard it called that...

    Appropriate analogy though....
