Bixby's convection fan stopped by itself.

Discussion in 'Pellet Stoves, Pellet Fireplaces, Pellet Furnaces' started by climber, Mar 3, 2018.

  1. climber

    climber

    Joined:
    Mar 3, 2018
    Messages:
    5
    Likes Received:
    26
    Location:
    18431
    The convection fan of my Bixby was lazy lately, worked with audible interruptions and eventually stopped. It was making a chirping sound now and then. Sounded like a bad bearing to me. The stove is very clean inside and was well-maintained.

    When I noticed there was no airflow from convection vents, I just shut the stove down to avoid overheating. In a few hours I turned the stove on (the lowest setting), opened the side and saw the fan rotating slowly so I could easily stop it with a finger. Occasionally the fan would stat running if I turned it with a finger as well. Sometimes it would start by itself, run slowly and stop again. Never moved to high RPM mode.

    What's wrong? How can I make sure the problem is the fan itself and not some other electrical components? I can remove the fan if necessary. Thank you for any helpful information.

    Eric VW, CleanFire, slvrblkk and 2 others like this.
  2. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
    First off, welcome to the show !!

    I dont know anything about your stove but is sure sound to me like the motor is kaput. Are there any oil ports that you can put a few drops into? Maybe that might help it along.

    Eric VW, CleanFire, slvrblkk and 2 others like this.
  3. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
    OK, I assume you have the Bixby MaxFire

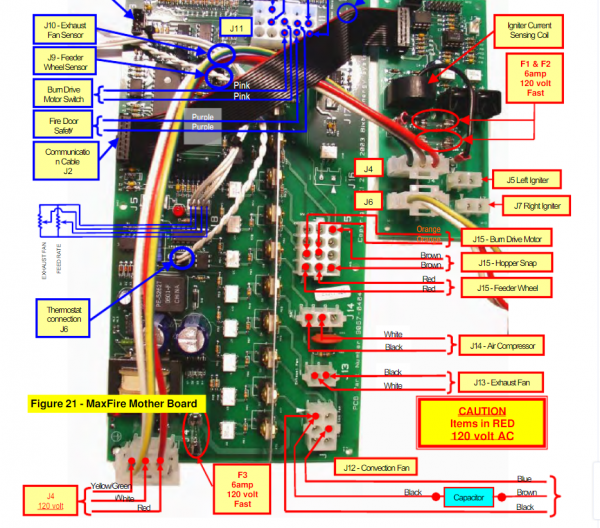

    Looking at the motherboard, it appears that the convection fan runs on 120c ac. That being said, IF YOU ARE HANDY AND COMPETENT WITH ELECTRICAL you MiGHT be able remove the fan and make up a connector to a lamp cord to see of the motor works. this should out it at full speed when plugged in to a wall outlet.

    EDIT_not sure what the capacitor is there for on the convection fan circuit. Maybe some members with more electrical experience can chime in here


    Last edited: Mar 3, 2018
    Eric VW, CleanFire, slvrblkk and 3 others like this.
  4. climber

    climber

    Joined:
    Mar 3, 2018
    Messages:
    5
    Likes Received:
    26
    Location:
    18431
    Gbreda,
    Thank you for welcome and the schematic. I will try that. It looks like the capacitor is on the motor.

    Eric VW, CleanFire, slvrblkk and 3 others like this.
  5. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
    How many wires are going to the motor? If its only 2 then you will likely be in good shape as long as they are marked. You dont want to blow the capacitor.

    Although I really do think your motor is dead.

    Eric VW, CleanFire, slvrblkk and 3 others like this.
  6. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
    Last edited: Mar 3, 2018
    Eric VW, CleanFire, slvrblkk and 3 others like this.
  7. climber

    climber

    Joined:
    Mar 3, 2018
    Messages:
    5
    Likes Received:
    26
    Location:
    18431
    Thank you for advice and links. I will see when I pull the motor out of the stove tomorrow. Will update tomorrow.

    Eric VW, CleanFire, gbreda and 3 others like this.
  8. CleanFire

    CleanFire

    Joined:
    Aug 28, 2015
    Messages:
    2,997
    Likes Received:
    16,525
    Location:
    .
    G, This may help explain it:

    Why Does an AC Motor Need a Capacitor to Start?

    Eric VW, slvrblkk and gbreda like this.
  9. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
    Last edited: Mar 4, 2018
  10. ivanhoe

    ivanhoe

    Joined:
    Oct 18, 2013
    Messages:
    2,979
    Likes Received:
    11,867
    Location:
    Northern Ontario
    X2 :handshake:

    CleanFire and Eric VW like this.
  11. Eric VW

    Eric VW Moderator

    Joined:
    Jan 6, 2015
    Messages:
    23,562
    Likes Received:
    133,142
    Location:
    US
    Welcome @climber:handshake:
    Any update?

    ivanhoe and CleanFire like this.
  12. ivanhoe

    ivanhoe

    Joined:
    Oct 18, 2013
    Messages:
    2,979
    Likes Received:
    11,867
    Location:
    Northern Ontario
    X2 :handshake:

    CleanFire and Eric VW like this.
  13. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
  14. climber

    climber

    Joined:
    Mar 3, 2018
    Messages:
    5
    Likes Received:
    26
    Location:
    18431
    Thank you.
    Took the fan assembly out of the stove and tested it with 115 V AC. Ran well but a bit noisy. Never stopped and did not heat up as it did onside of the stove. The bearings are probably need to be replaced, but there may be some other problems with stove electronics as well.

  15. gbreda

    gbreda

    Joined:
    Oct 17, 2013
    Messages:
    7,431
    Likes Received:
    36,791
    Location:
    NH
    Was the capacitor in the circuit you used? After reading the ling from cleanfire, wonder if the cap could be bad?

    Also, are there any oil ports? That might get rid of the noise and help the bearing/bushings. I just repaired a garage door opener by replacing the worn plastic drive gears. After it was done a bushing was squealing like a pig-hit it with spray graphite and all has been quiet since.

    imacman, CleanFire and Eric VW like this.
  16. Eric VW

    Eric VW Moderator

    Joined:
    Jan 6, 2015
    Messages:
    23,562
    Likes Received:
    133,142
    Location:
    US
    Was thinking the same thing about the cap(s)...:yes:

  17. climber

    climber

    Joined:
    Mar 3, 2018
    Messages:
    5
    Likes Received:
    26
    Location:
    18431
    Sure, I have tested it with its own capacitor attached. I do not think those bearings are serviceable. They are most likely greased, sealed ones.

    imacman, gbreda, ivanhoe and 2 others like this.
  18. Eric VW

    Eric VW Moderator

    Joined:
    Jan 6, 2015
    Messages:
    23,562
    Likes Received:
    133,142
    Location:
    US
    Hope you can fix it up on the cheap!:thumbs:
