My poor little piston (What caused this?)

Discussion in 'Chainsaws and Power Equipment' started by Allen Lee, Dec 8, 2015.

  1. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California

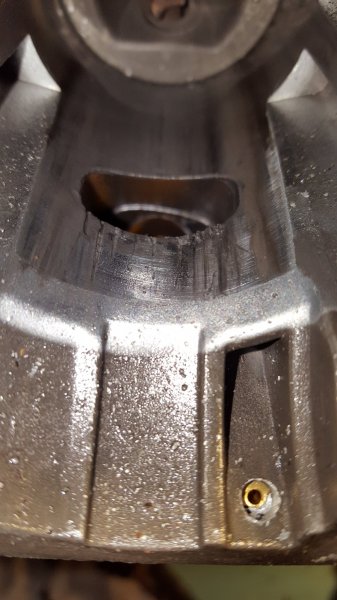

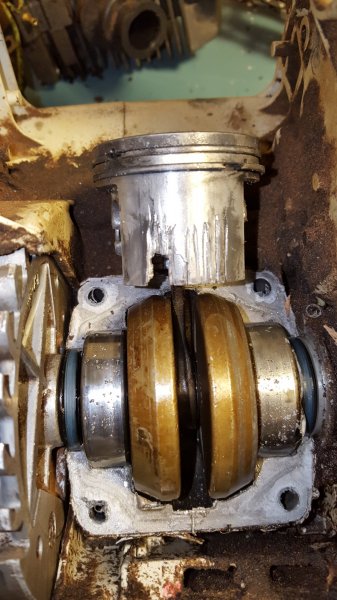

    Hey guys as I posted in another thread, I recently purchased my first chain saw and learned a big lesson. . (Don't buy a used chainsaw off Craigslist unless you know what your looking at. .) I bought a stihl 029 super that I found out after that it's motor is blown. Well I am taking it apart to put a new motor in it (49mm) and I got a glimpse of the piston and I wanted to see if you guys could offer me insight on what could cause this damage? Because I don't want this to happen to me, I want to learn. uploadfromtaptalk1449551223752.jpg Thanks guys! uploadfromtaptalk1449551170524.jpg

    wildwest likes this.
  2. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    8,616
    Likes Received:
    21,253
    Location:
    Greenville County SC
    Debris ingestion. It swallowed something it wasn't supposed to.

  3. Horkn

    Horkn

    Joined:
    Dec 17, 2014
    Messages:
    10,298
    Likes Received:
    37,387
    Location:
    SE Wisconsin
    Yeah, that isn't pretty.

    Fix it up, and only let it ingest good stuff:)

    Allen Lee likes this.
  4. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    Thanks! How did it get something nasty in it you think?

  5. Guido Salvage

    Guido Salvage

    Joined:
    Oct 5, 2013
    Messages:
    1,742
    Likes Received:
    4,925
    Location:
    The heart of the Bluegrass
    Does it have an air filter? Is there a lot of carbon buildup around the exhaust port?

  6. cnice_37

    cnice_37

    Joined:
    Oct 4, 2013
    Messages:
    2,445
    Likes Received:
    8,674
    Location:
    SE Mass
    Is the locating pin in there on that second ring?

    Horkn, pantelis, MasterMech and 2 others like this.
  7. Barcroftb

    Barcroftb

    Joined:
    Sep 30, 2015
    Messages:
    1,258
    Likes Received:
    5,439
    Location:
    The Mitten
    X 2 on the locating pin.

    Horkn likes this.
  8. Mastermind

    Mastermind

    Joined:
    Oct 5, 2013
    Messages:
    1,221
    Likes Received:
    5,210
    Location:
    Tennessee
    I'd like to see some pics of the outside of that jug. Looks aftermarket.

    You also need to take the bottom pan out of it. First you remove the rear bar stud.......

    Then clean every part throughly.

    Horkn, cus_deluxe and MasterMech like this.
  9. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    Ahh now that I look at ot, the locating pin does appear to be missing on #2 ring. Could this have caused damage? It has an air filter, I will post more pics of the outside tonight.

    wildwest and Horkn like this.
  10. redneckdan

    redneckdan

    Joined:
    Sep 14, 2014
    Messages:
    624
    Likes Received:
    1,796
    Location:
    Northern Minnesota
    My money is on locator pin based on the skirt and port damage.

    Sadly, I've been there too. I've gotten screwed on every major purchase on craigslist in this area. Dunno what it is about this area, but people don't take care of their stuff. I grew up in an area where money was tight for everybody, people took care of stuff.

    Allen Lee likes this.
  11. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    Ya, it's amazing how people sell janky stuff too. So it sounds like the locater pin came out?

    Horkn likes this.
  12. Cut4fun

    Cut4fun

    Joined:
    Mar 18, 2014
    Messages:
    1,947
    Likes Received:
    3,571
    Location:
    OHIO Redneck
    Wow o_O my 1st used saw purchase was a burn too off FEEbay. Look what that lead too. :thumbs:

    Enjoy the ride and learning.

    Horkn, cus_deluxe and cnice_37 like this.
  13. cnice_37

    cnice_37

    Joined:
    Oct 4, 2013
    Messages:
    2,445
    Likes Received:
    8,674
    Location:
    SE Mass
    It could be there, the pic makes it hard to see.

    If it comes out in the saw... well yeah that's a problem. If it isn't there to start with then those ring ends move, get caught on the intake, yep could certainly hurt too. Just a guess from a picture.

    Horkn and Allen Lee like this.
  14. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    Ahh I see. Thanks for the input, I will take a close look after work, and post some more pictures.

    Horkn likes this.
  15. MasterMech

    MasterMech The Mechanical Moderator

    Joined:
    Oct 2, 2013
    Messages:
    8,616
    Likes Received:
    21,253
    Location:
    Greenville County SC
    I'm looking at the piston photo and it looks like the pin may have loosened and left a tell tale gouge just underneath and to the left?

    Horkn and Allen Lee like this.
  16. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    I see that too, the mark is almost going right to where all the damage is.

    Horkn likes this.
  17. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California

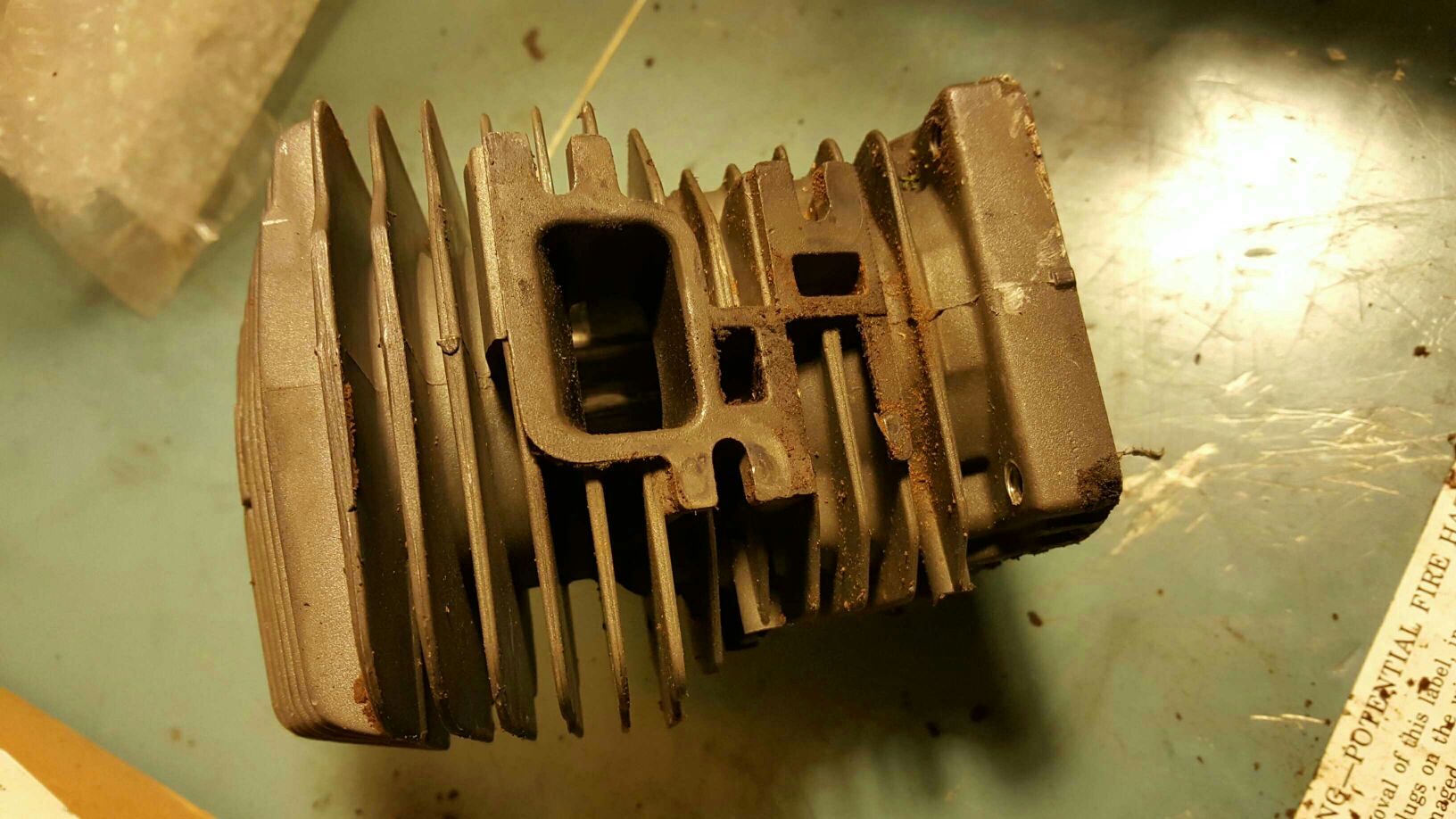

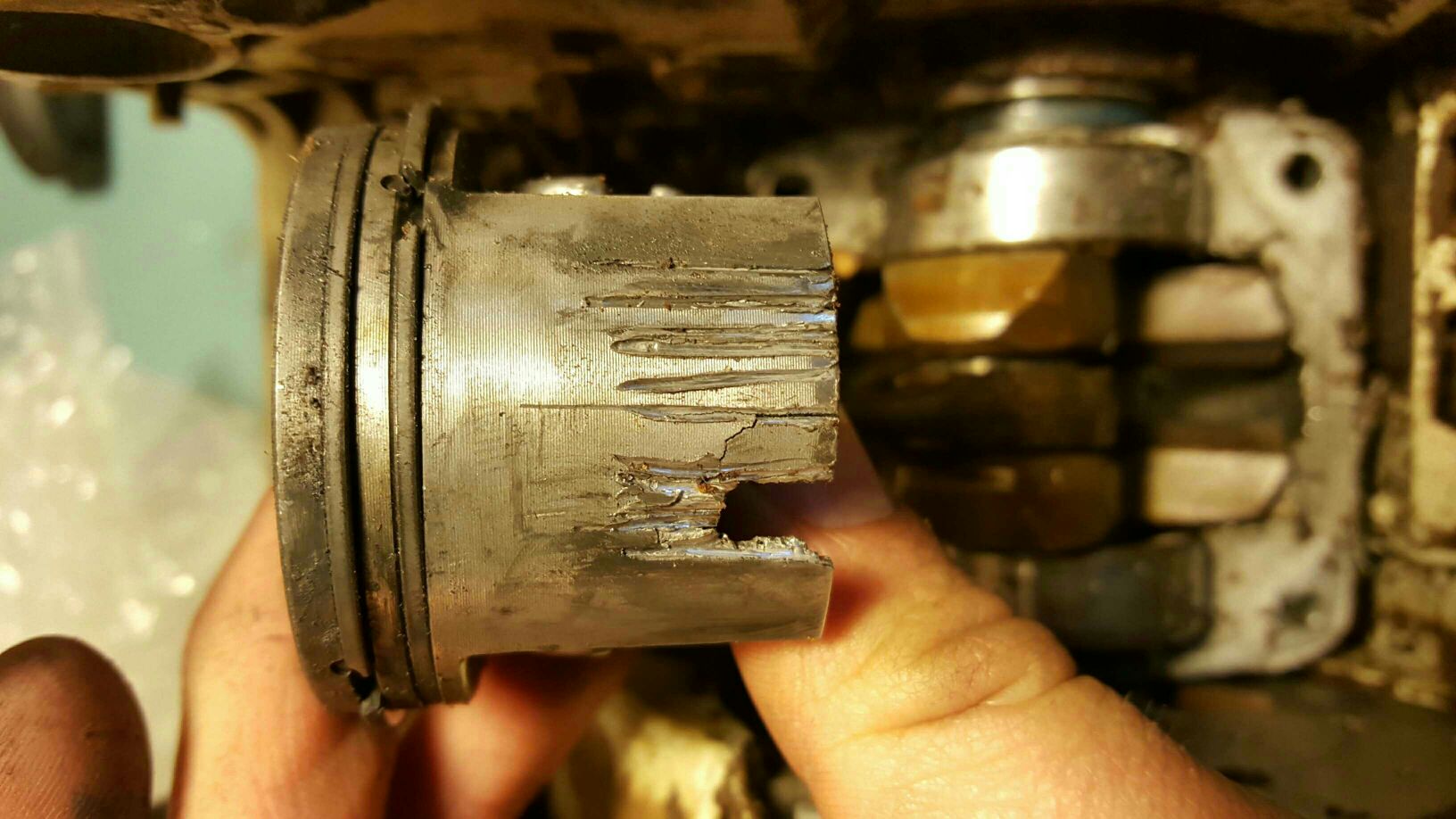

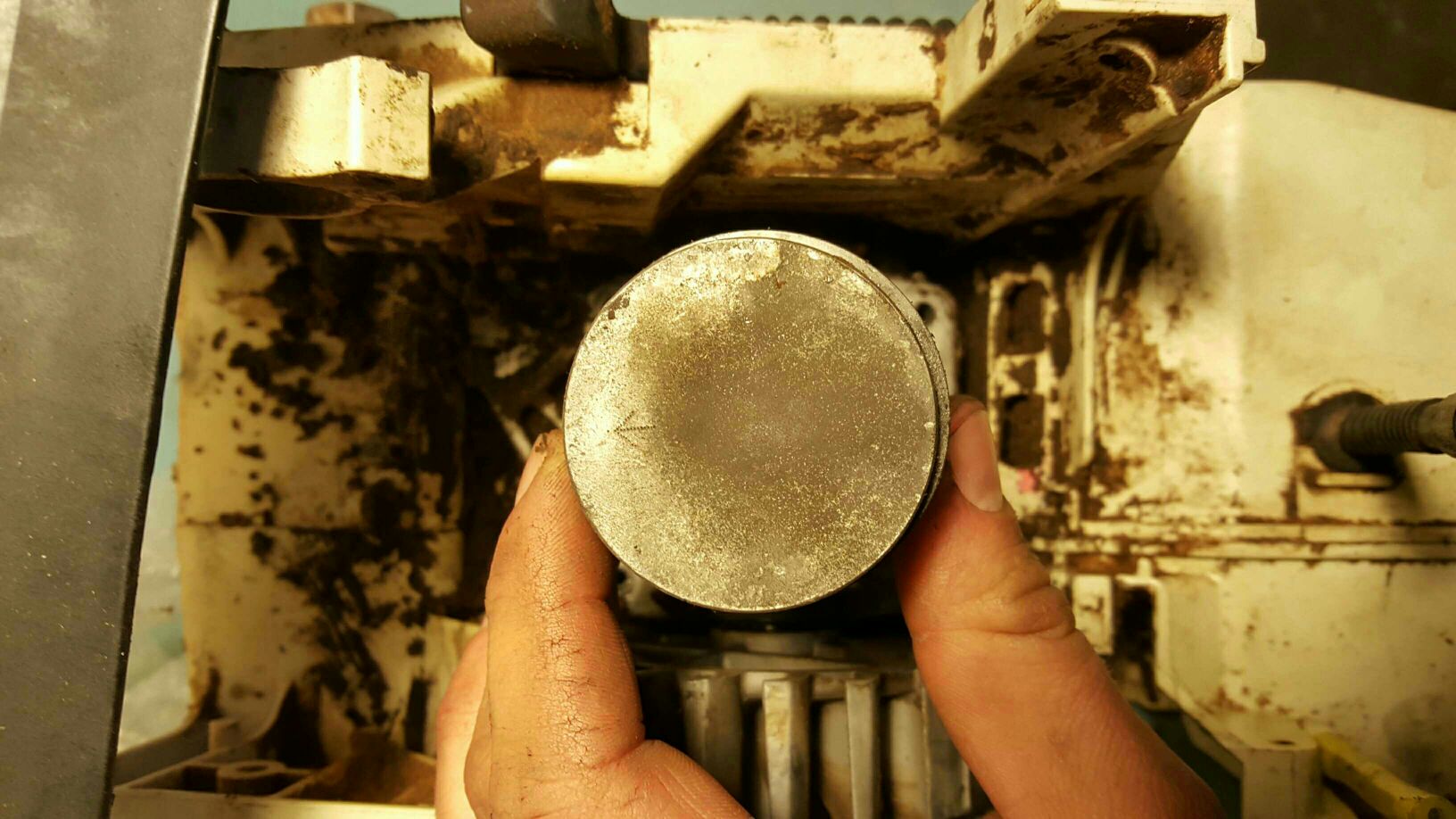

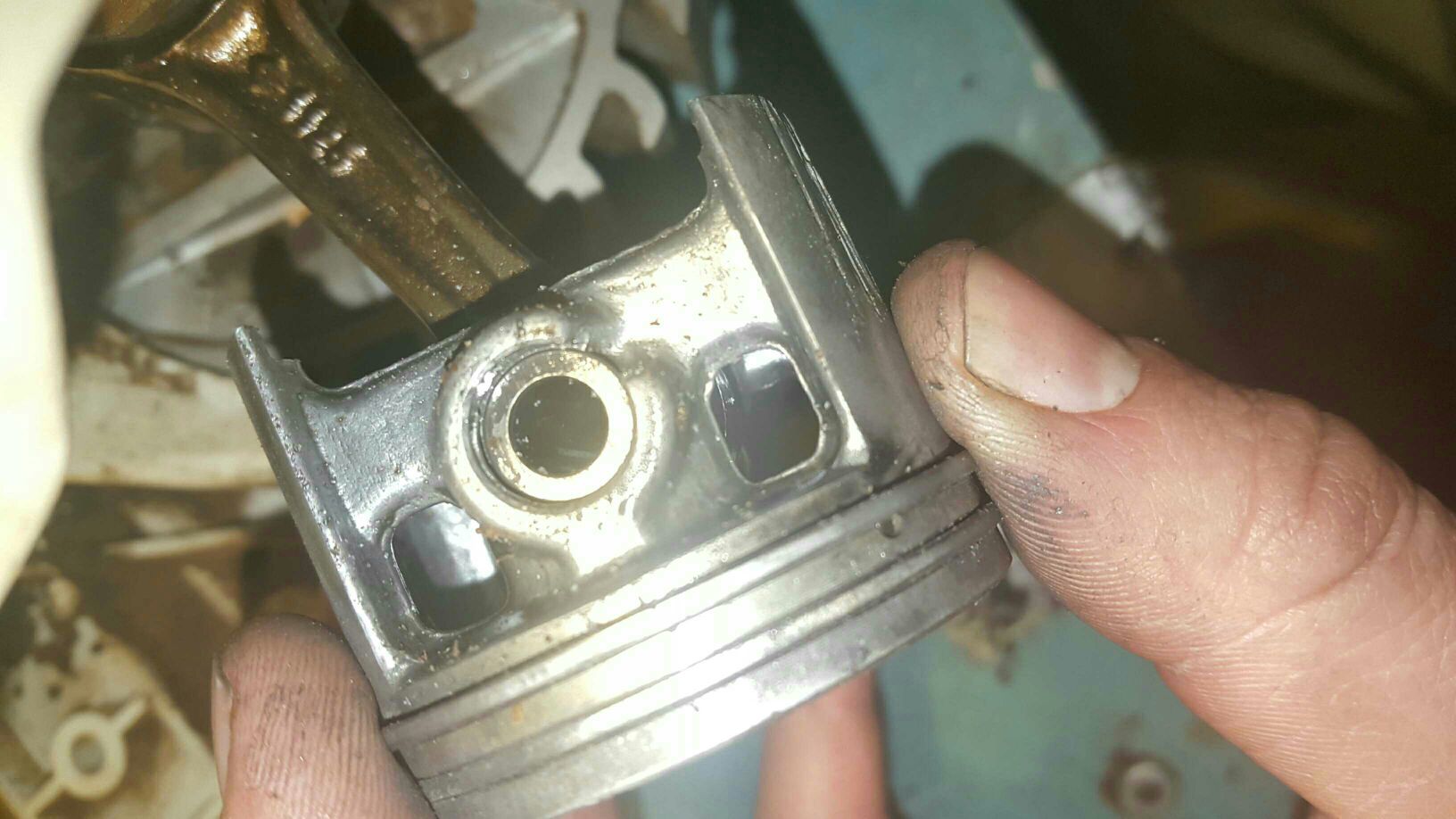

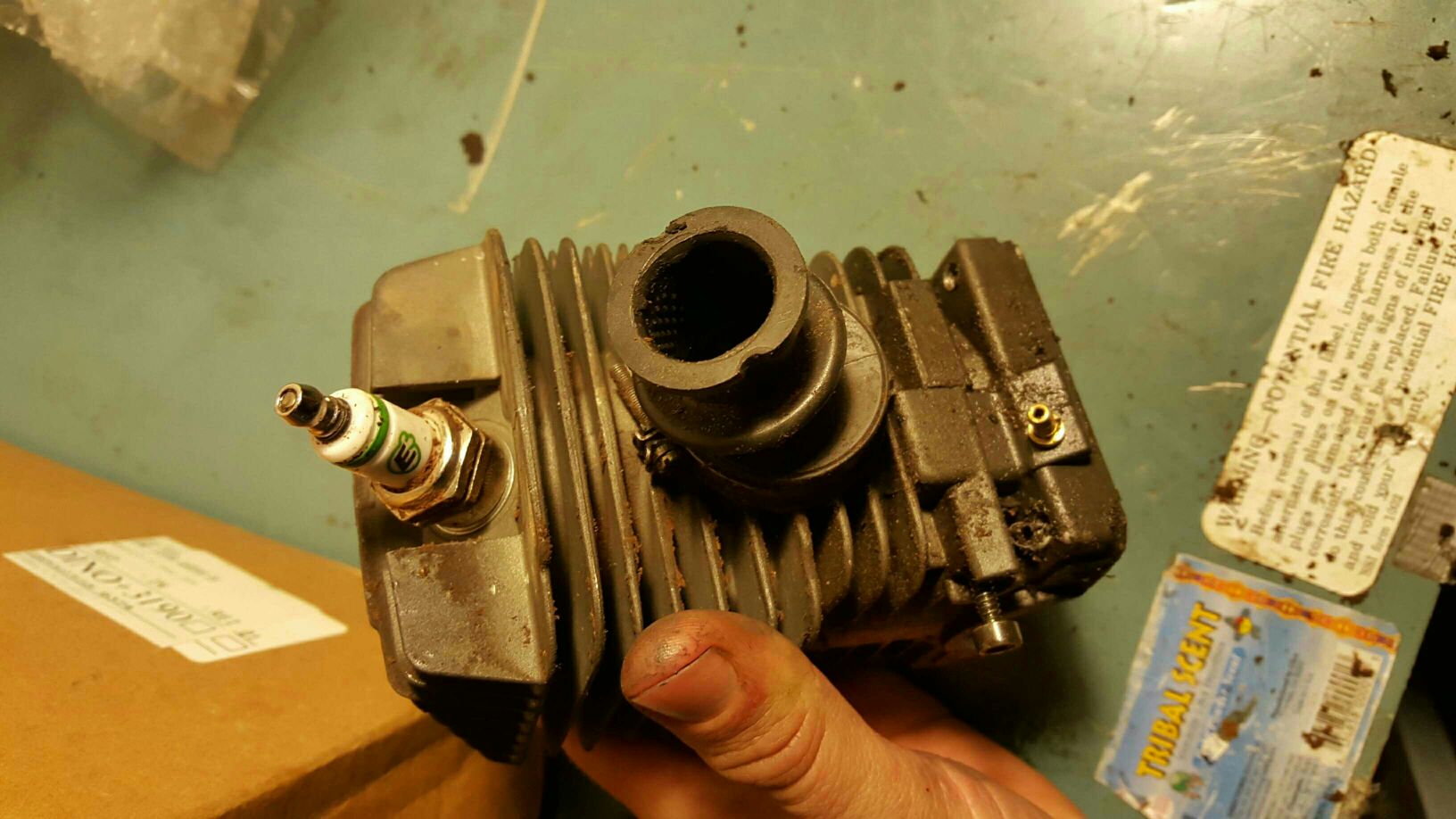

    Here's a few more picture, with a closer look I saw that the locator pins are both there for both rings, the rings were just turned so you couldn't see it. But I did notice a piece of metal in the bottom of the crank case so I pulled it out ( picture below) so I was looking to where it could go and it appears that It could be the clip that holds in the piston wrist pin on one side (also pictured below) what do you all think?

    Thanks, Allen

    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

    wildwest, MasterMech and Cut4fun like this.
  18. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    These photos didn't post

    [​IMG][​IMG]

  19. cnice_37

    cnice_37

    Joined:
    Oct 4, 2013
    Messages:
    2,445
    Likes Received:
    8,674
    Location:
    SE Mass
    Oh man, the old aftermarket wrist pin killer! Sure could be it, and you wouldn't be the first. Who makes the piston/ cylinder?

    I'd be digging deep into that crank before putting anything new back on that saw.

    Horkn, MasterMech and Allen Lee like this.
  20. Allen Lee

    Allen Lee

    Joined:
    Nov 28, 2015
    Messages:
    102
    Likes Received:
    308
    Location:
    California
    Not sure. There doesn't seem to be any names on the cylinder/ piston. I have a whole new motor for it, crank and all

    Horkn and Canadian border VT like this.
