    Hi guys! Sorry I've been away for so long - I explained a little in another thread. Anyway I wanted to share a few pics I took while building my new workbench.

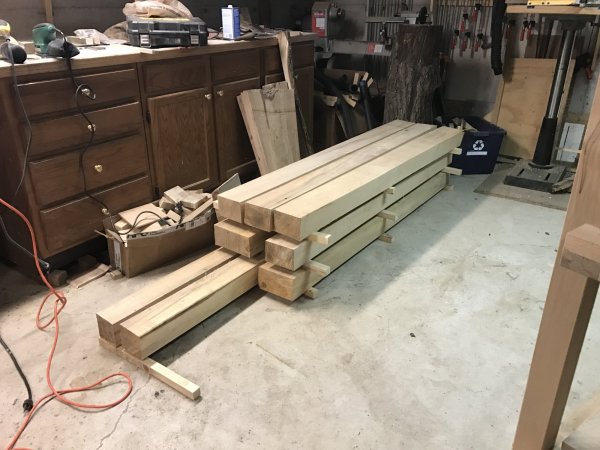

    The lumber is all maple that I sawed myself from trees that grew on my property. I took this pic Dec 31 - that pile became the top and the legs. I didn't realize at the time, but it all had curly figure. I almost felt bad for using it in my workbench. Almost. :D

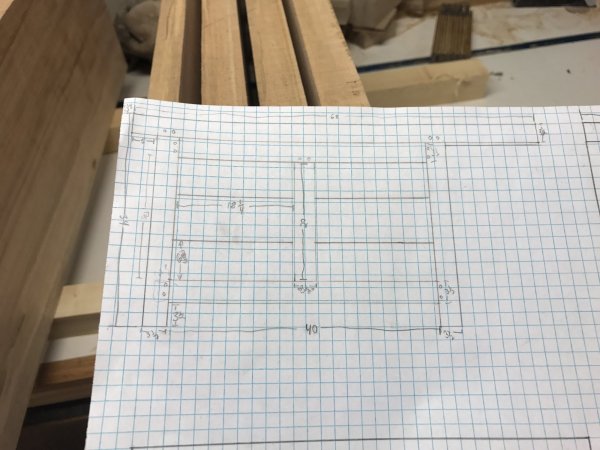

    My plans - its sort of a cross between Shaker, and modern euro style. The base is enclosed with panels for a (future) drawer box, but I traded the leg vise for a face vise. Drawbored mortise and tenon construction - though I didn't end up pinning the top in place yet because I plan to move it at some point when I build my new shop.

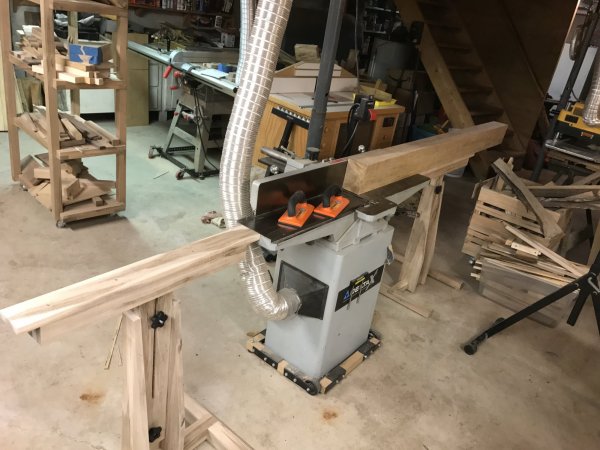

    But first I had to build these stands so I could pass the 4x6 x6' boards for the top over my jointer:

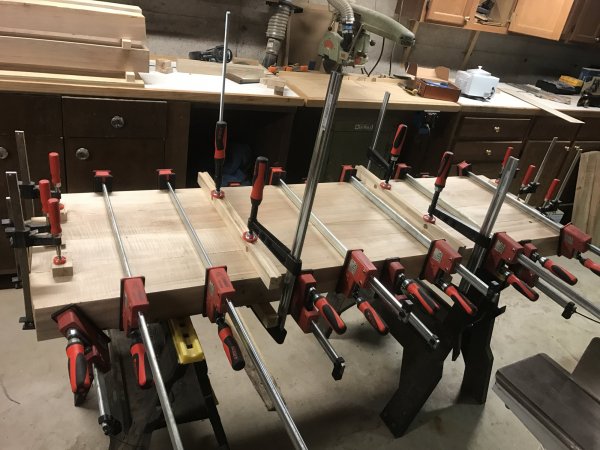

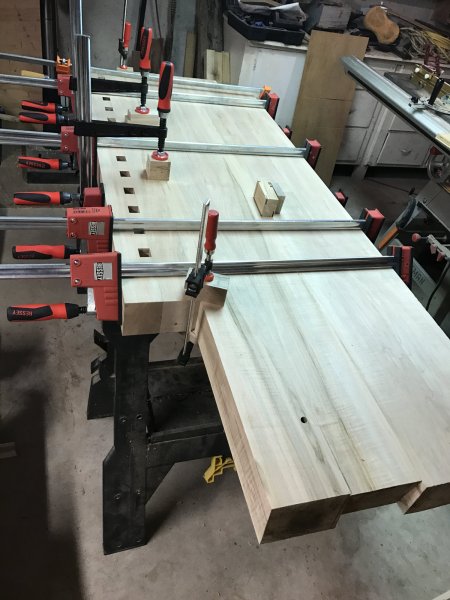

    Main section of the top:

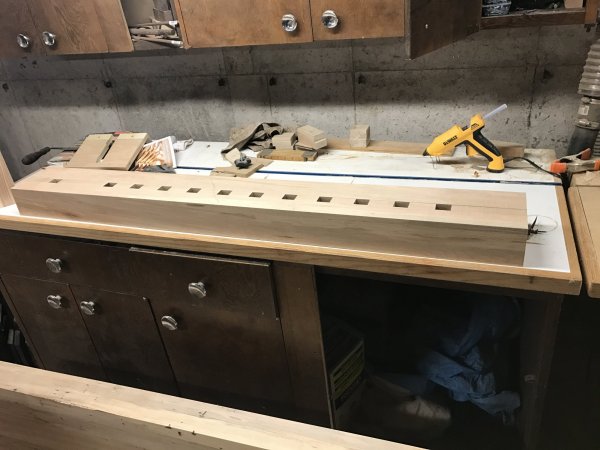

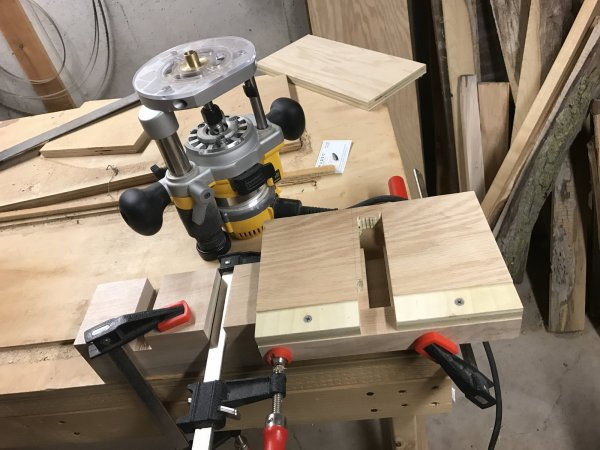

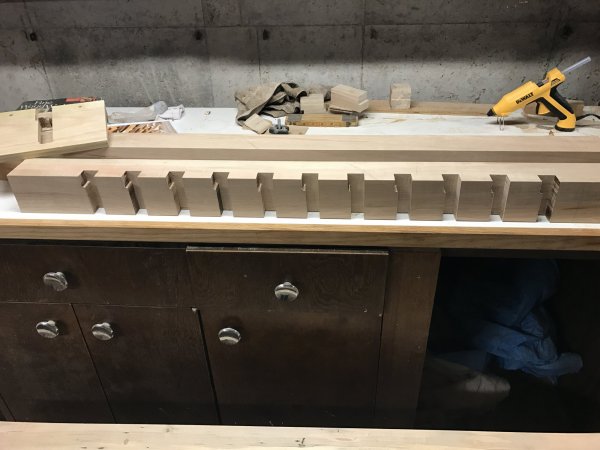

    I made a template for my router to help create the dog holes. But I wasted 95% of the wood with the radial arm and just used the router setup for final cleanup.





    blacksmith, Shurdel, fuelrod and 16 others like this.
  2. Shawn Curry

    Shawn Curry

    Joined:
    Jul 31, 2014
    Messages:
    3,755
    Likes Received:
    22,691
    Location:
    Western NY

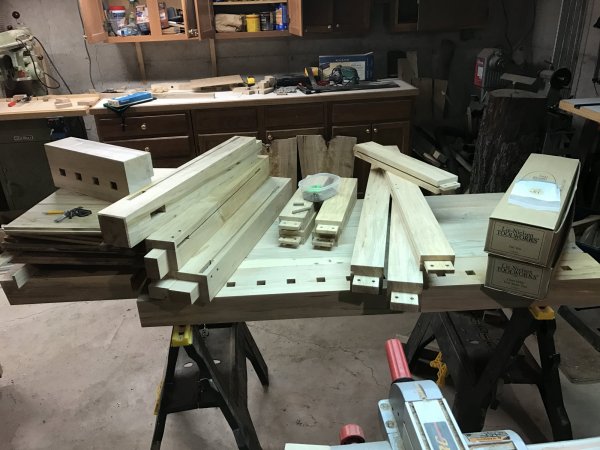

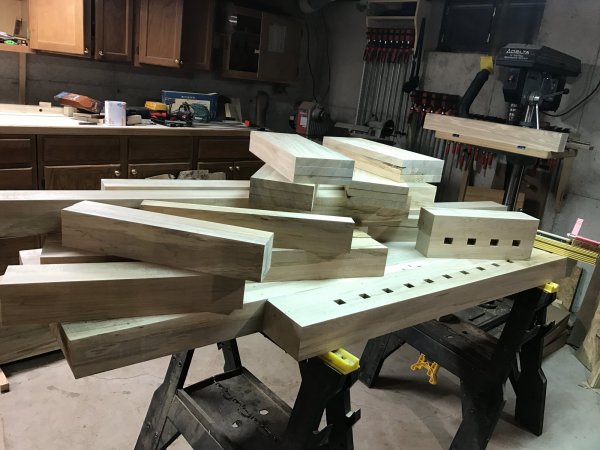

    Making some of the other parts:

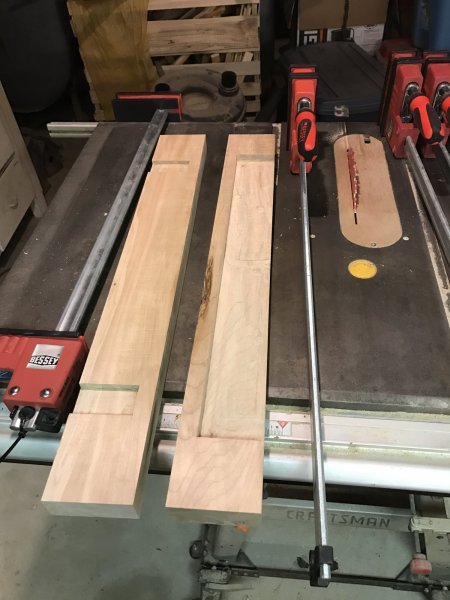

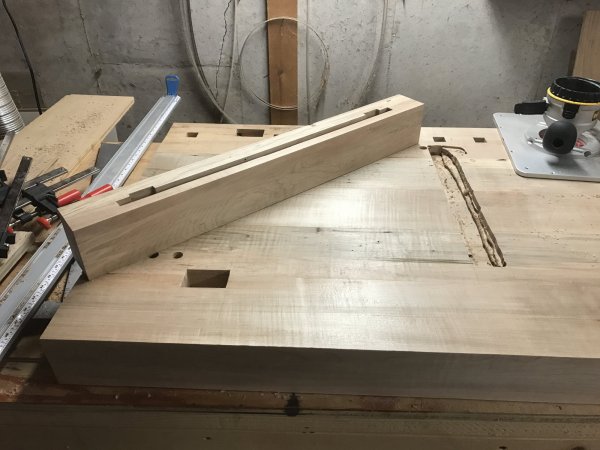

    IMG_0286.JPG IMG_0302.JPG IMG_0329.JPG IMG_0330.JPG IMG_0336.JPG

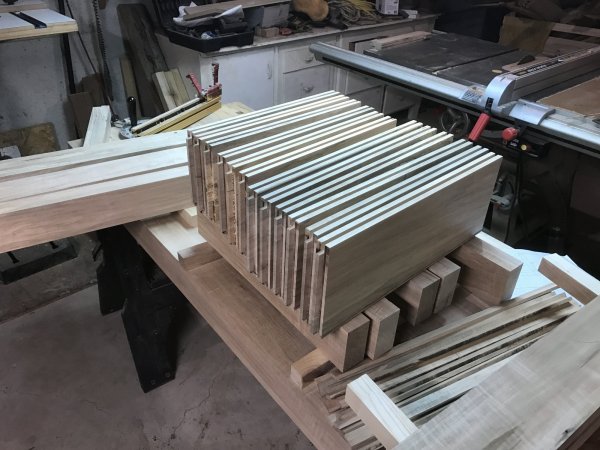

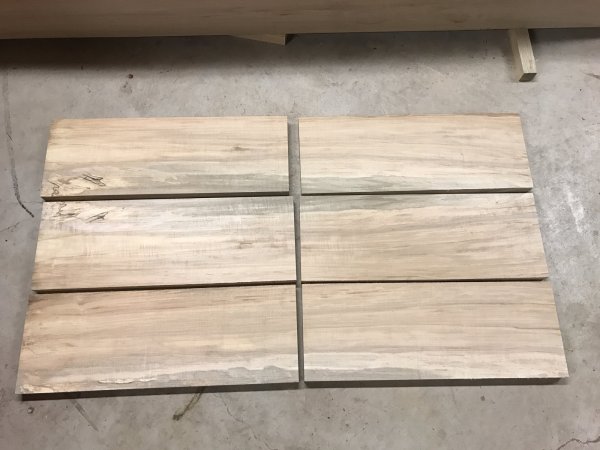

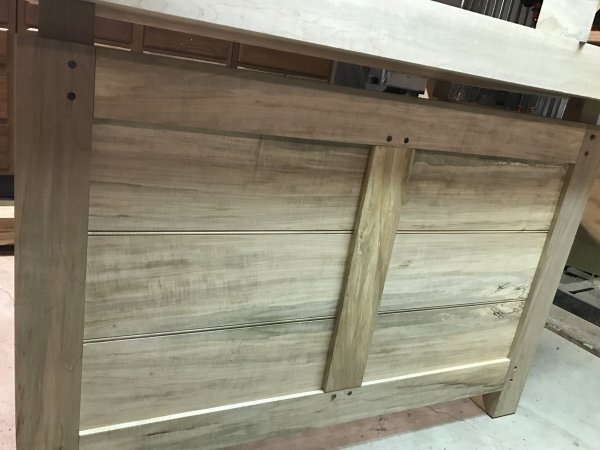

    I resawed the panels all from a single board so I could make a continuous match. They needed to be tongue and grooved, but I would have messed up the match by milling a tongue on the inside edges. So instead I milled grooves and made splines to connect them. Also made the splines from curly maple, cause why not?

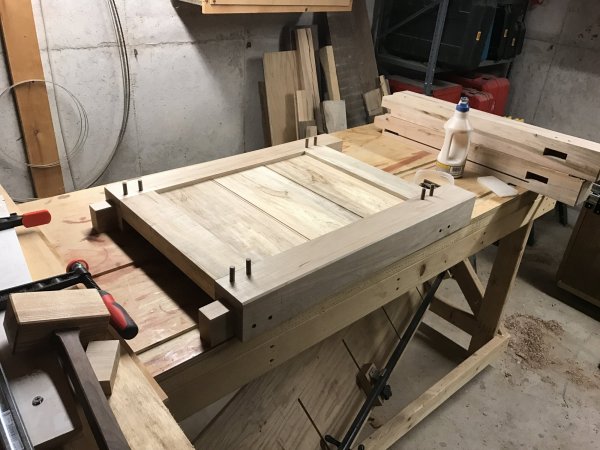

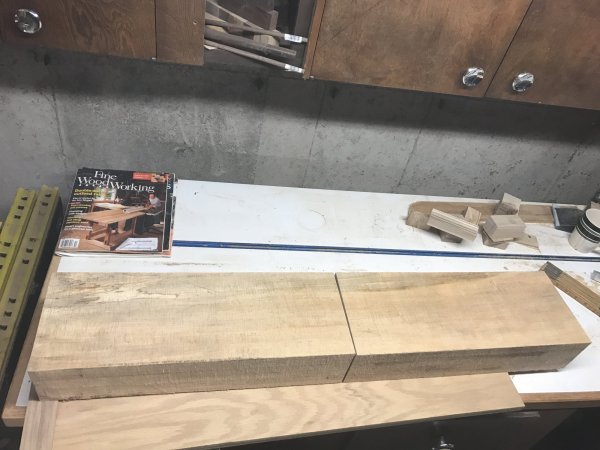

    IMG_0219.JPG IMG_0235.JPG IMG_0294.JPG

  3. Shawn Curry

    Shawn Curry

    Joined:
    Jul 31, 2014
    Messages:
    3,755
    Likes Received:
    22,691
    Location:
    Western NY

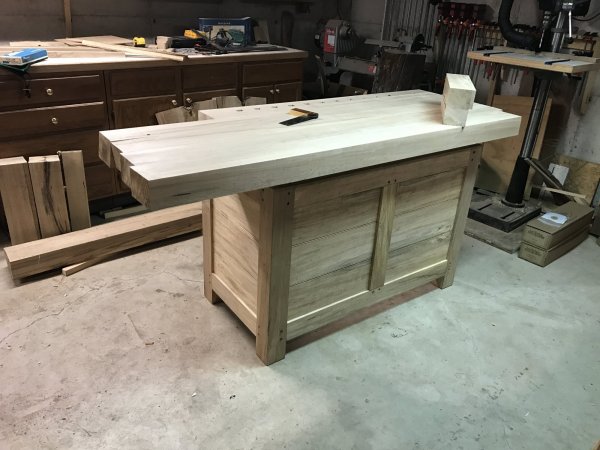

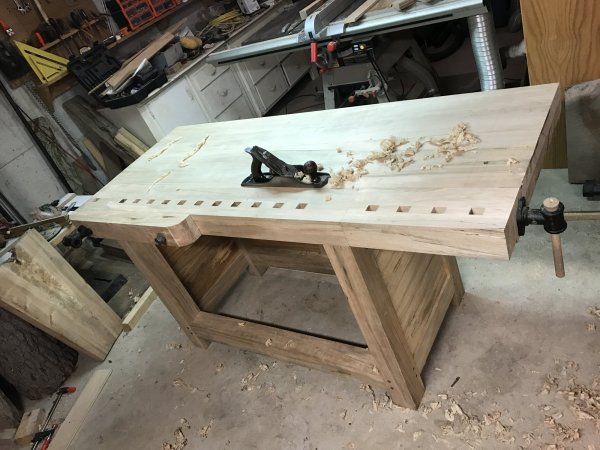

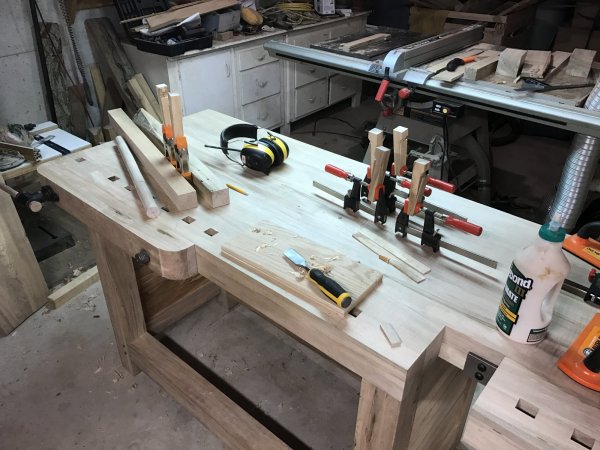

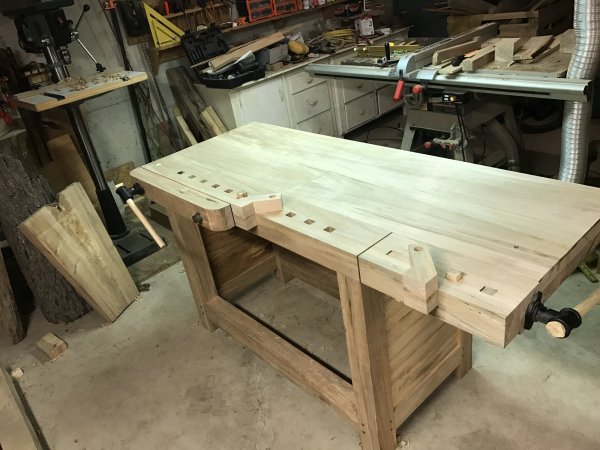

    Anyway, it's done. Mostly. I'll post some more pics later. Going to bed for now.


    Buzz Benton, Lucy, RCBS and 25 others like this.
  4. Jack Straw

    Jack Straw

    Joined:
    Oct 3, 2013
    Messages:
    8,365
    Likes Received:
    52,101
    Location:
    30 miles west of Albany Ny
    You sure are talented! That's beautiful. :thumbs:

    Thor, XXL, Eric VW and 3 others like this.
  5. bogieb

    bogieb

    Joined:
    Mar 30, 2015
    Messages:
    11,434
    Likes Received:
    69,448
    Location:
    New Hampshire
    Wow! That is super nice :dex:

    Thor, XXL, Eric VW and 2 others like this.
  6. bocefus78

    bocefus78

    Joined:
    Oct 14, 2013
    Messages:
    3,694
    Likes Received:
    19,835
    Location:
    Indiana
    What I would give for the talent you have.....Looking great.

    Thor, XXL, Eric VW and 4 others like this.
  7. MikeyB

    MikeyB

    Joined:
    Mar 22, 2017
    Messages:
    1,447
    Likes Received:
    8,388
    Location:
    Long Island NY
    Beautiful work.

    Thor, XXL, Eric VW and 2 others like this.
  8. Stinny

    Stinny

    Joined:
    Oct 29, 2013
    Messages:
    14,040
    Likes Received:
    60,058
    Location:
    western Maine
    Thor, XXL, Eric VW and 2 others like this.
  9. milleo

    milleo

    Joined:
    Oct 3, 2013
    Messages:
    2,317
    Likes Received:
    9,211
    Location:
    Maine
    Nice...:thumbs:

    Thor, XXL, Eric VW and 1 other person like this.
  10. Minnesota Marty

    Minnesota Marty

    Joined:
    Dec 6, 2014
    Messages:
    721
    Likes Received:
    2,497
    Location:
    Eastern Minnesota
    Shawn,
    Looks good. I will be building my bench in a few months when I retire and have more time. I intend to use laminated veneer lumber (LVL). Just have alot of that stuff left over from jobs and it will be a good way to burn it up.

    Marty

    Thor, papadave, fishingpol and 3 others like this.
  11. Shawn Curry

    Shawn Curry

    Joined:
    Jul 31, 2014
    Messages:
    3,755
    Likes Received:
    22,691
    Location:
    Western NY
    Thanks Marty. It was a lot of time and work but so worth it. It's a game changer for sure. The kind of thing where you'll wonder how you ever managed to get by without it. :)

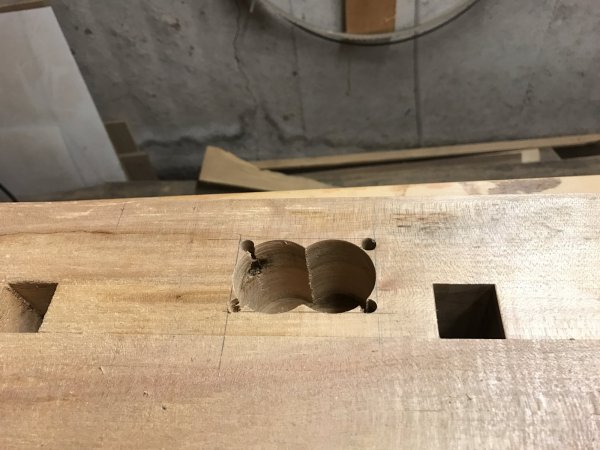

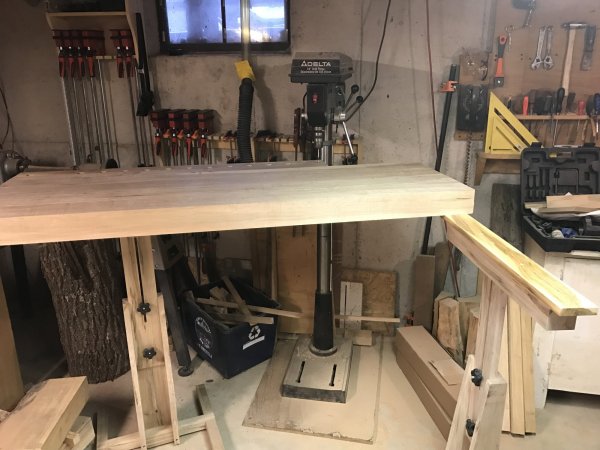

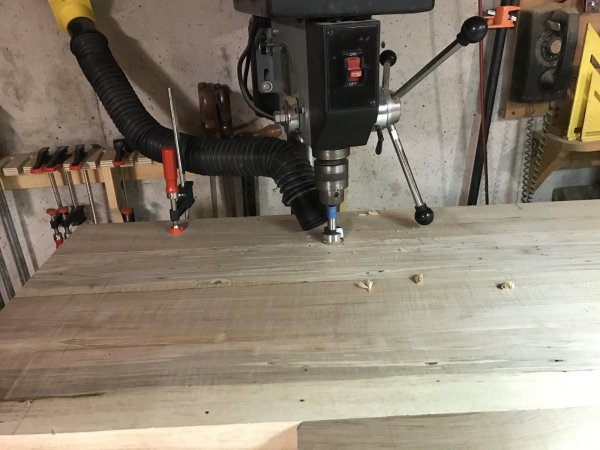

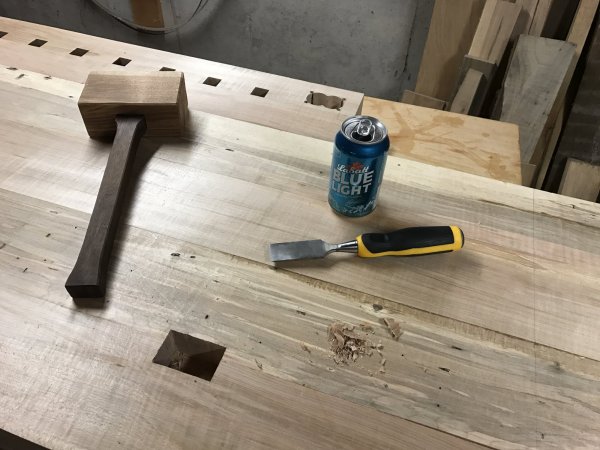

    Well here's the rest of the pics. The stands are adjustable and they gave me enough support to get the top under the drill press.

    IMG_0322.JPG IMG_0326.JPG IMG_0328.JPG IMG_0327.JPG

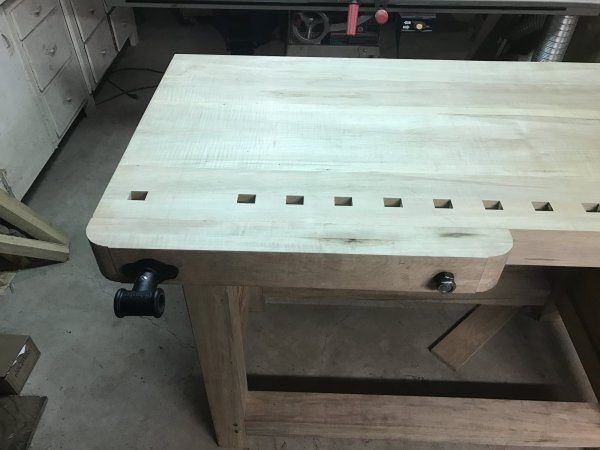

    I decided to use Lie-Nielsen vise hardware, because I liked the all-wooden jaws and I had a bit of wood to show off. But it was probably the most complicated hardware to install by far.

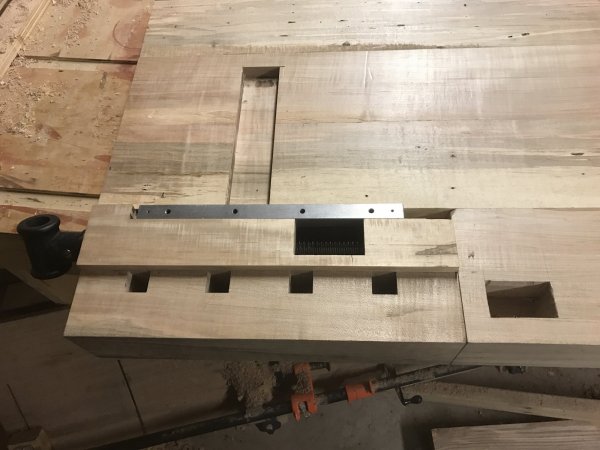

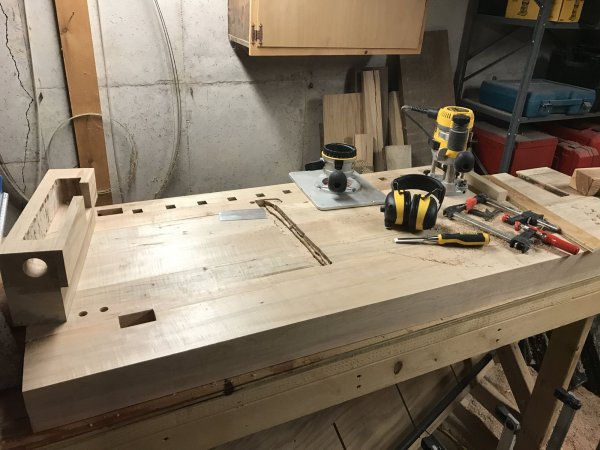

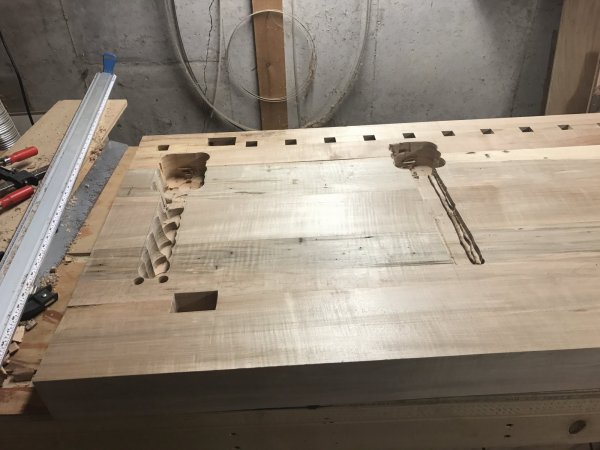

    IMG_0331.JPG IMG_0337.JPG IMG_0344.JPG IMG_0346.JPG

  12. Eric VW

    Eric VW Moderator

    Joined:
    Jan 6, 2015
    Messages:
    23,560
    Likes Received:
    133,124
    Location:
    US
    Outstanding, brother!:salute:
    Now go to bed!:whistle:
    :handshake:

    Thor, XXL and Shawn Curry like this.
  13. Shawn Curry

    Shawn Curry

    Joined:
    Jul 31, 2014
    Messages:
    3,755
    Likes Received:
    22,691
    Location:
    Western NY
  14. Gasifier

    Gasifier

    Joined:
    Oct 3, 2013
    Messages:
    19,939
    Likes Received:
    98,891
    Location:
    St. Lawrence River Valley, NY
    Wow. A craftsmen. Nice work man!

    Thor, Boogeyman, Eric VW and 3 others like this.
  15. Stinny

    Stinny

    Joined:
    Oct 29, 2013
    Messages:
    14,040
    Likes Received:
    60,058
    Location:
    western Maine
    x2

  16. fishingpol

    fishingpol

    Joined:
    Oct 3, 2013
    Messages:
    6,502
    Likes Received:
    39,620
    Location:
    Merrimack Valley, Ma.
    Well done and nice clean work. Any drying issues with the maple with twisting or deep checking? Are you going to put a finish on it?

    That's great that you are able to mill stock that size. There would be quite some added cost if it had to be purchased from hardwood supplier. That is if they even had that dimension in stock. Probably a custom mill order.

    Thor, thistle, Eric VW and 2 others like this.
  17. JIMBETHYNAME

    JIMBETHYNAME

    Joined:
    Jan 17, 2016
    Messages:
    588
    Likes Received:
    2,131
    Location:
    Poughkeepsie ny
  18. bogieb

    bogieb

    Joined:
    Mar 30, 2015
    Messages:
    11,434
    Likes Received:
    69,448
    Location:
    New Hampshire

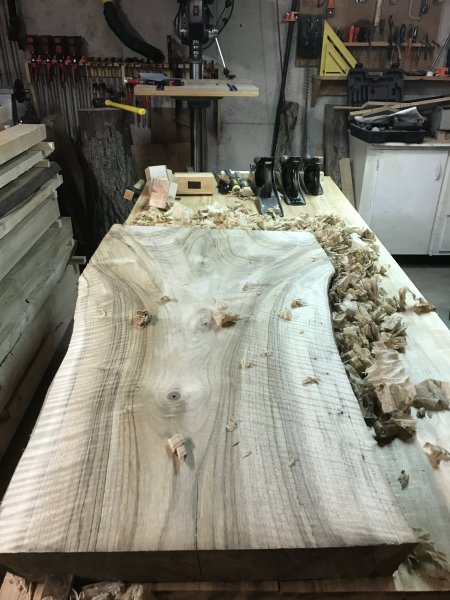

    That last pic is of some awesome grain!

    Thor, Eric VW and Shawn Curry like this.
  19. Shawn Curry

    Shawn Curry

    Joined:
    Jul 31, 2014
    Messages:
    3,755
    Likes Received:
    22,691
    Location:
    Western NY
    Nope, it actually behaved quite nicely. The only stuff that really moved at all was the panels, and it wasn't very much. And that didn't worry me one bit because I knew they were going to be constrained by joinery on all 4 sides.

    I applied 2 coats of some "tung oil" which I'm pretty sure was mostly linseed actually. Should have known based on the price. Not that I'm complaining - I like linseed too.

    I'm pretty confident that being in total control of the milling process from start to finish led to better results in all phases. The 4x6's for the top were all center cut from the same log and I was able to book match them when I assembled it. The only way you're going to be able to do something like that is if you own the logs.

    blacksmith, Thor, brenndatomu and 7 others like this.
  20. Minnesota Marty

    Minnesota Marty

    Joined:
    Dec 6, 2014
    Messages:
    721
    Likes Received:
    2,497
    Location:
    Eastern Minnesota

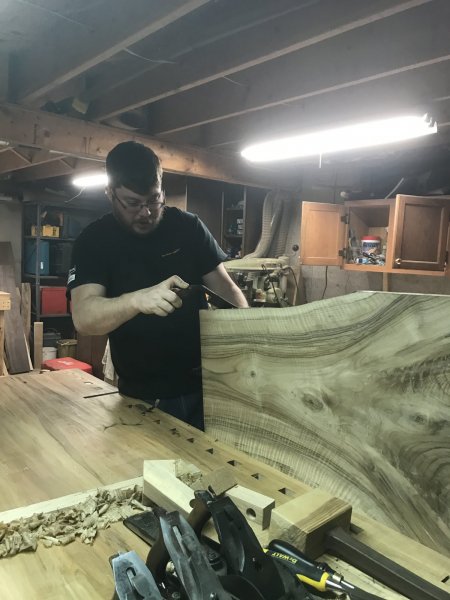

    It looks like the Lie-Nielsen vise hardware is working pretty good. The photo with the live edge slab that you are working with the draw knife, that has some holding power doing that. And it doesn't appear that you have the slab supported on the back end.
