Fisher 3 piece top stove?

Discussion in 'Non-EPA Woodstoves and Fireplaces' started by Unicorn1, Sep 4, 2017.

  1. Unicorn1

    Unicorn1

    Joined:
    Oct 31, 2013
    Messages:
    2,282
    Likes Received:
    8,917
    Location:
    Amarillo, TX

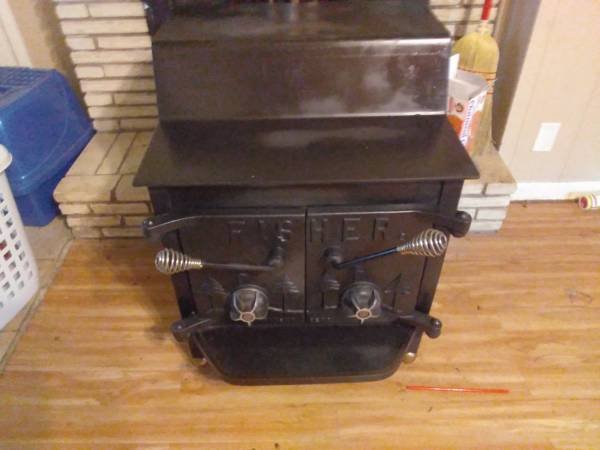

    Is this an early Fisher 3 piece top stove?

    fisher 4.jpg

    WeldrDave and wildwest like this.
  2. justdraftn

    justdraftn

    Joined:
    Aug 7, 2017
    Messages:
    1,032
    Likes Received:
    7,480
    Location:
    On the road
    That is. Do you know which model?

    When I lived in Alaska, we had a Fisher Mama Bear.
    Looked exactly like that. It was a great stove.
    I liked the two air intakes. I burned the fire from one side to the other and back.
    Doors came off real easy, so you could have an open fire.

    We cooked on it.
    Put a pot on in the morning, it was like a slow cooker.
    Heated water for baths.
    Cool picture. Really brings back some good memories.

    wildwest likes this.
  3. spotted owl

    spotted owl

    Joined:
    Sep 13, 2015
    Messages:
    278
    Likes Received:
    2,111
    Location:
    PNW
    Looks like an early bent top. Before they settled on the more comon angle. The early bends were rather steep like this. A side picture will tell you for sure.
    I'm sure a few 3 pieces were built, but I though all the grand parents were bent top.



    Owl

    WeldrDave and wildwest like this.
  4. wildwest

    wildwest Moderator

    Joined:
    Jul 21, 2014
    Messages:
    28,159
    Likes Received:
    128,138
    Location:
    Wyoming high plains
  5. WeldrDave

    WeldrDave Military Outpost Moderator

    Joined:
    Oct 8, 2013
    Messages:
    9,278
    Likes Received:
    48,415
    Location:
    The Communist Socialist Republic of New Jersey
    Sorry I'm late! :confused: Somehow I missed this... Is the top "bent one piece" or welded together? I can't quite make out the pic... It looks like it's bent, if it was three piece the top would be overhanging the 60 degree angle and welded underneath and the lower plate would be welded to that. It looks like the "standard Grandma"

    Last edited: Nov 17, 2017
  6. Unicorn1

    Unicorn1

    Joined:
    Oct 31, 2013
    Messages:
    2,282
    Likes Received:
    8,917
    Location:
    Amarillo, TX
    Headed to Springfield, OR in January so I'll scour CL for a week for Fisher stoves.:)

  7. WeldrDave

    WeldrDave Military Outpost Moderator

    Joined:
    Oct 8, 2013
    Messages:
    9,278
    Likes Received:
    48,415
    Location:
    The Communist Socialist Republic of New Jersey
    I actually found another 1976 bi-centennial star addition I'm going to buy next week. :cool: They are getting real scarce. :binoculars:

  8. Unicorn1

    Unicorn1

    Joined:
    Oct 31, 2013
    Messages:
    2,282
    Likes Received:
    8,917
    Location:
    Amarillo, TX
  9. WeldrDave

    WeldrDave Military Outpost Moderator

    Joined:
    Oct 8, 2013
    Messages:
    9,278
    Likes Received:
    48,415
    Location:
    The Communist Socialist Republic of New Jersey
    That "white" on the doors and top is saying it was "VERY HOT" at one time or two... :eek: It'd make a good garage unit or donation to a hunting cabin or such! :cool:

  10. Coaly

    Coaly

    Joined:
    Jan 3, 2016
    Messages:
    168
    Likes Received:
    568
    Location:
    NE PA
    The original poster pic is a much newer stove. Notice the small trees compared to the first style in '76 below. It also has newer spring handles and the very last draft caps with 5 fins. None of that existed during the 3 piece days. The only way you'll find double doors with 3 piece tops is fabricators without brakes large enough to bend them for the wider stoves. 3 piece tops were dropped long before double doors started in '76. Mostly found on the first single door stoves with pipe cap dampers.

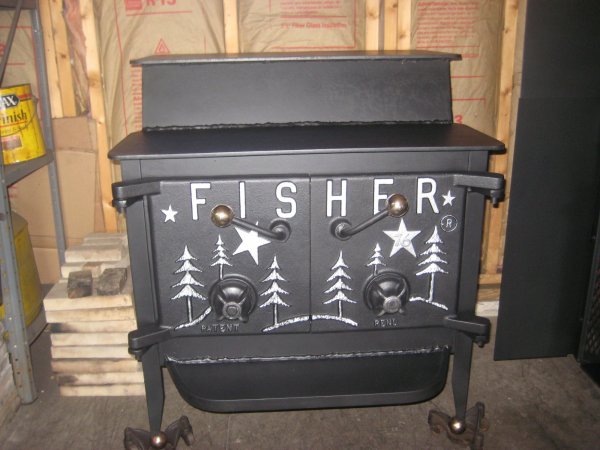

    Here is my '76 Grandpa with 3 piece top;
    76 Grandpa 3 piece top.JPG Notice the horizontal flat pieces overhang all the way around
    and the center step piece is only as wide as the stove body;

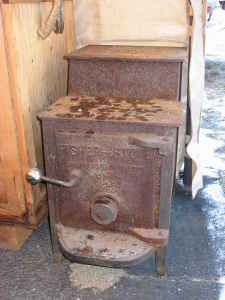

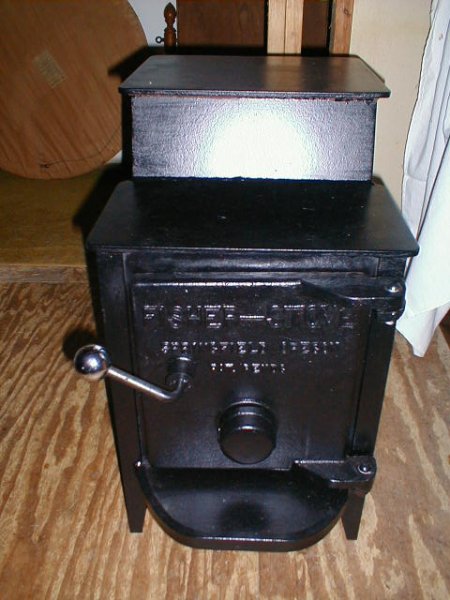

    3 piece Baby Bear before and after;

    Baby Bear Idaho 1.jpg Baby Bear Completed.JPG

    Last edited: Dec 1, 2017
    WeldrDave likes this.
  11. Coaly

    Coaly

    Joined:
    Jan 3, 2016
    Messages:
    168
    Likes Received:
    568
    Location:
    NE PA

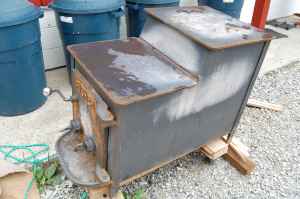

    Here's a 3 piece Papa that got hot. No damage done, just the paint.

    Hot Papa Spokane Wash..jpg Actually Bob Fisher's own stove had a few white spots as well as the pipe, but he burned a lot of Fir.

    Born2Burn likes this.
